Fig. 09.2 (Dimmer-Controlled Lighting: Part 1)
Fig. 09.2 (Dimmer-Controlled Lighting: Part 1)

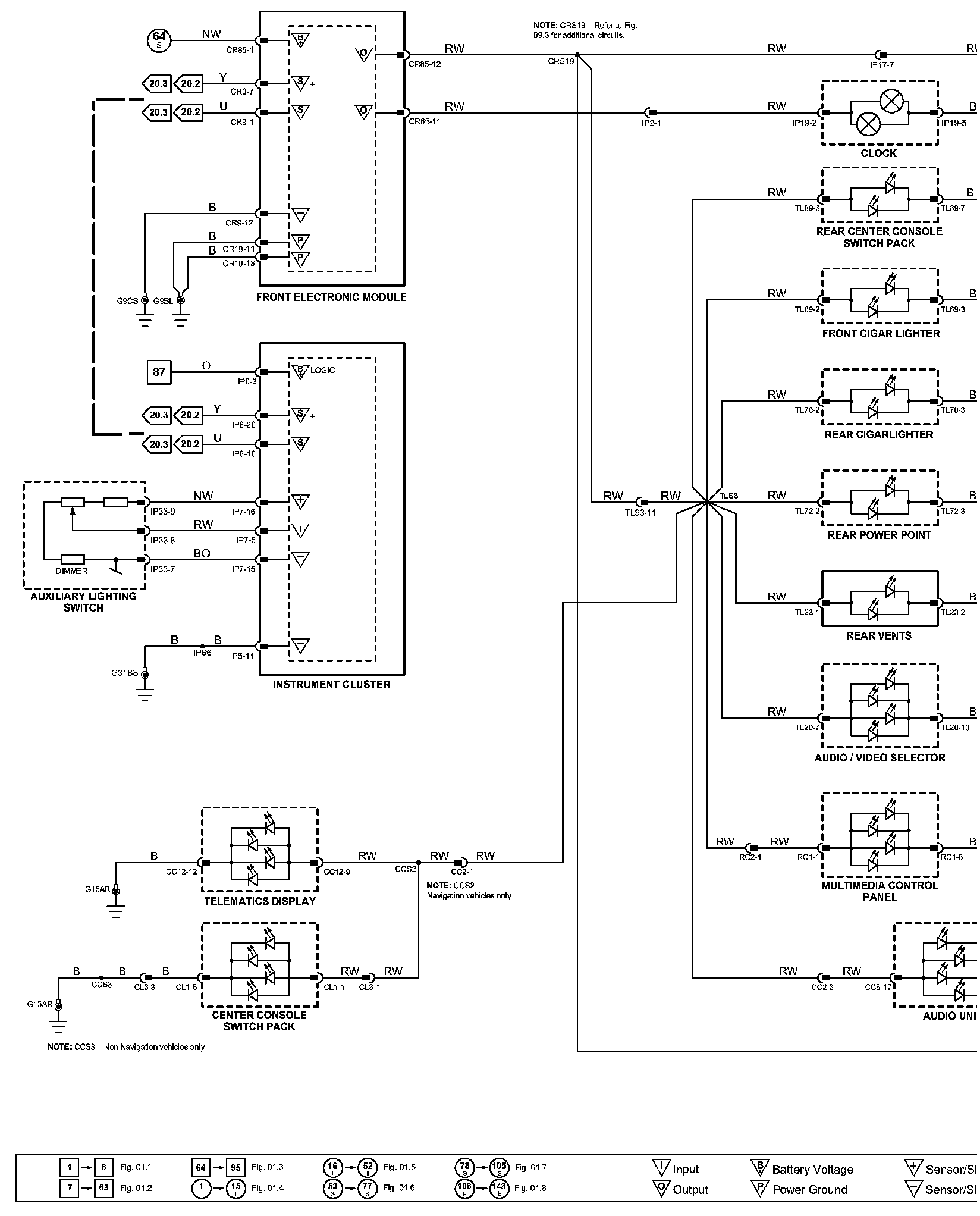

�NNSDiagram Figure 09.2:

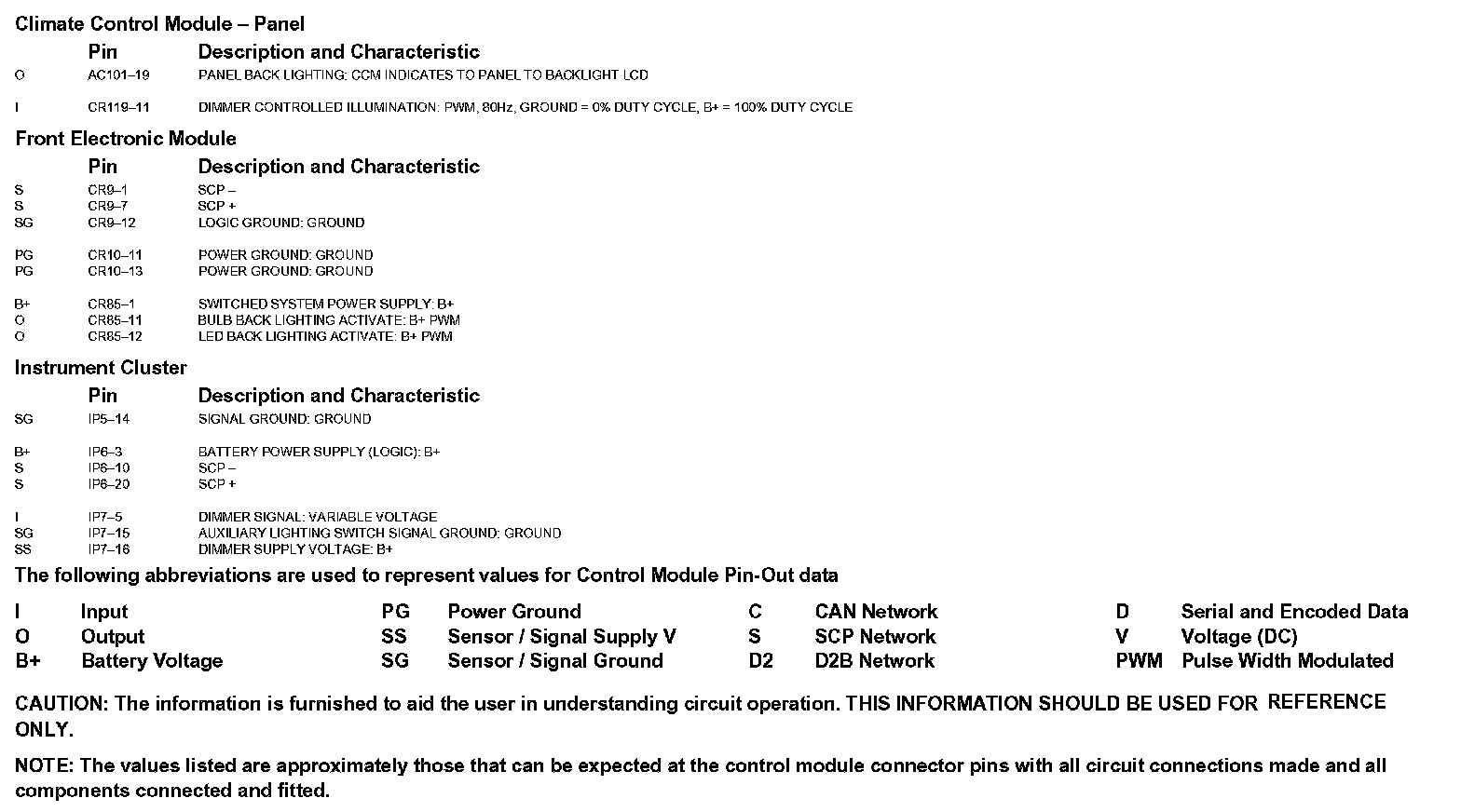

Diagram Data Sheet 09.2 (Part-1):

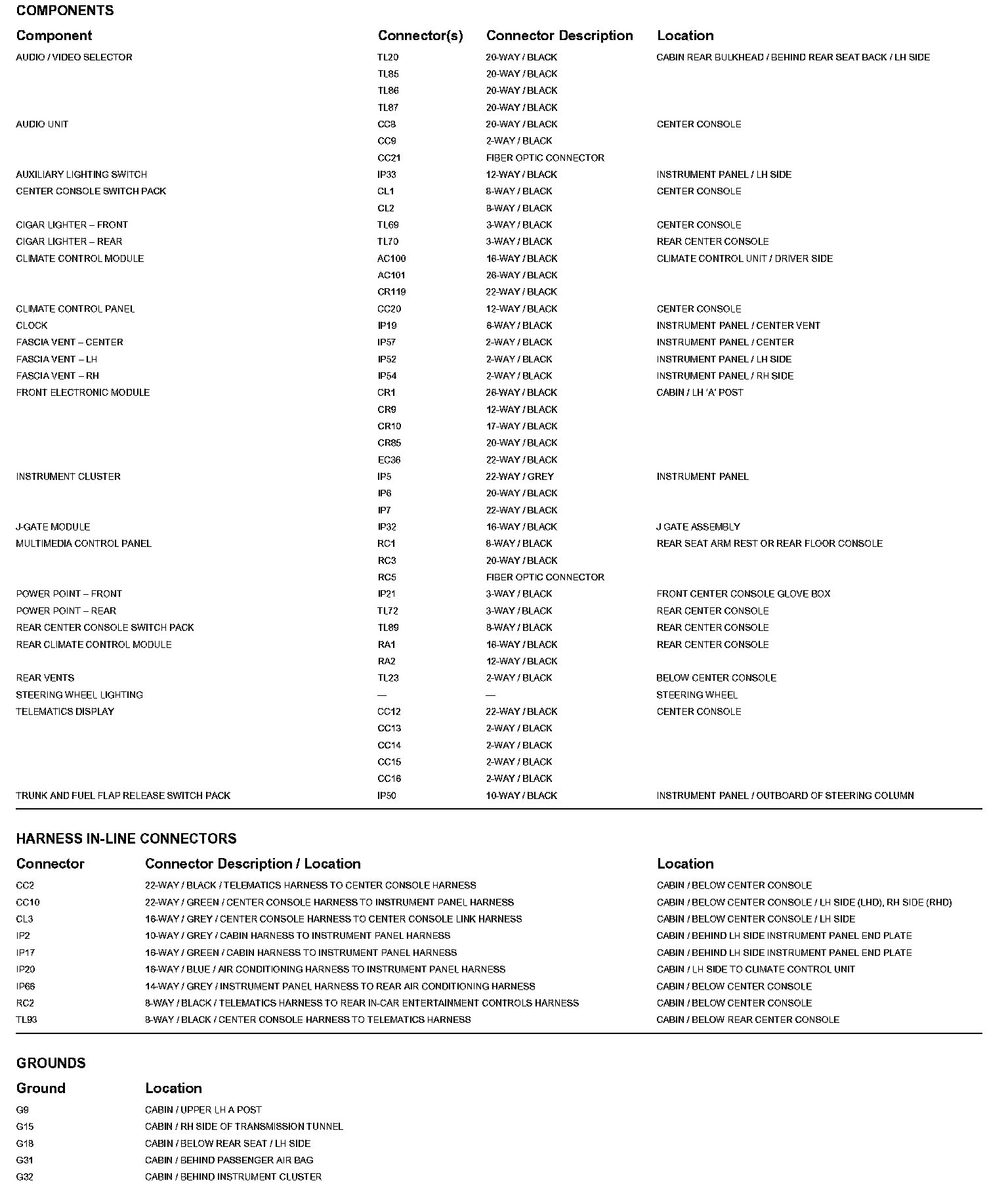

Diagram Data Sheet 09.2 (Part-2):
