Fig. 16.1 (Telephone System)

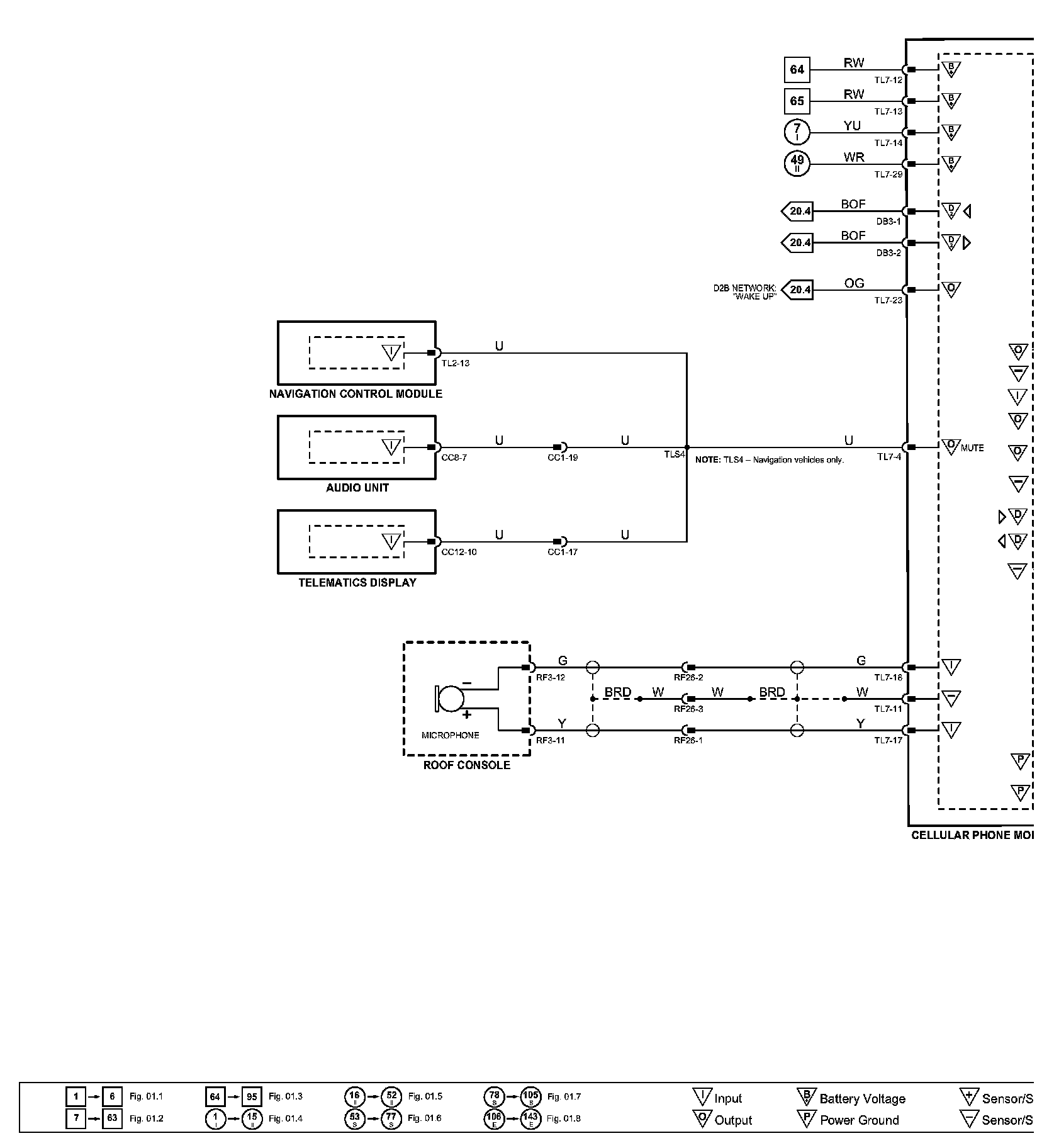

�w>Diagram Figure 16.1:

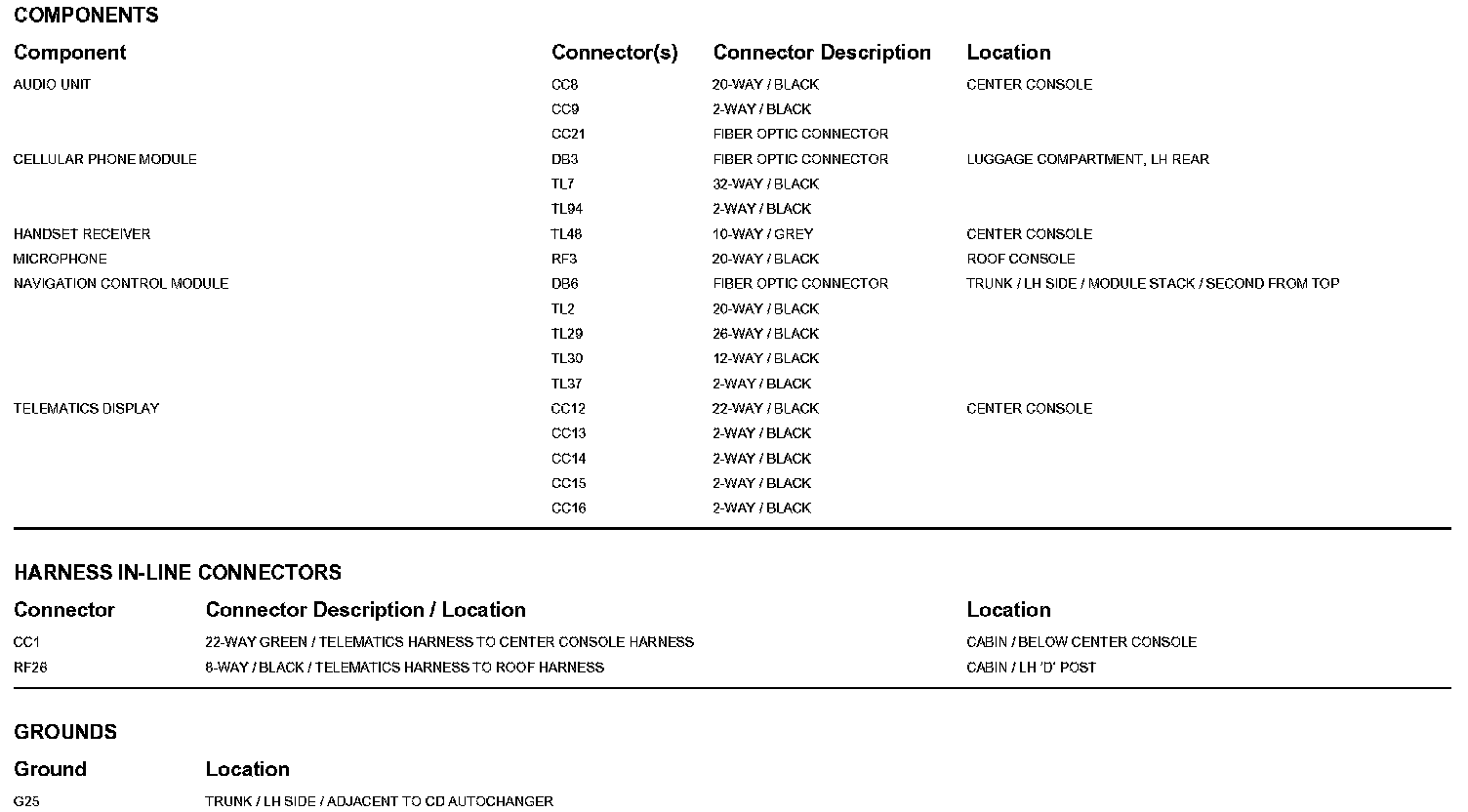

Diagram Data Sheet 16.1 (Part-1):

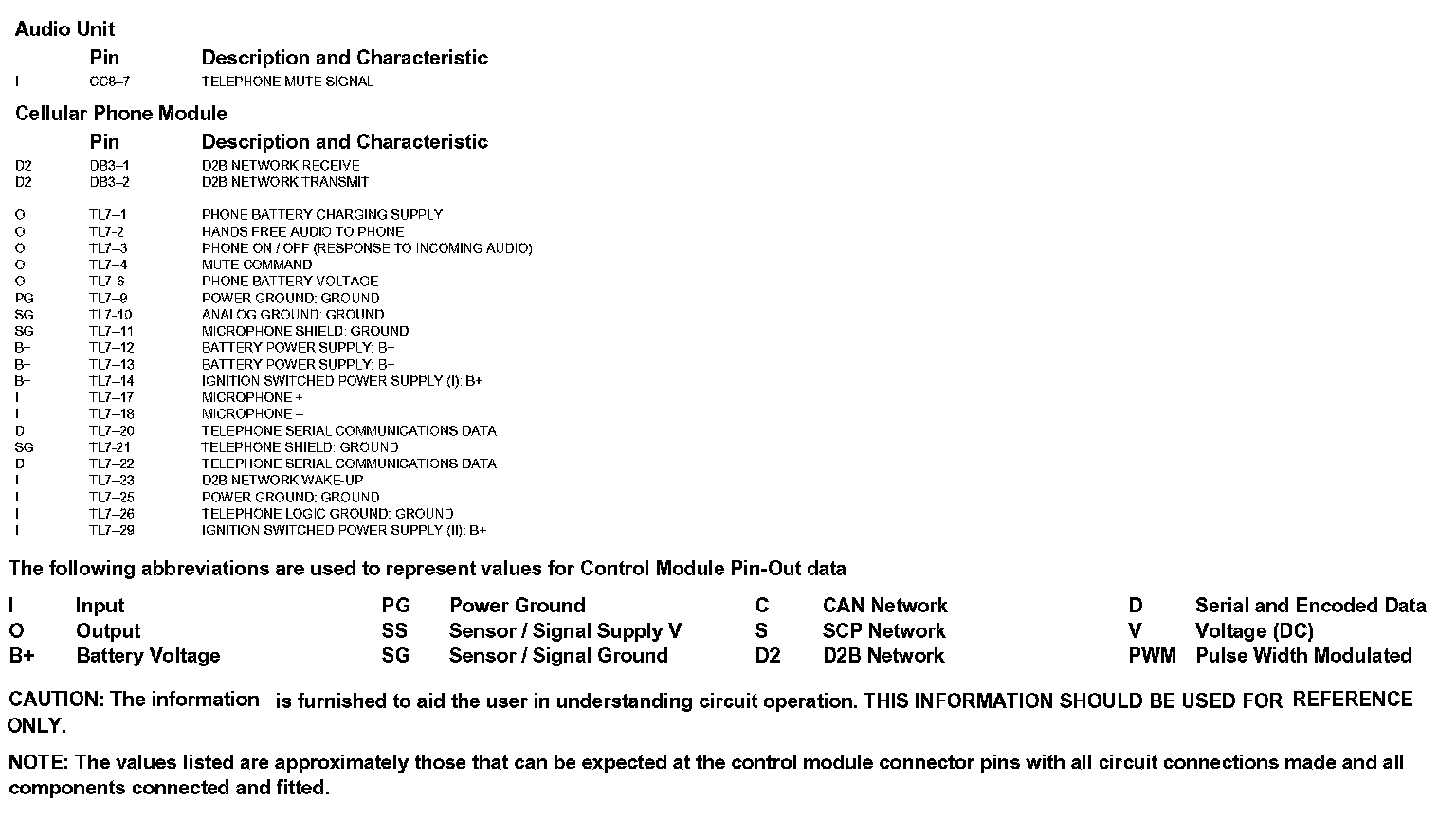

Diagram Data Sheet 16.1 (Part-2):
