Multiple Junction Connector: Locations

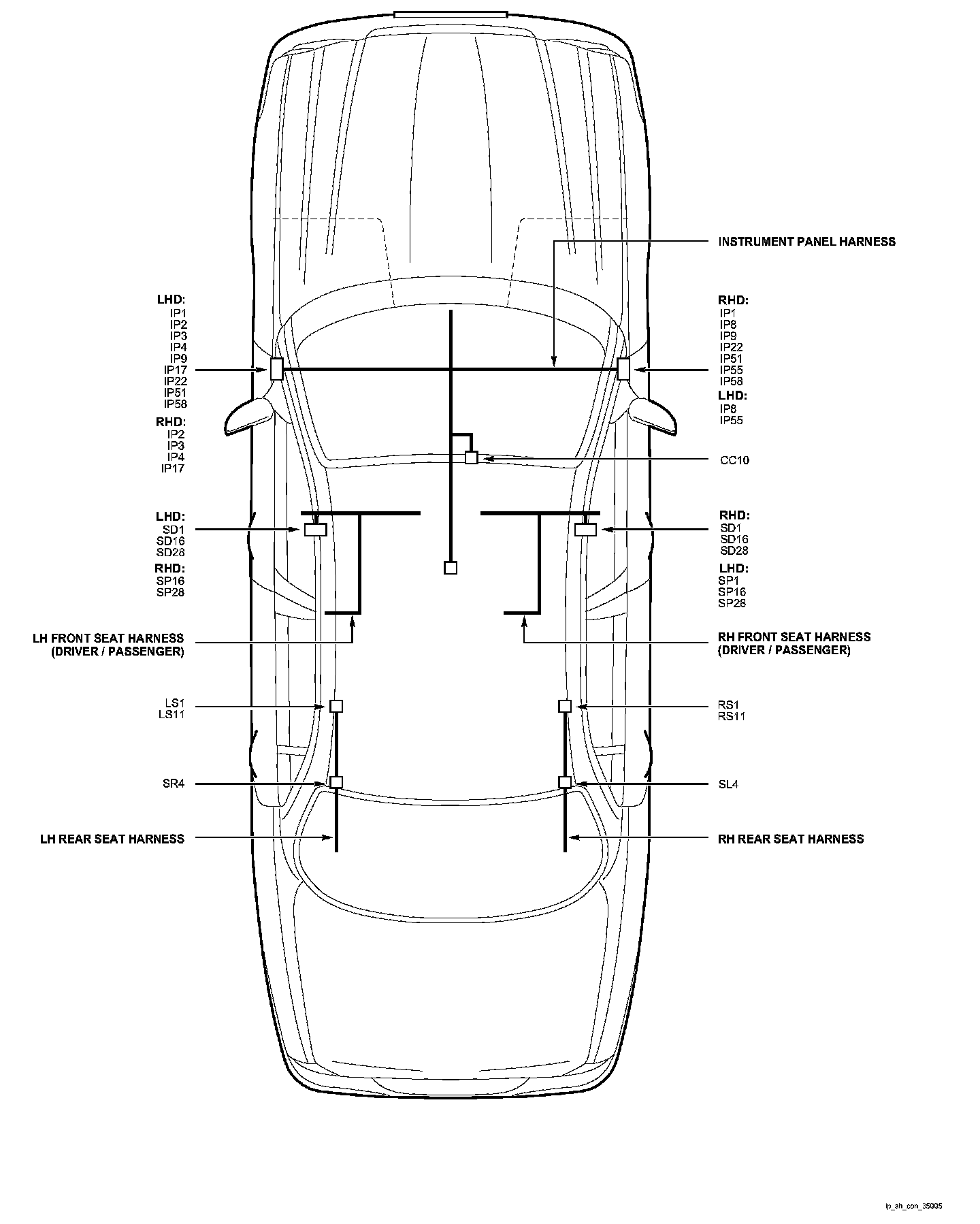

Instrument Panel And Seat Harnesses:

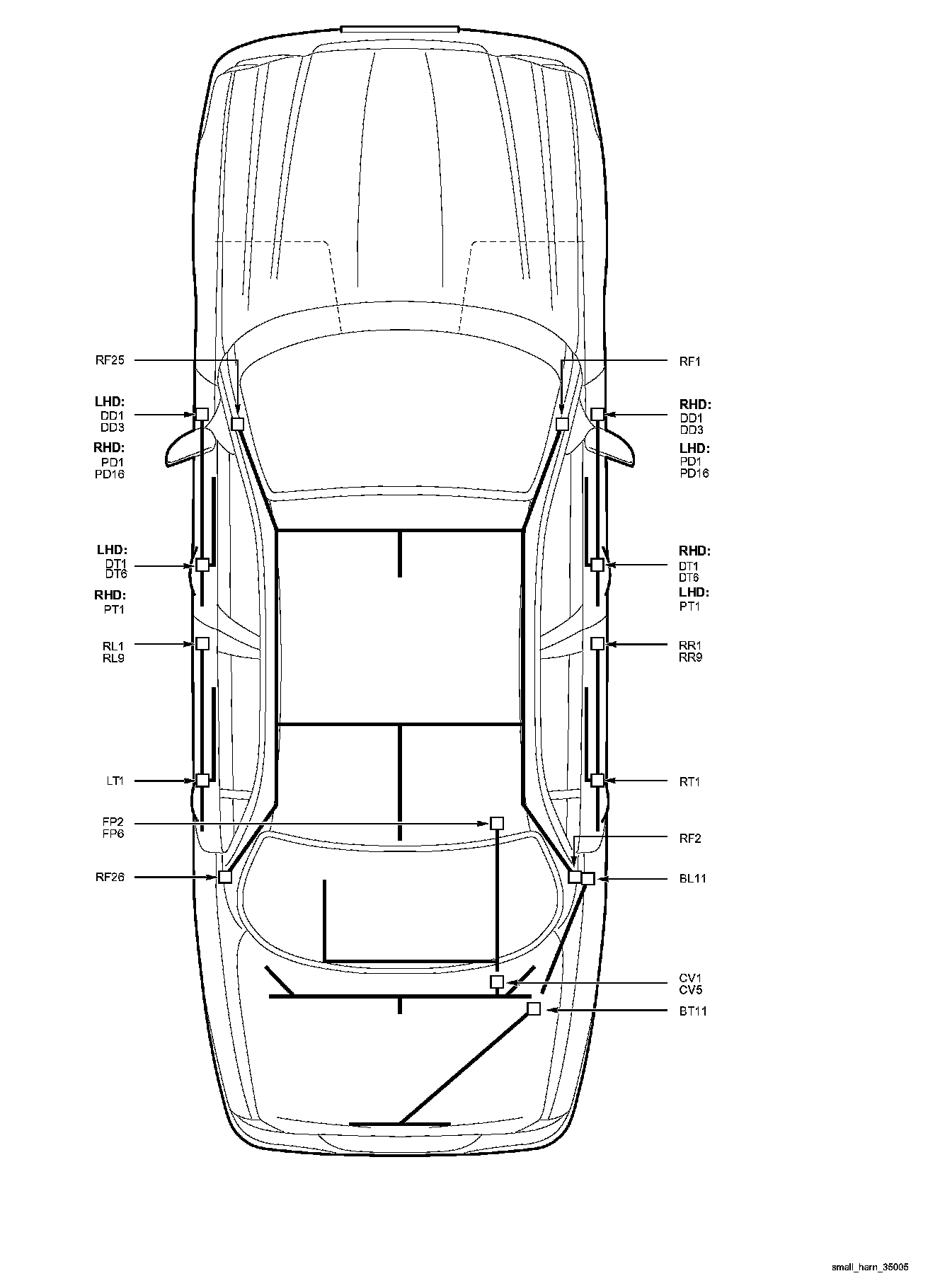

Small Harnesses:

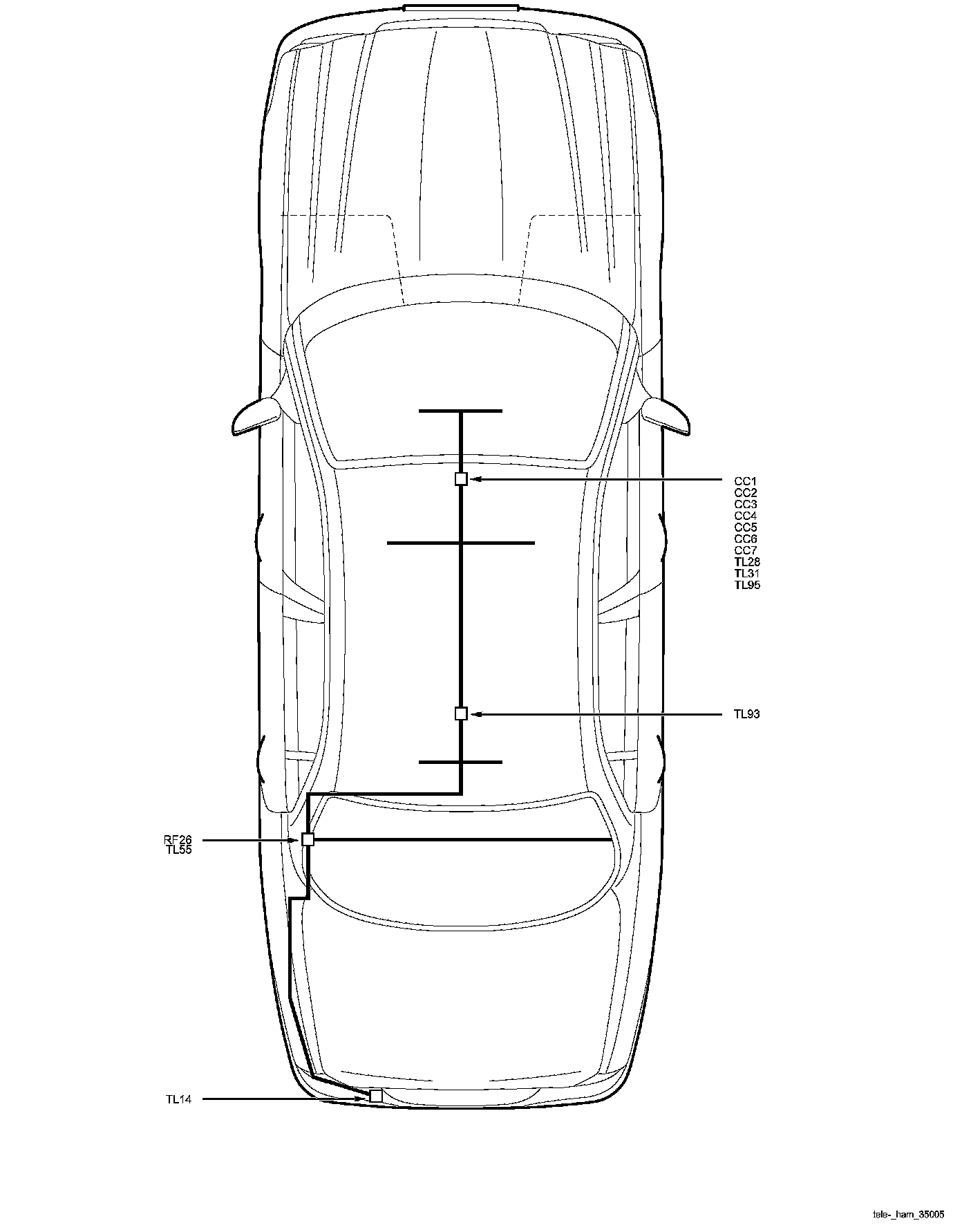

Telematics Harness:
Instrumental Panel And Seat Harnesses:
Small Harnesses:
Telematics Harness:
