Without Scan Tool

Diagnostic trouble code (DTC)/Flash code index

Reading restraints flash codes

Self-check
Turn the ignition switch to the ON position.
- Warning light ON solid for 6 seconds.
- Warning light OFF.

Fault on system
Turn the ignition switch to the ON position.
Warning light ON solid for 6 seconds
Warning light OFF for 2 seconds
Warning light flashes the appropriate number of times for the fault logged
Warning light OFF for 2 seconds
The sequence is repeated 5 times
Warning light ON until the ignition is turned OFF

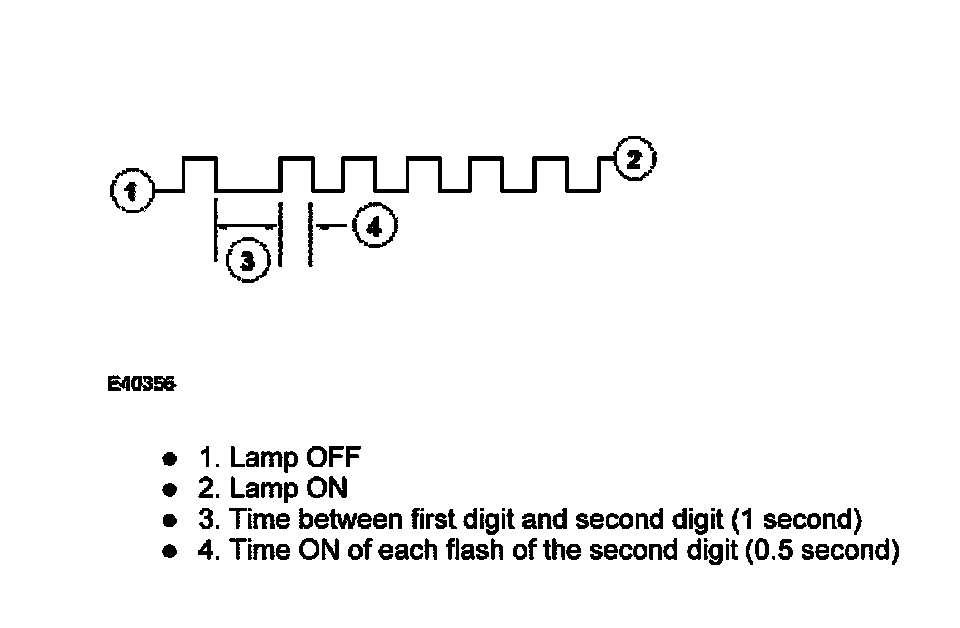

Example: Flash code 16 would be shown as lamp ON for one occurence of 0.5 second then lamp OFF for one second, then six occurrences of lamp ON for 0.5 seconds each (1-6).







Priority

Priority is not assigned to any of the flash codes. They are displayed depending on which code is identified first. If multiple faults are present only one will be flashed. That fault will need to be rectified before the next code will be made available.

If the driver warning lamp is inoperative and a fault occurs, an audible chime will be sounded 90 seconds after the ignition is turned ON.


NOTE: * = DTC used for more than one fault.

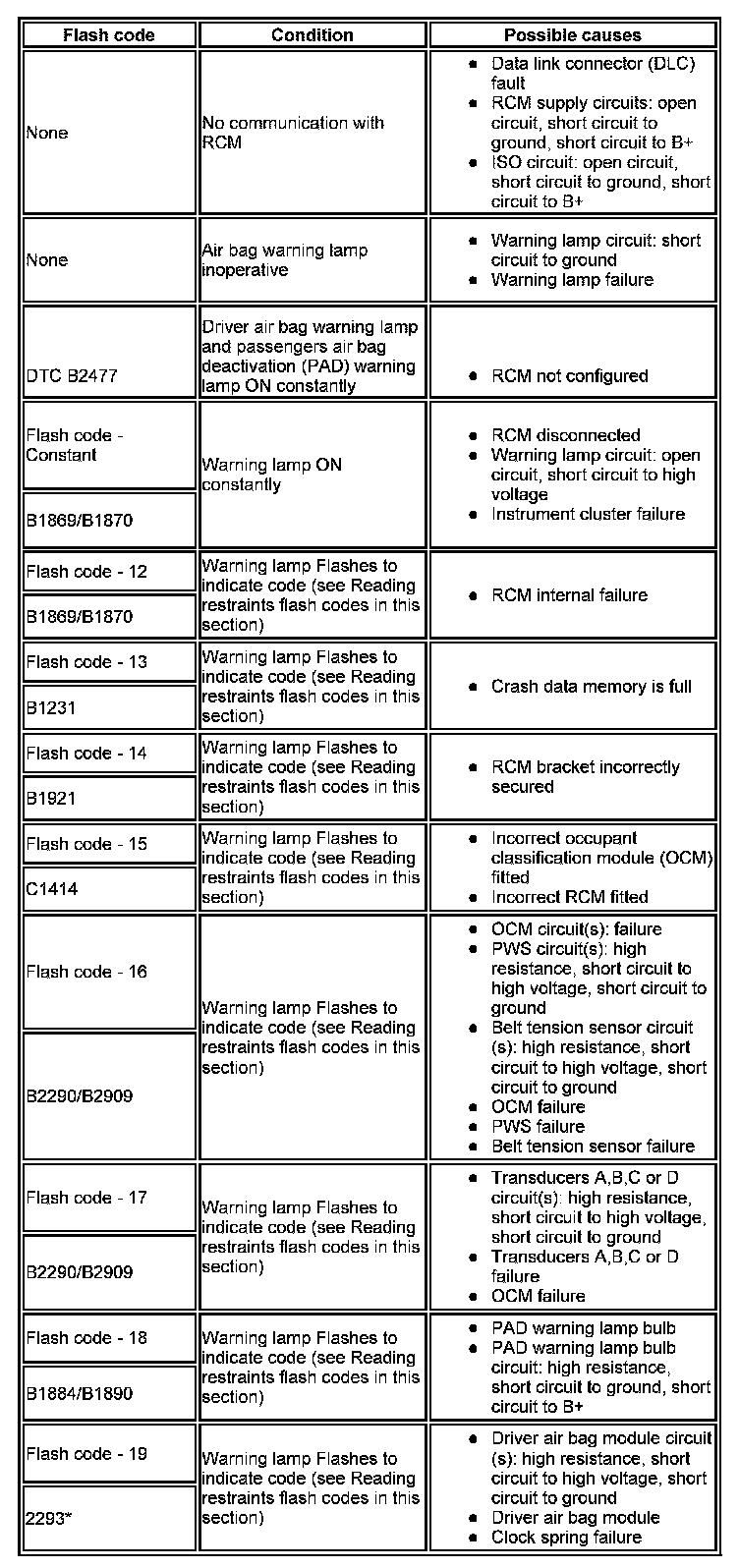

Flash Code Index - Part 1:

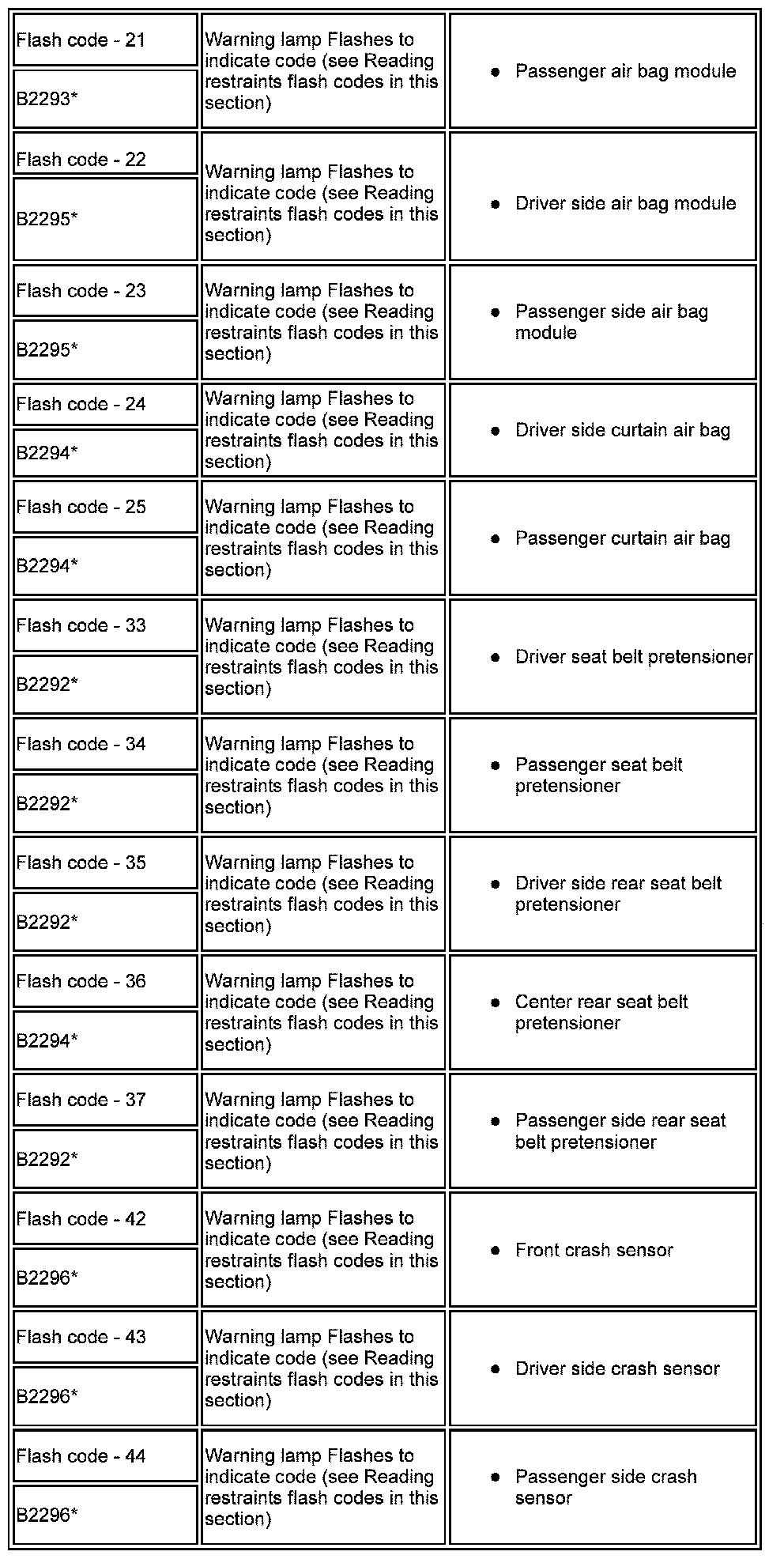

Flash Code Index - Part 2:

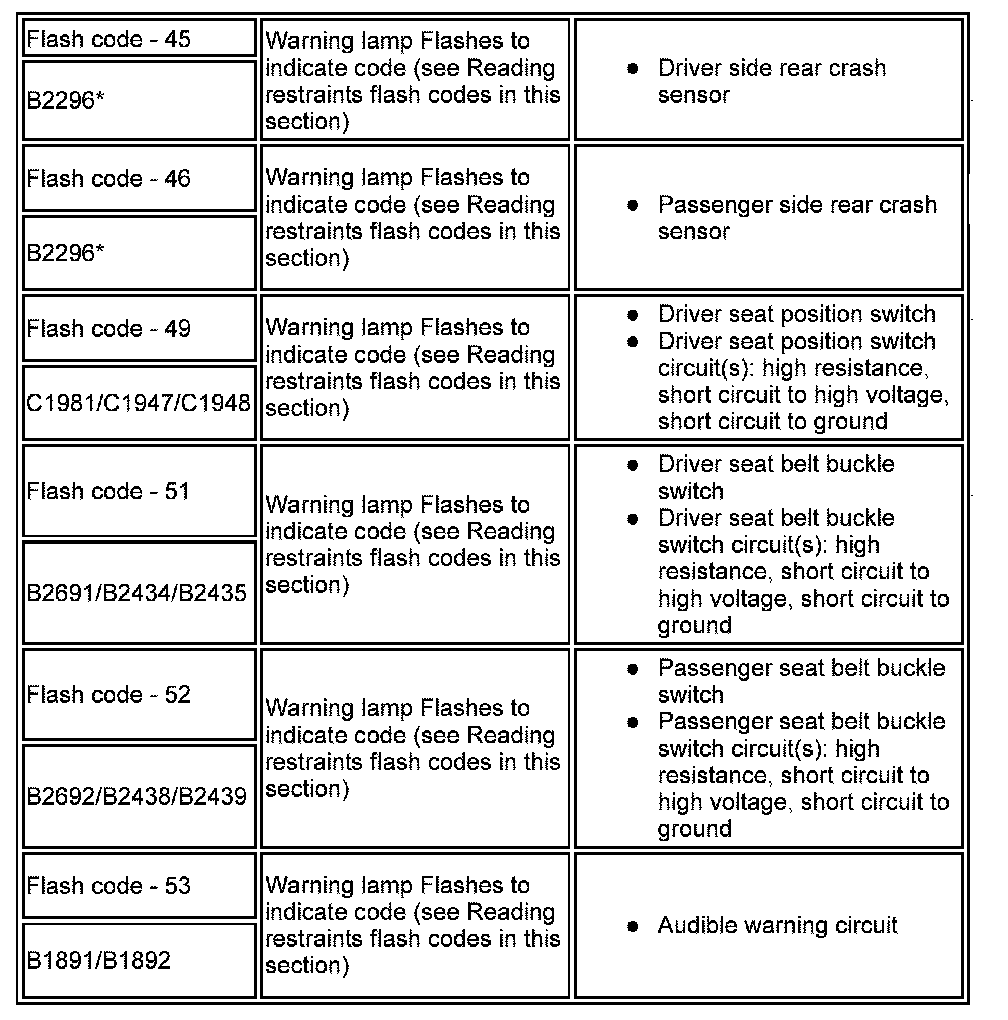

Flash Code Index - Part 3:
