Home >> Jaguar >> 2006 >> XK (X100) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Figure Numbers >> Fig. 12.3(Passenger Seat: 5-Way Movement)

Fig. 12.3(Passenger Seat: 5-Way Movement)

Passenger Seat: 5-Way Movement

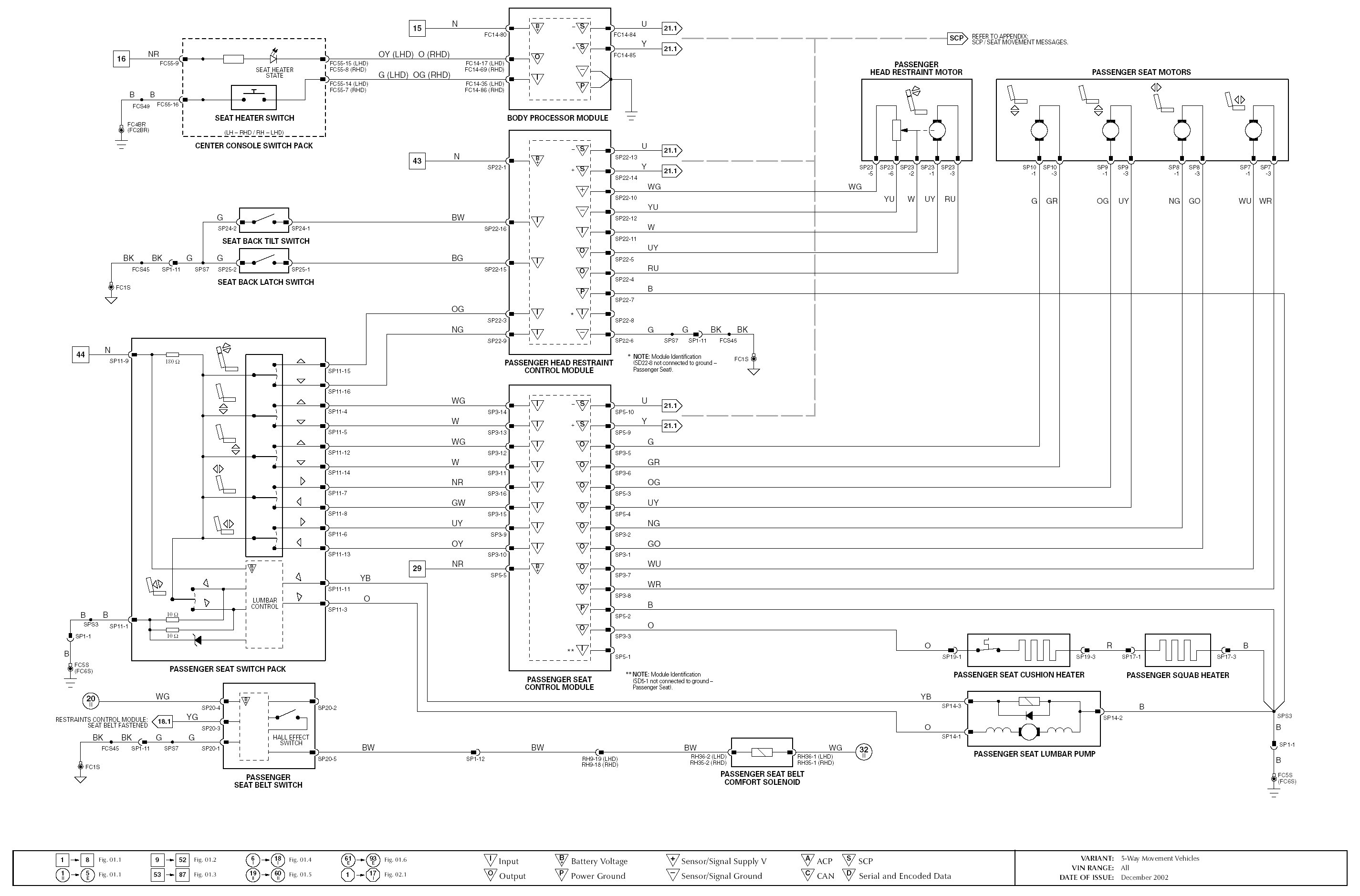

Diagram Figure 12.3:

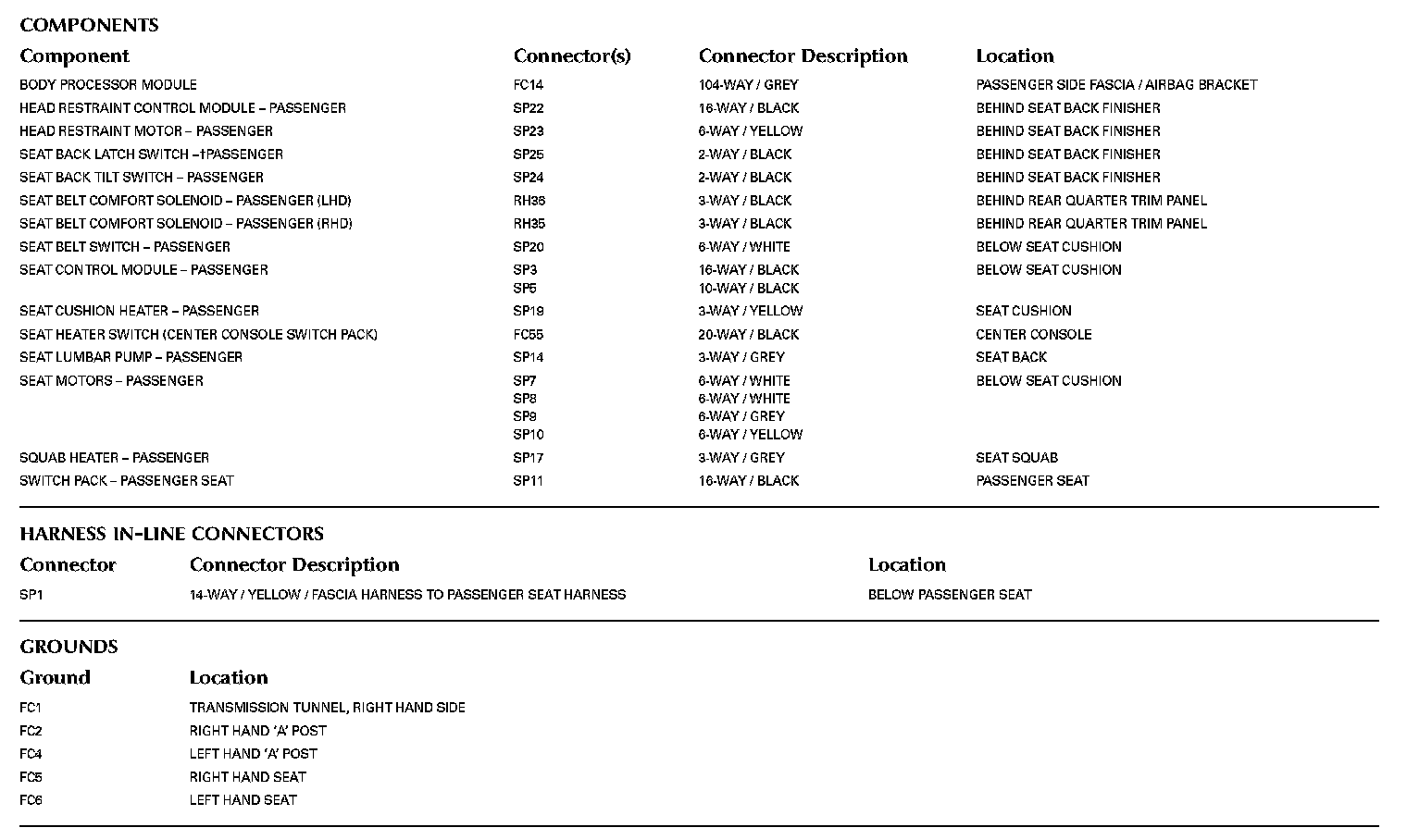

Diagram Data Sheet 12.3 (Part 1):

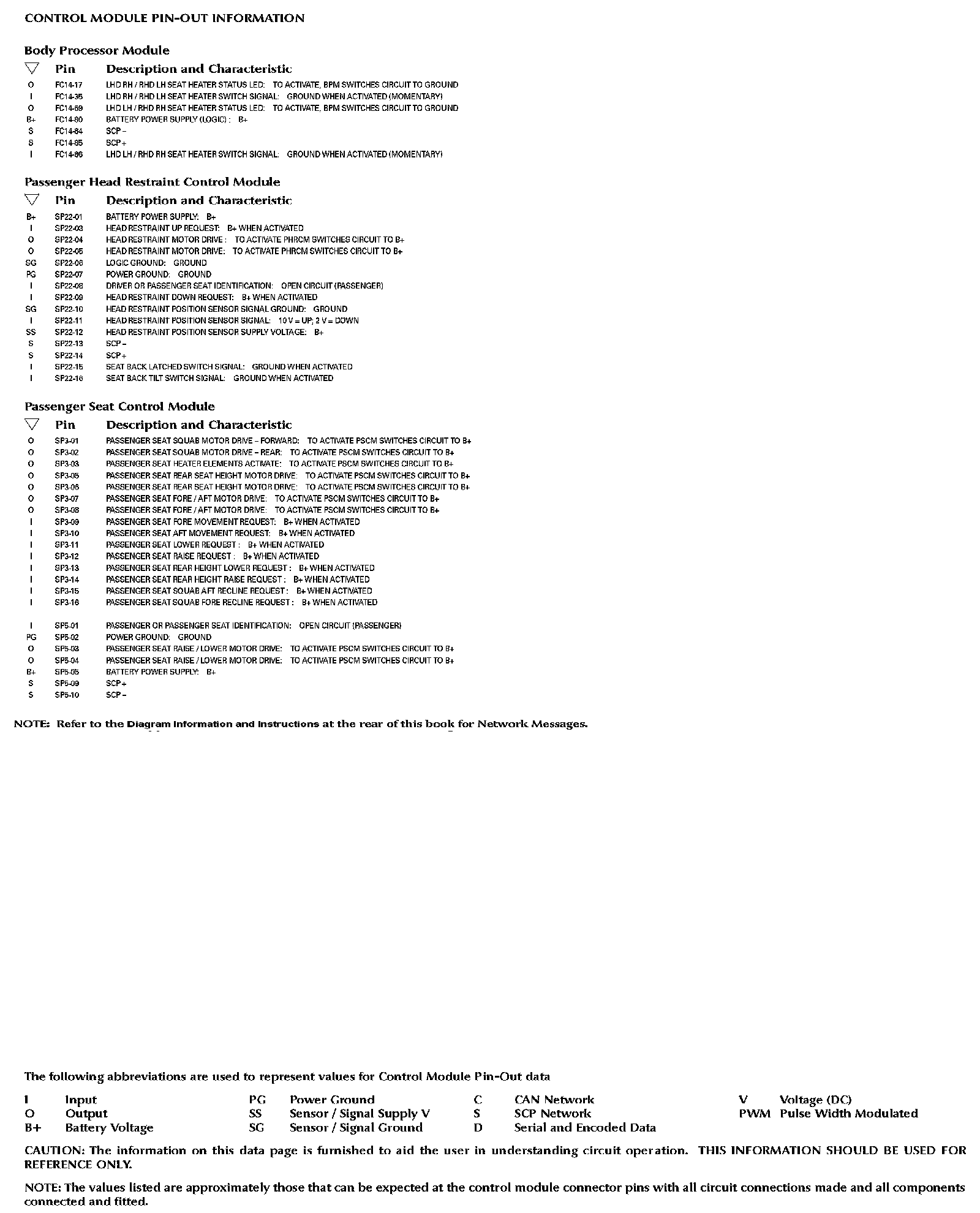

Diagram Data Sheet 12.3 (Part 2):
