Home >> Jaguar >> 2006 >> XK (X100) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Figure Numbers >> Fig. 03.1(Battery; Starter; Generator)

Fig. 03.1(Battery; Starter; Generator)



Battery; Starter; Generator


Diagram Figure 03.1:

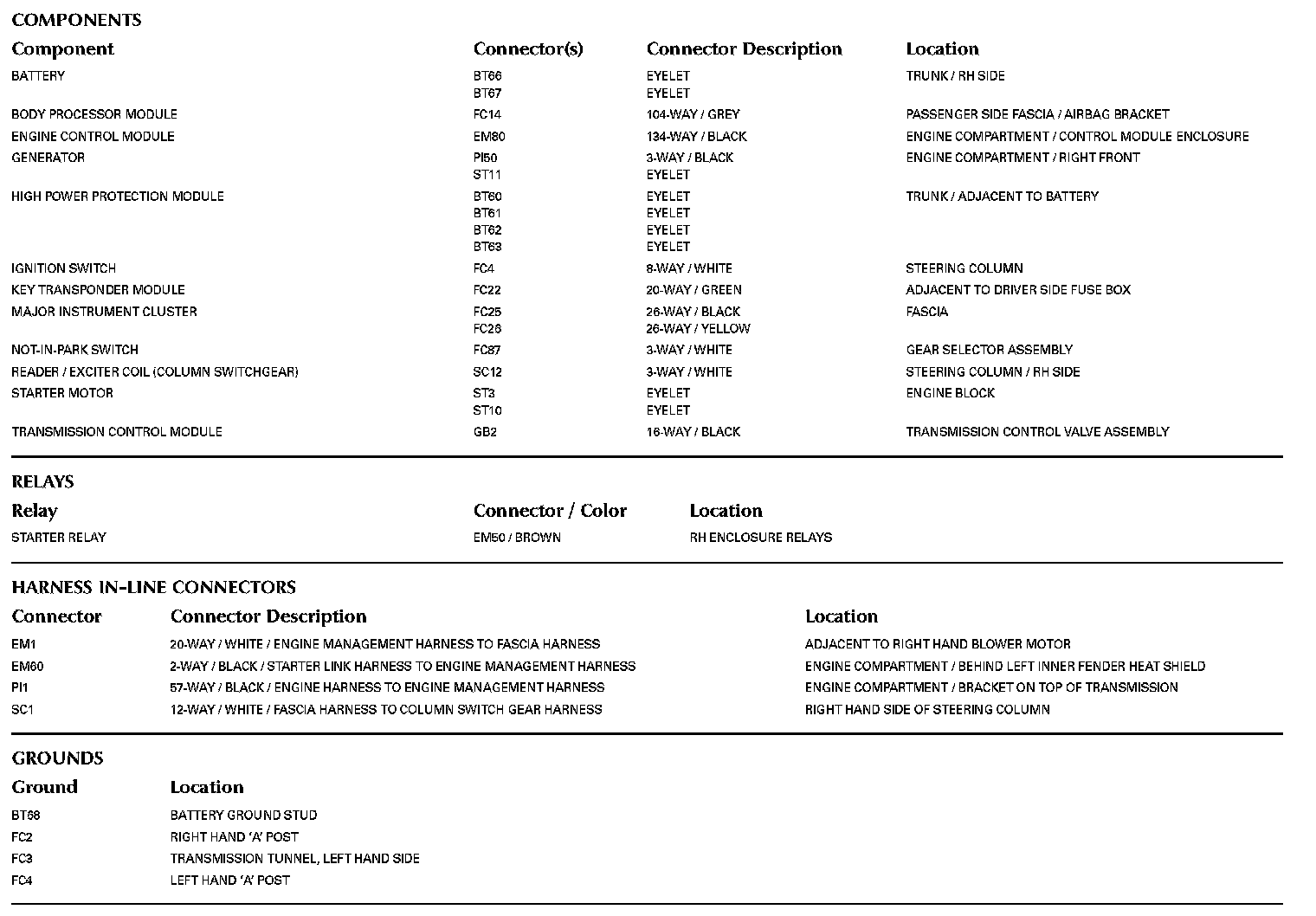

Diagram Data Sheet 03.1 (Part 1):

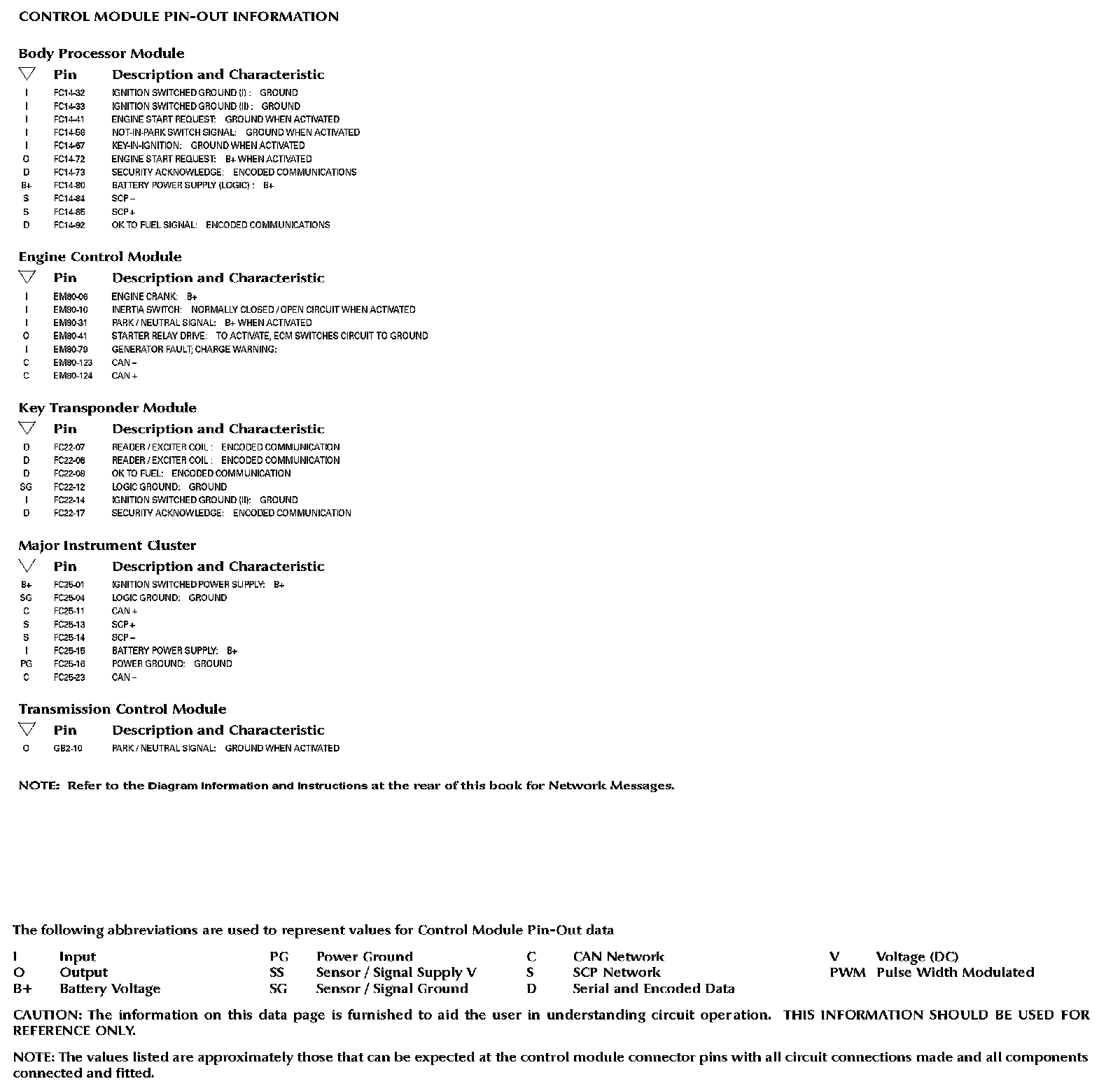

Diagram Data Sheet 03.1 (Part 2):
