Fig. 04.1(Engine Management: Part 1)

4.2L V8 Engine Management: Part 1

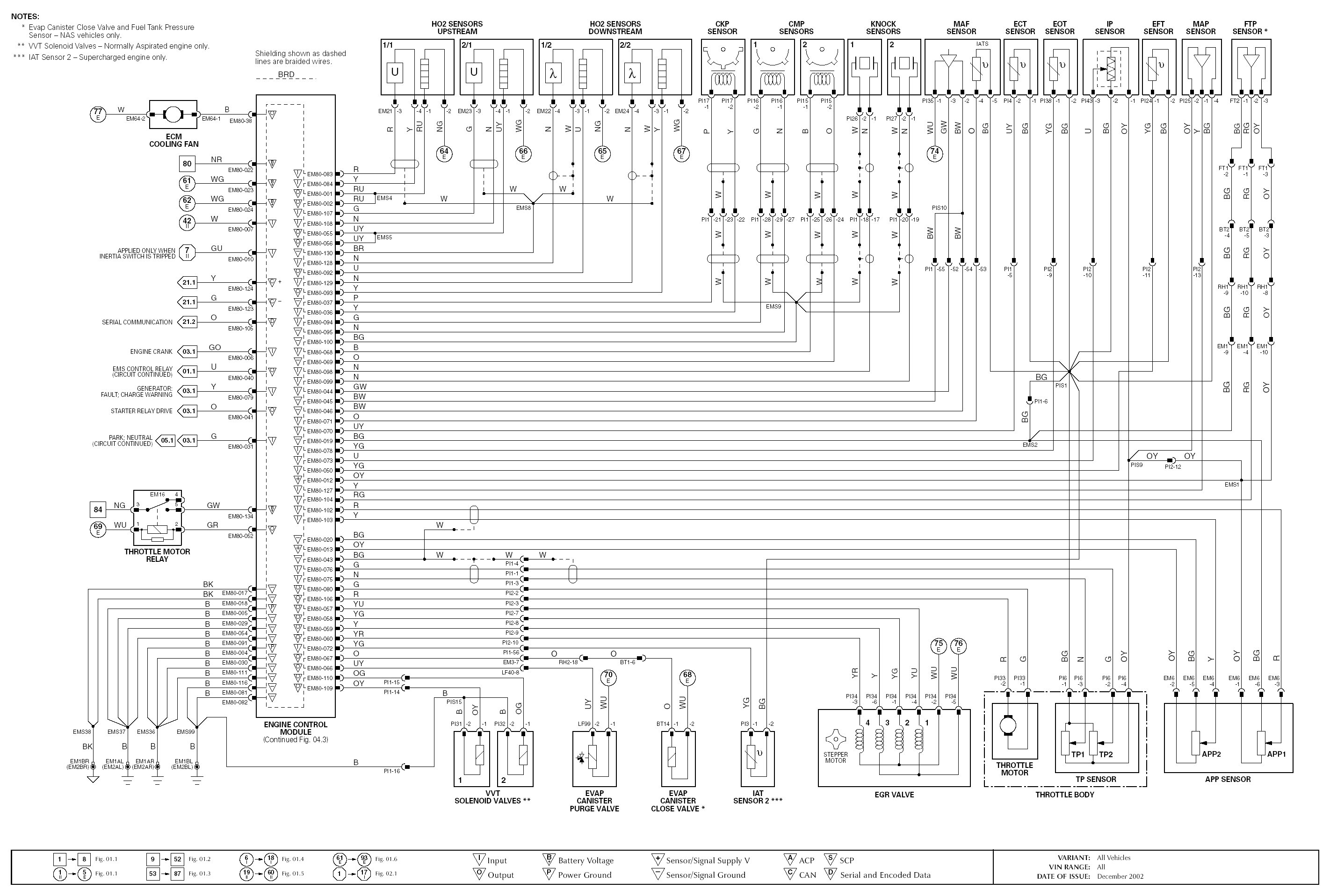

Diagram Figure 04.1:

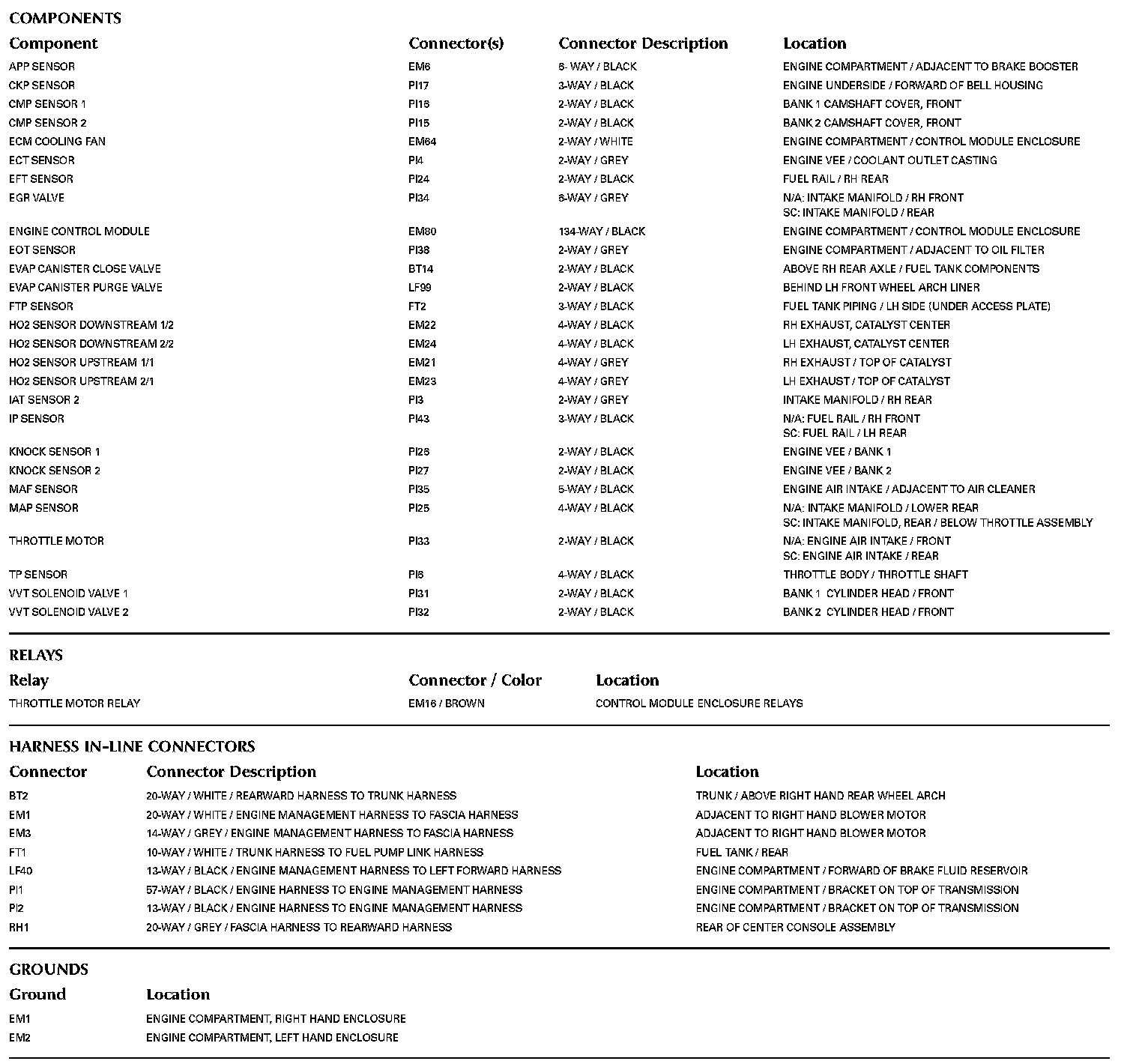

Diagram Data Sheet 04.1 (Part 1):

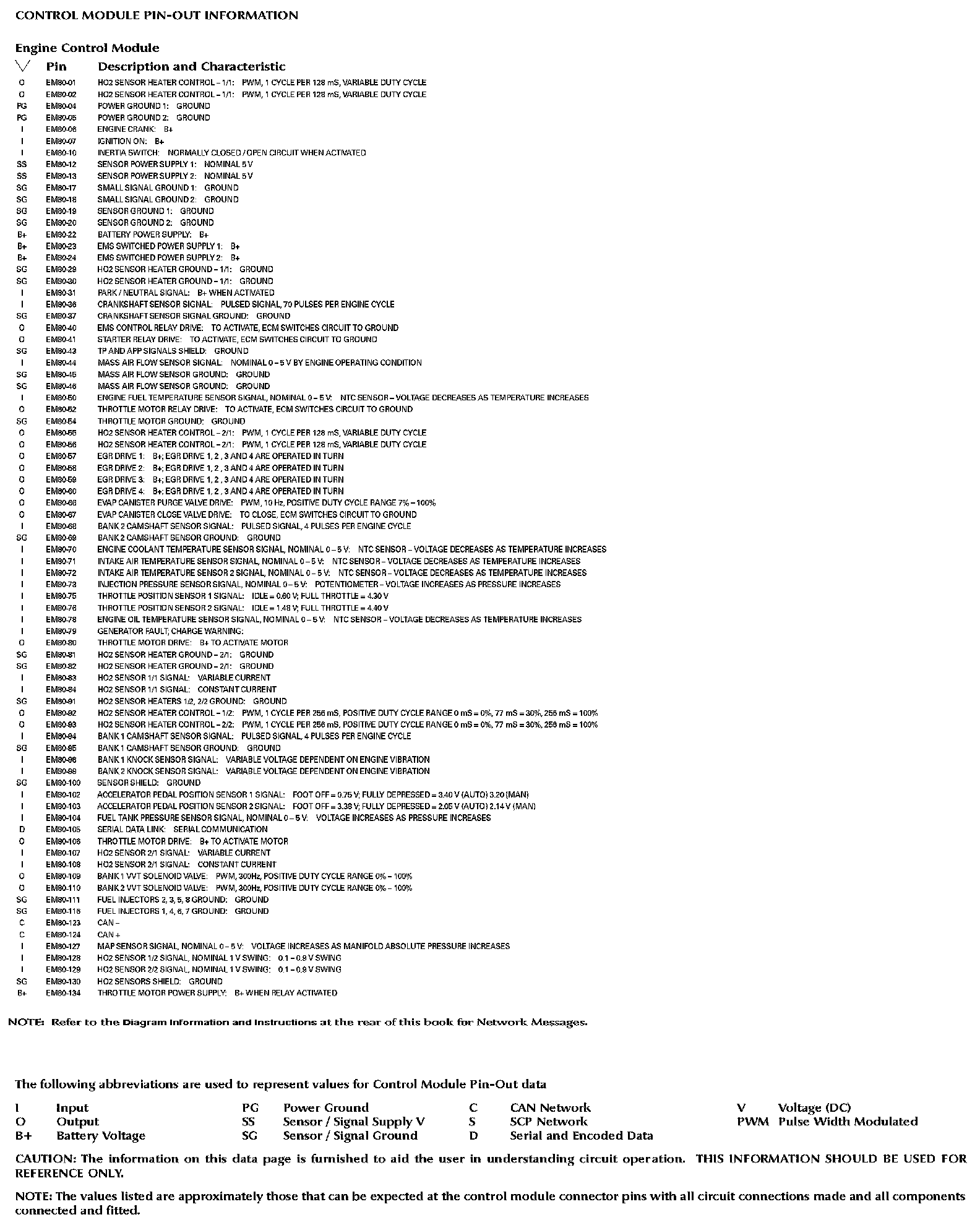

Diagram Data Sheet 04.1 (Part 2):
