Fig. 06.1(Dynamic Stability Control)
Fig. 06.1(Dynamic Stability Control)
Dynamic Stability Control

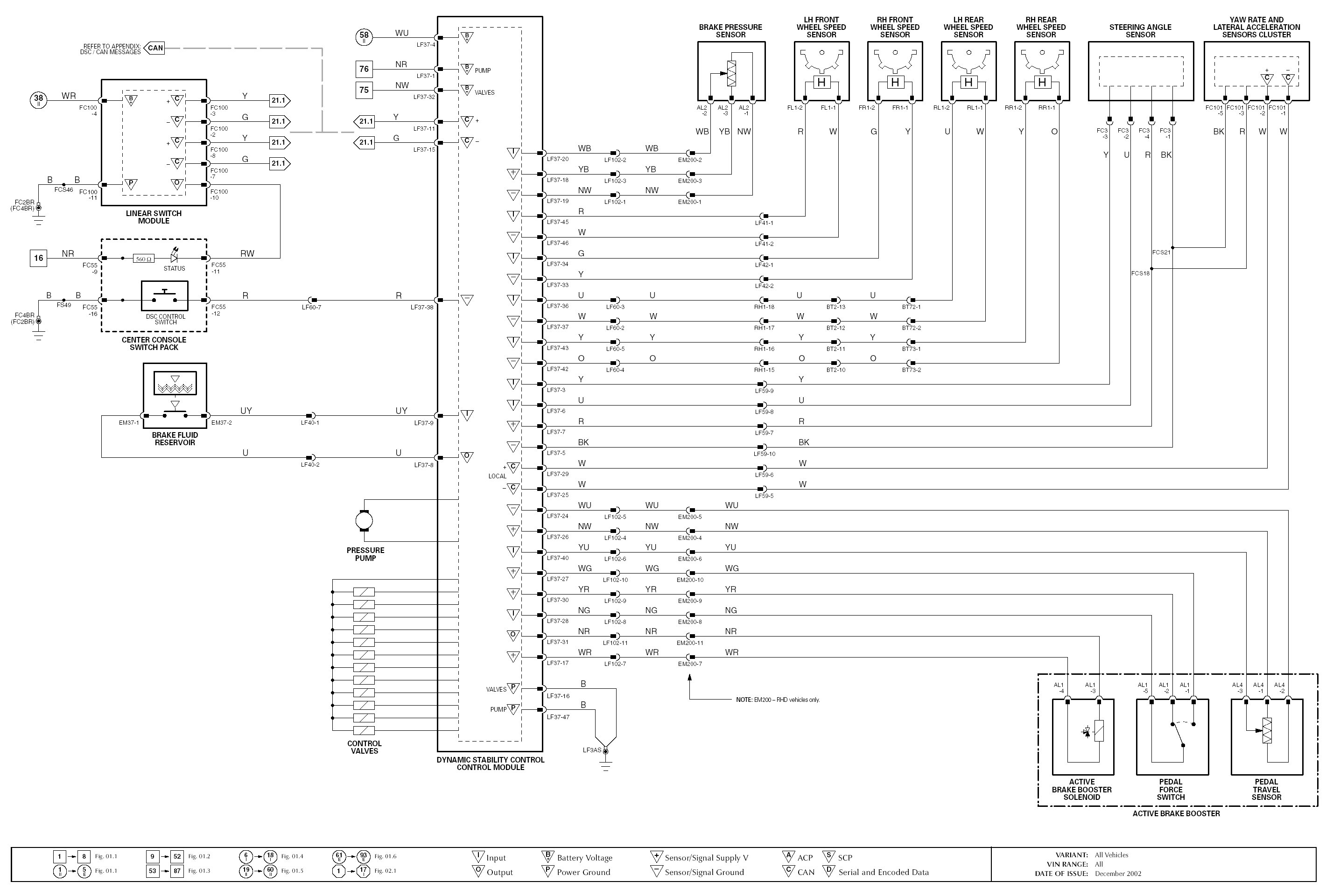

Diagram Figure 06.1:

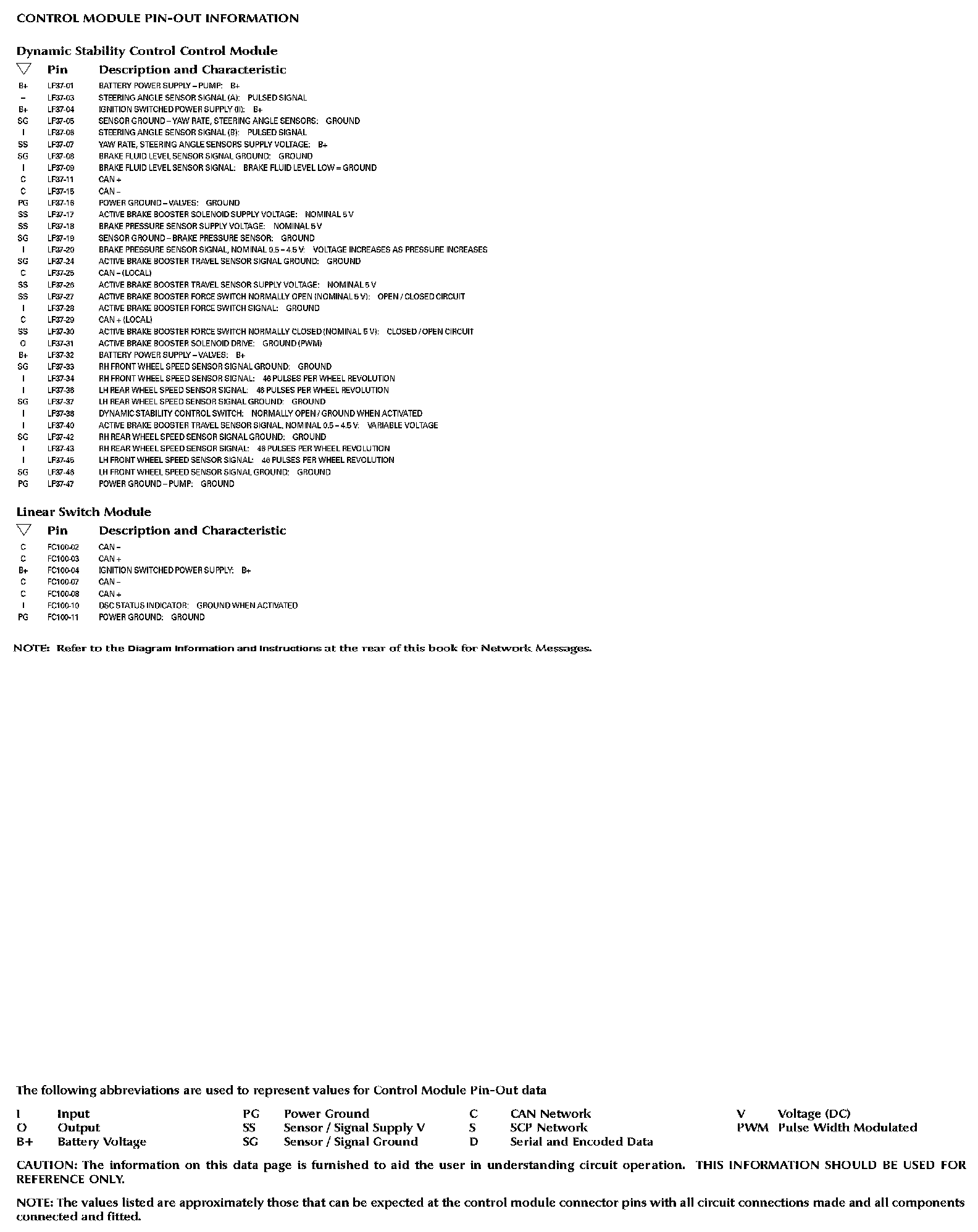

Diagram Data Sheet 06.1 (Part 1):

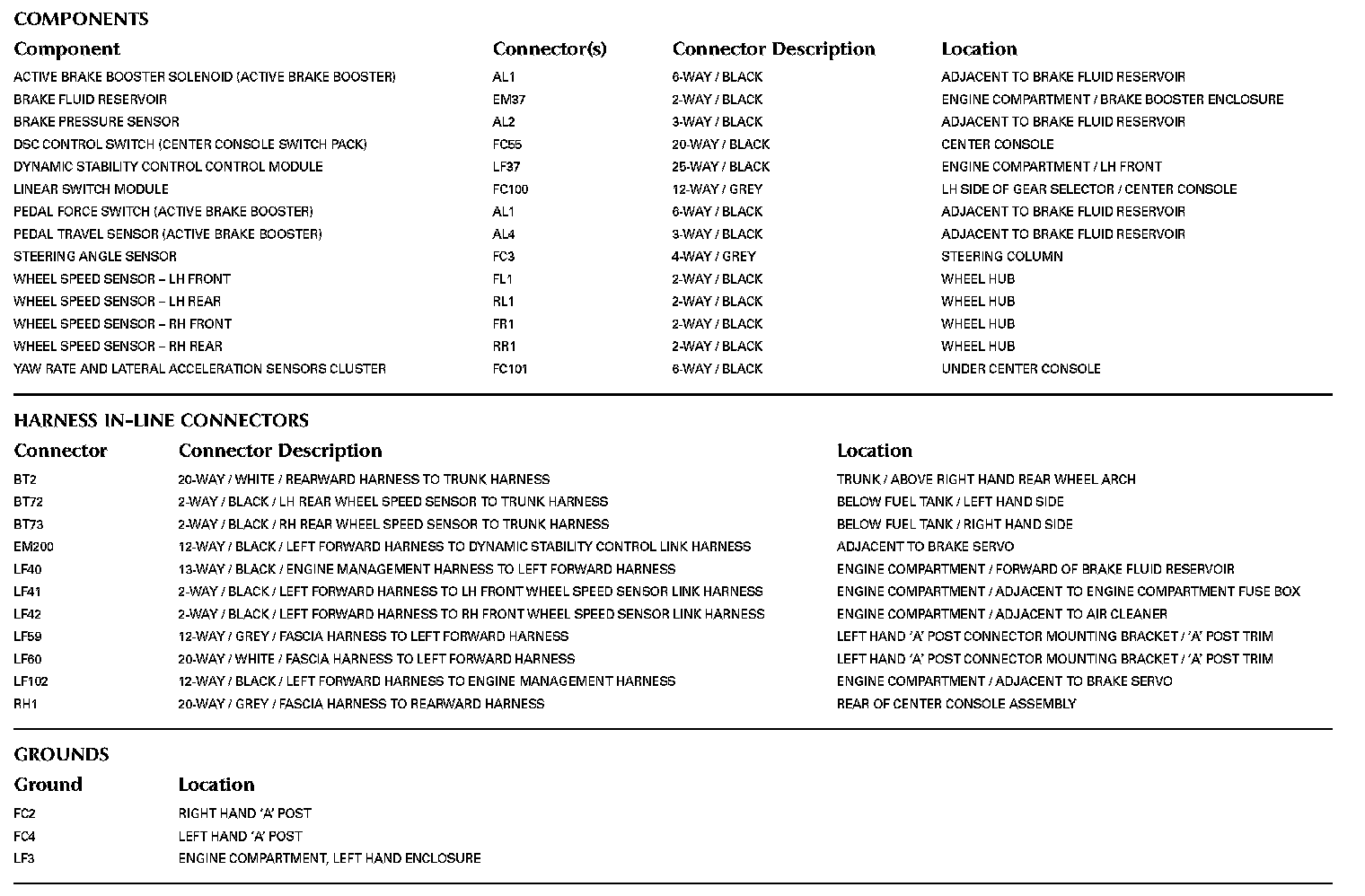

Diagram Data Sheet 06.1 (Part 2):
