Fig. 06.4(Adaptive Speed Control)
Fig. 06.4(Adaptive Speed Control)
Adaptive Speed Control

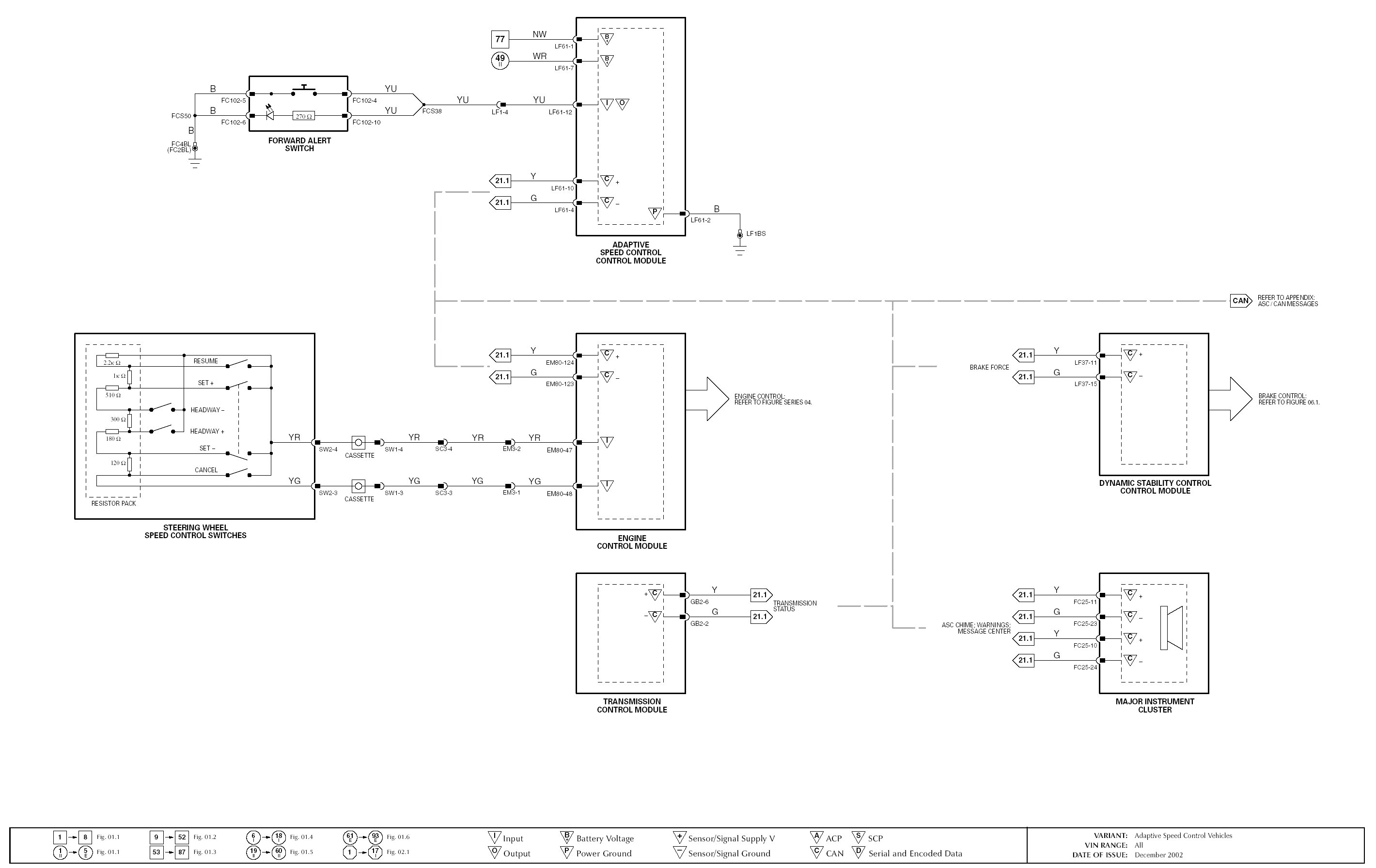

Diagram Figure 06.4:

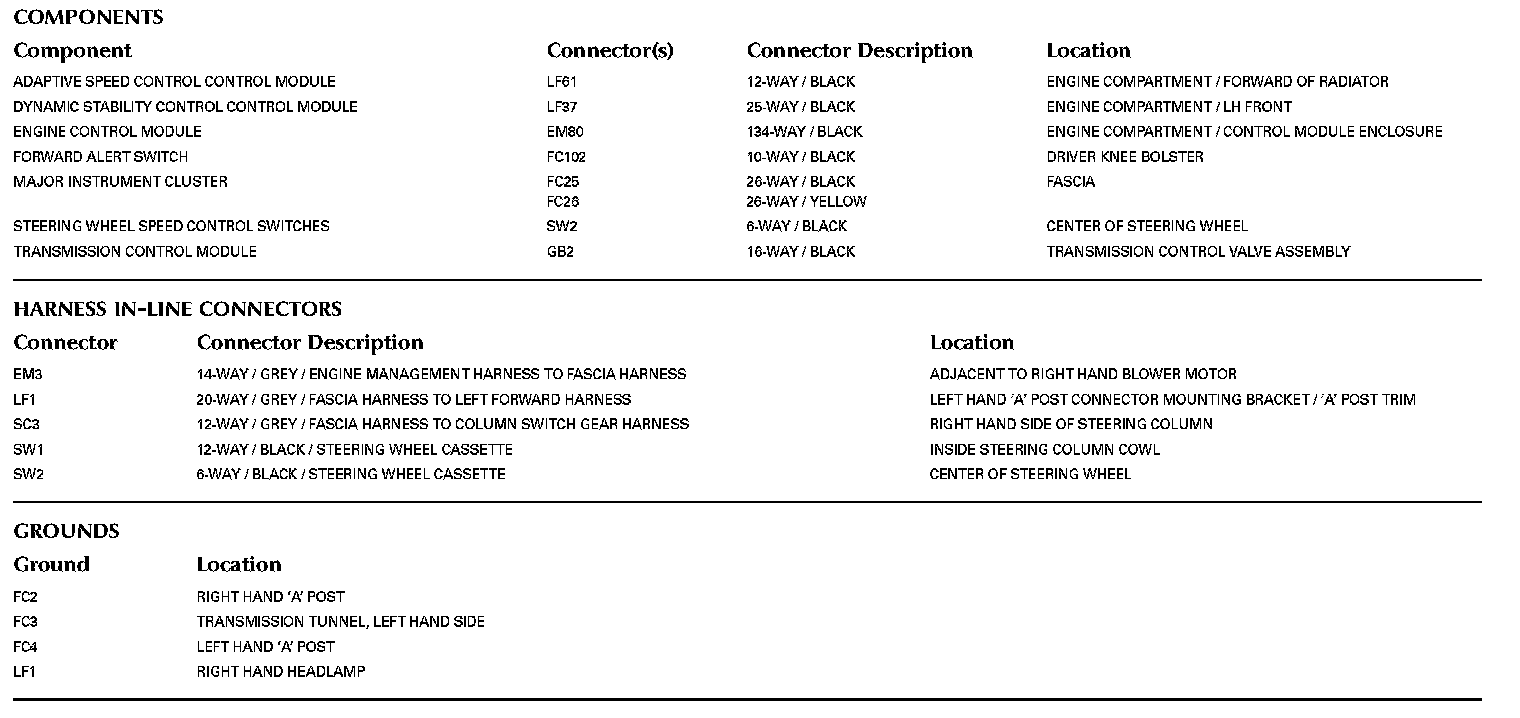

Diagram Data Sheet 06.4 (Part 1):
Diagram Data Sheet 06.4 (Part 2):
