Jaguar
>>
2006
>>
XK (X100) V8-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Figure Numbers
>>
Fig. 07.1(Climate Control: Part 1)
Fig. 07.1(Climate Control: Part 1)
Climate Control: Part 1

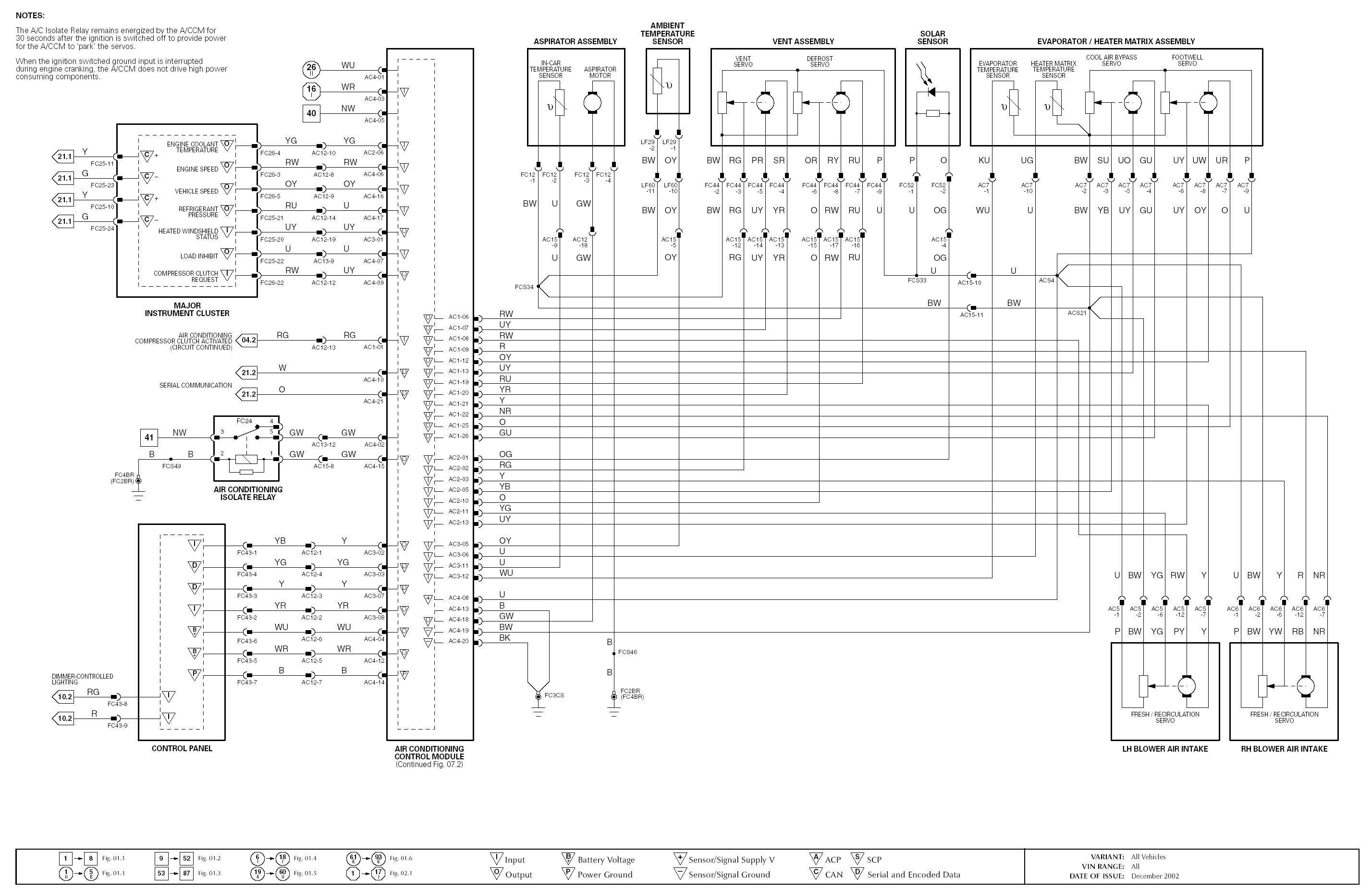

Diagram Figure 07.1:
Diagram Data Sheet 07.1 (Part 1):
Diagram Data Sheet 07.1 (Part 2):
