Instrument Clusters
Diagram Figure 08.1:

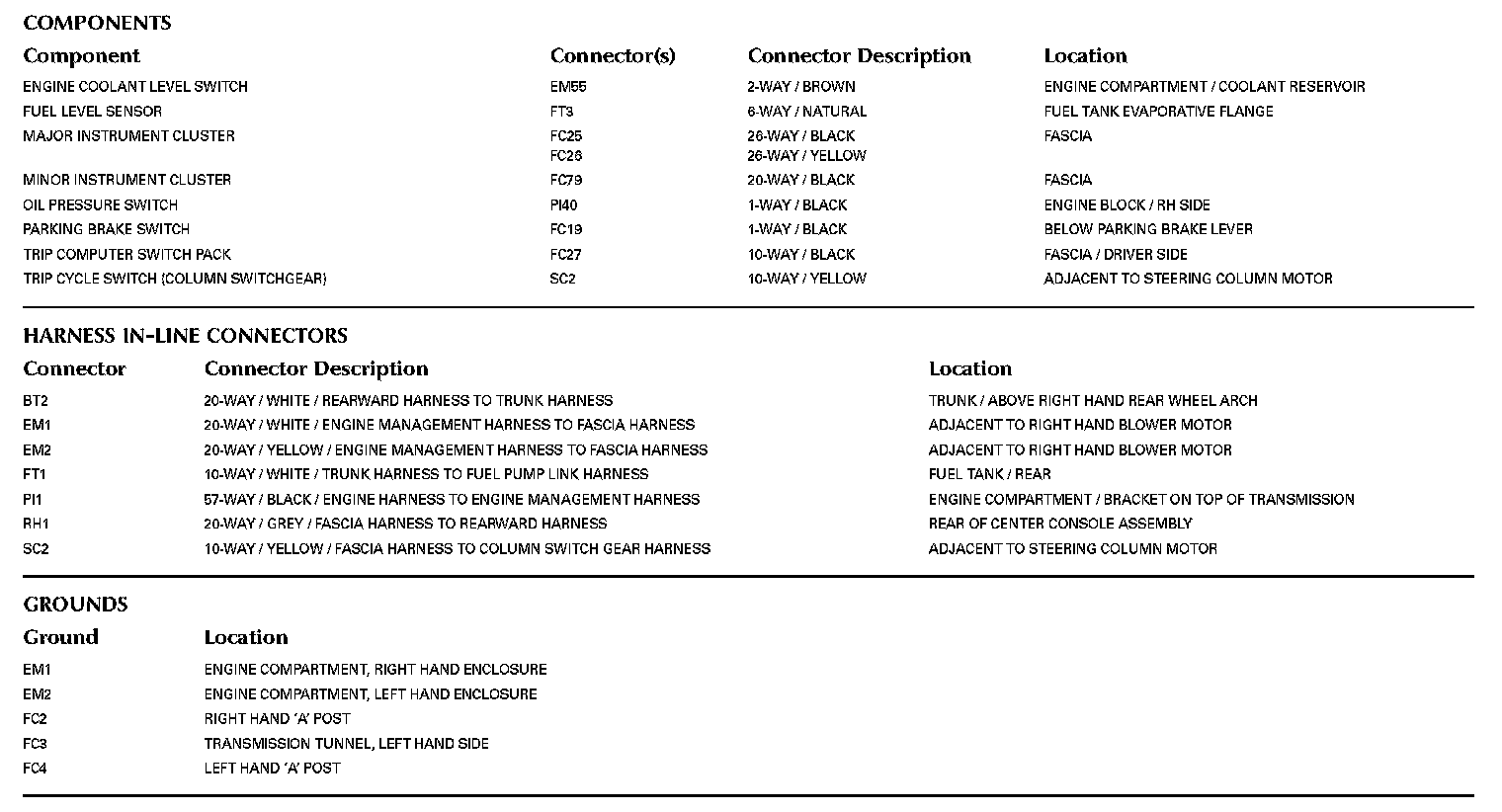

Diagram Data Sheet 08.1 (Part 1):
Diagram Data Sheet 08.1 (Part 2):
