Fig. 09.4(Headlamp Leveling)
Fig. 09.4(Headlamp Leveling)
Headlamp
Leveling
Diagram Figure 09.4:

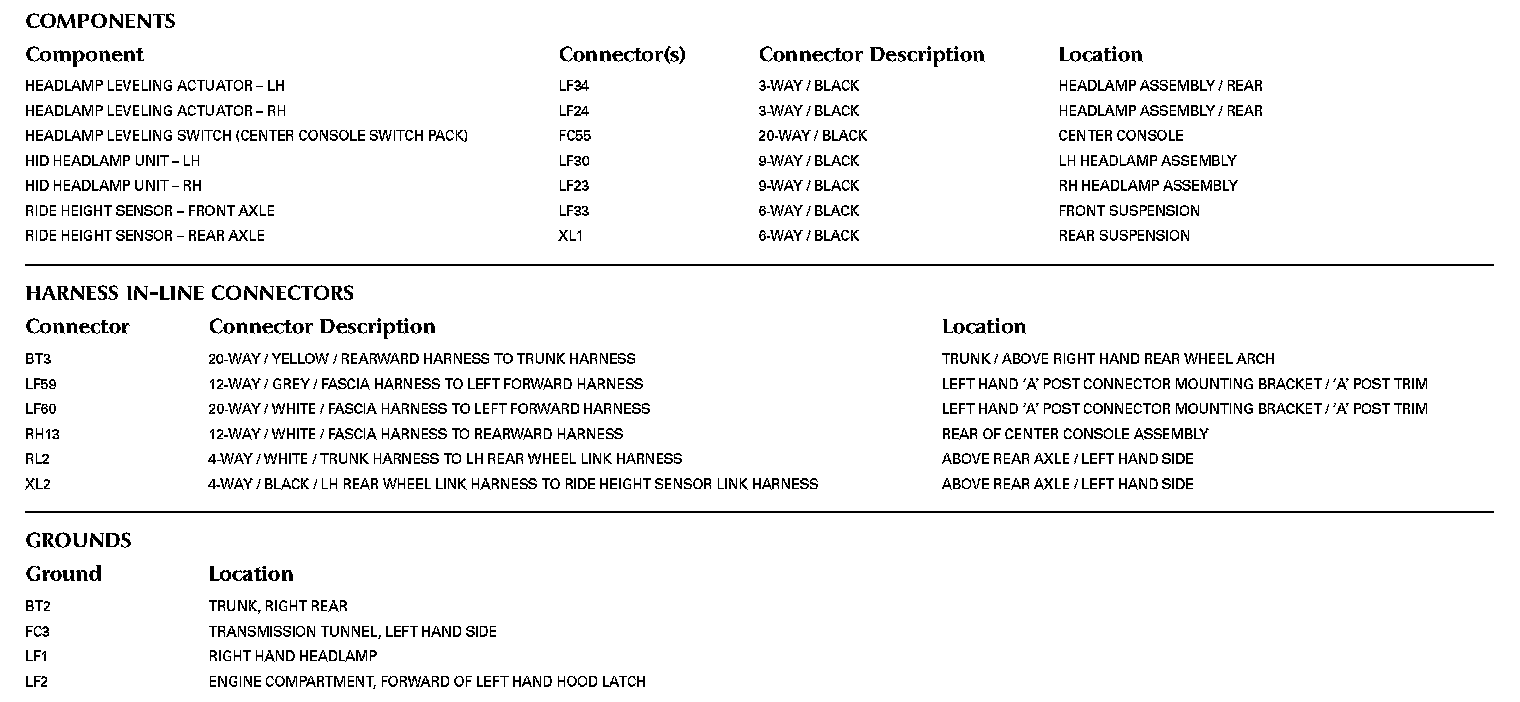

Diagram Data Sheet 09.4:
