Fig. 11.2(Mirror Movement)



Mirror Movement

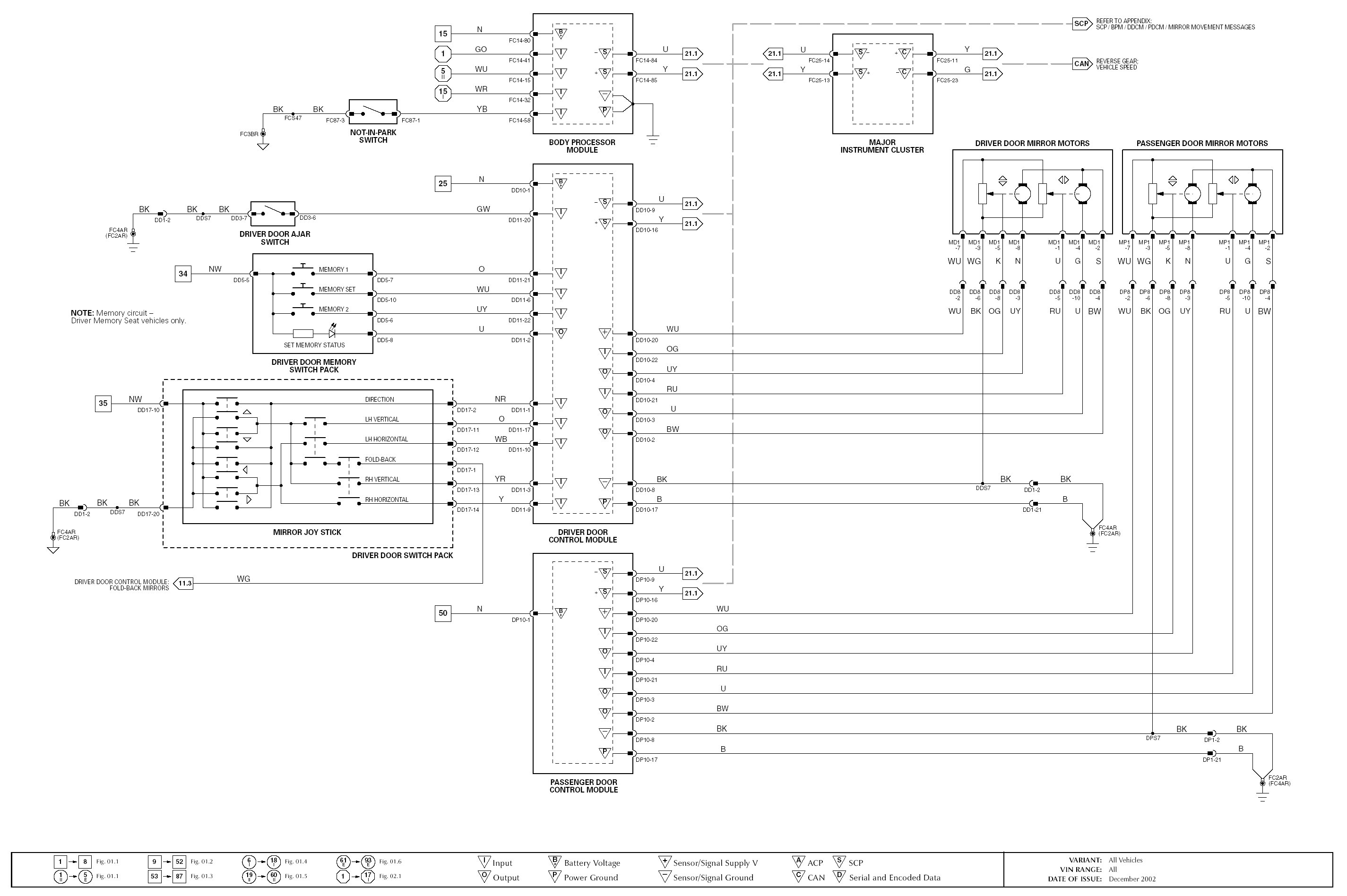

Diagram Figure 11.2:

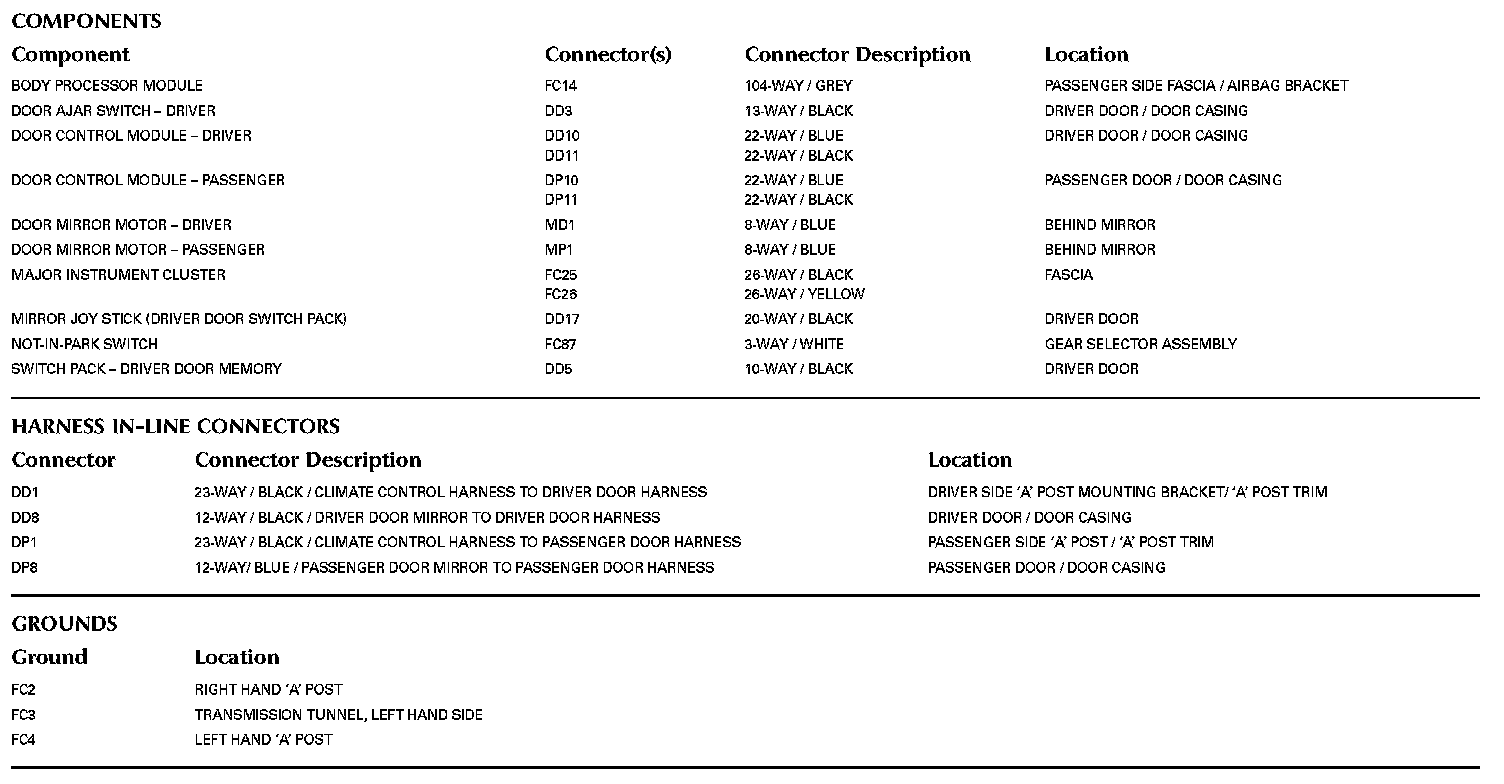

Diagram Data Sheet 11.2 (Part 1):




Diagram Data Sheet 11.2 (Part 2):
