Fig. 12.4(Passenger Seat: 3-Way Movement)



Passenger Seat: 3-Way Movement

Diagram Figure 12.4:

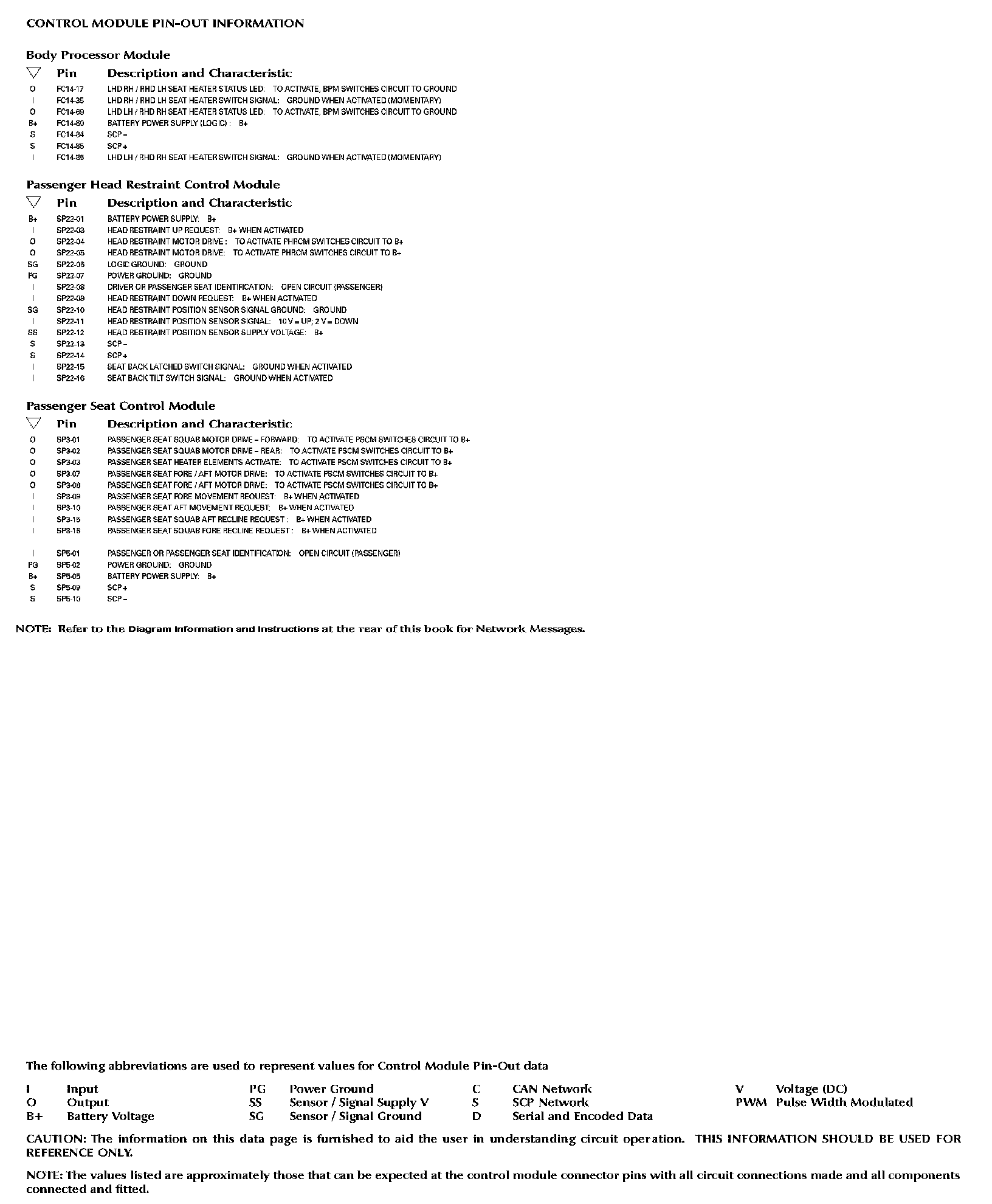

Diagram Data Sheet 12.4 (Part 1):

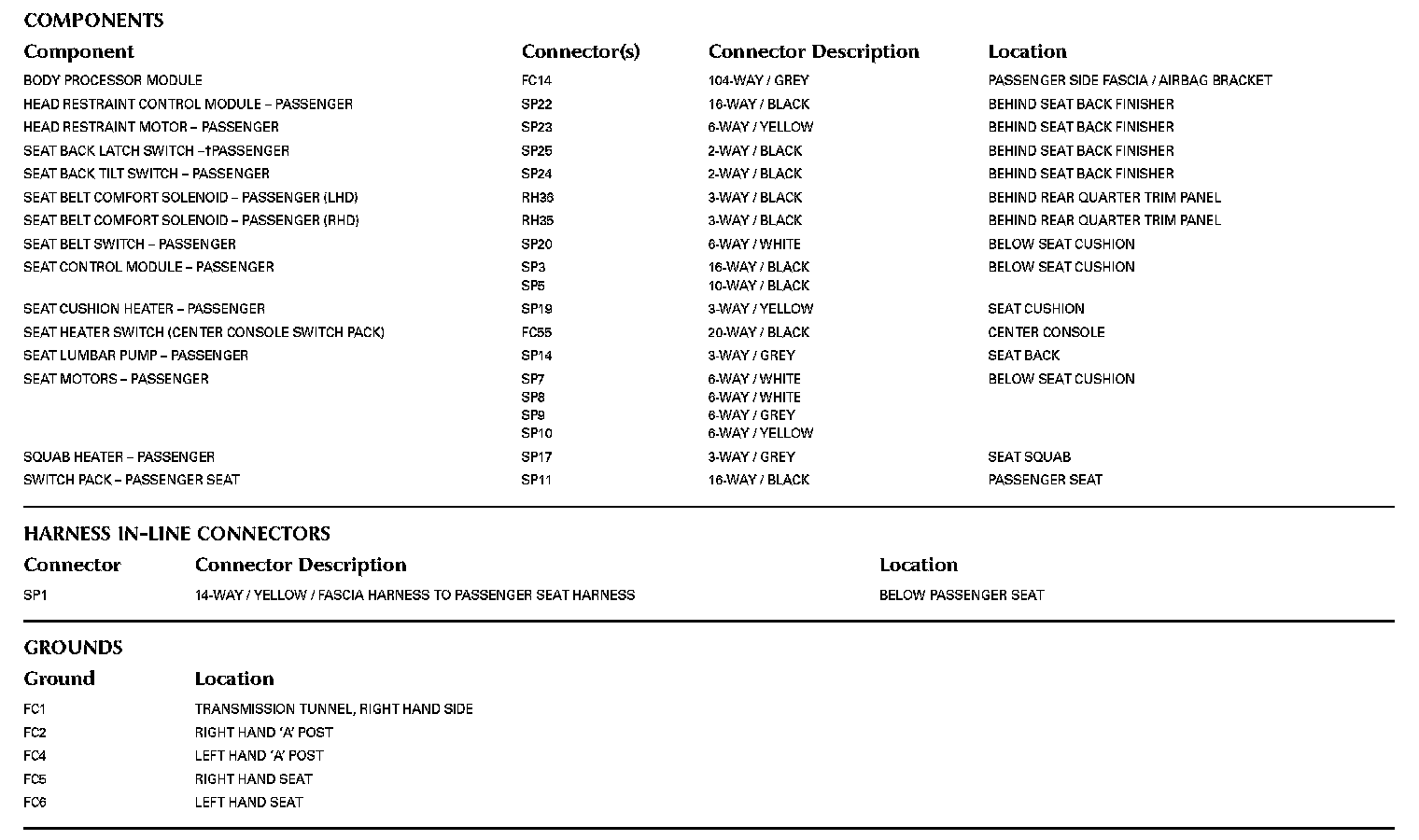

Diagram Data Sheet 12.4 (Part 2):
