Home >> Jaguar >> 2006 >> XK (X100) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Figure Numbers >> Fig. 13.1(Central Locking)

Fig. 13.1(Central Locking)



Central Locking

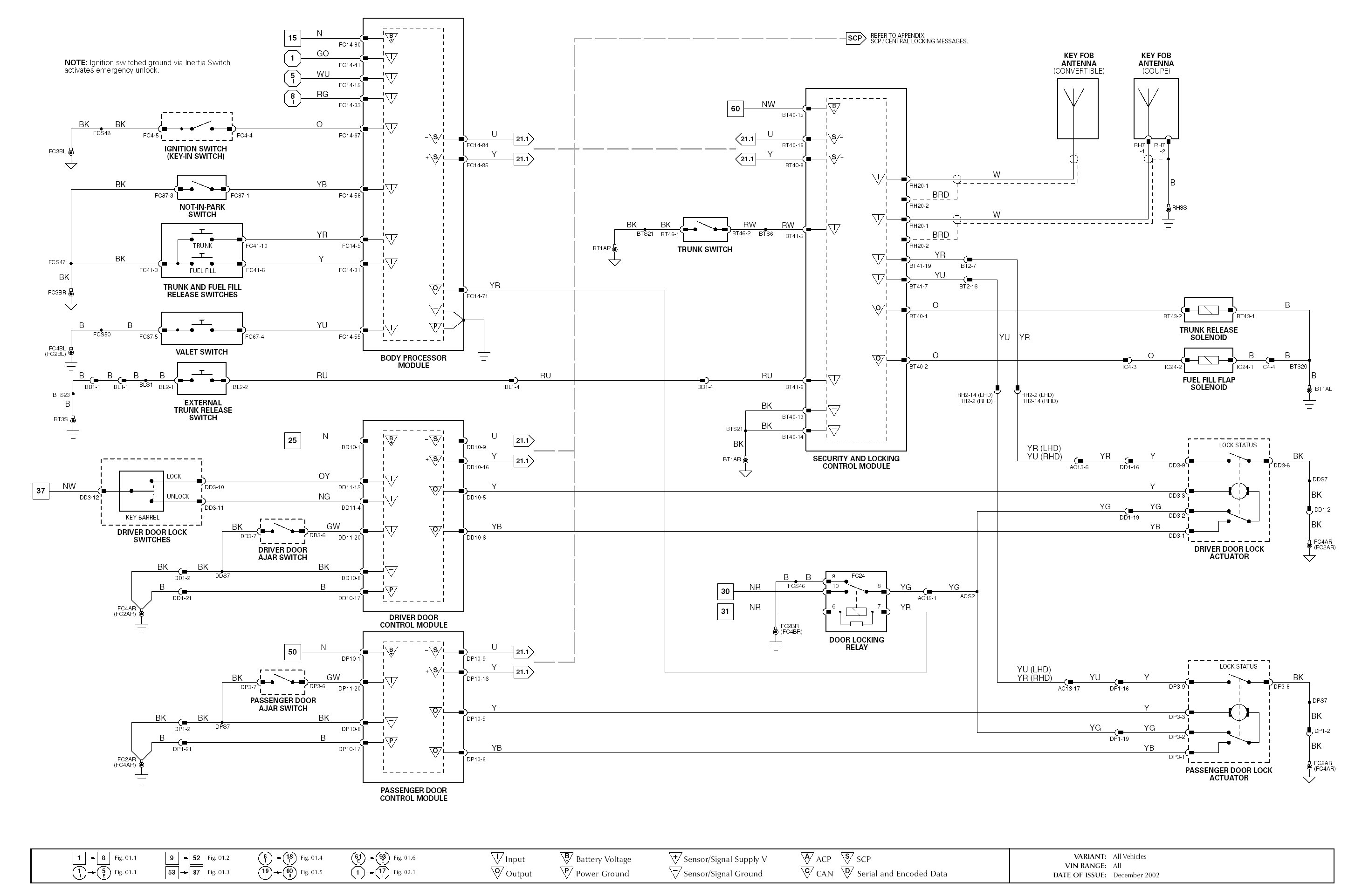

Diagram Figure 13.1:

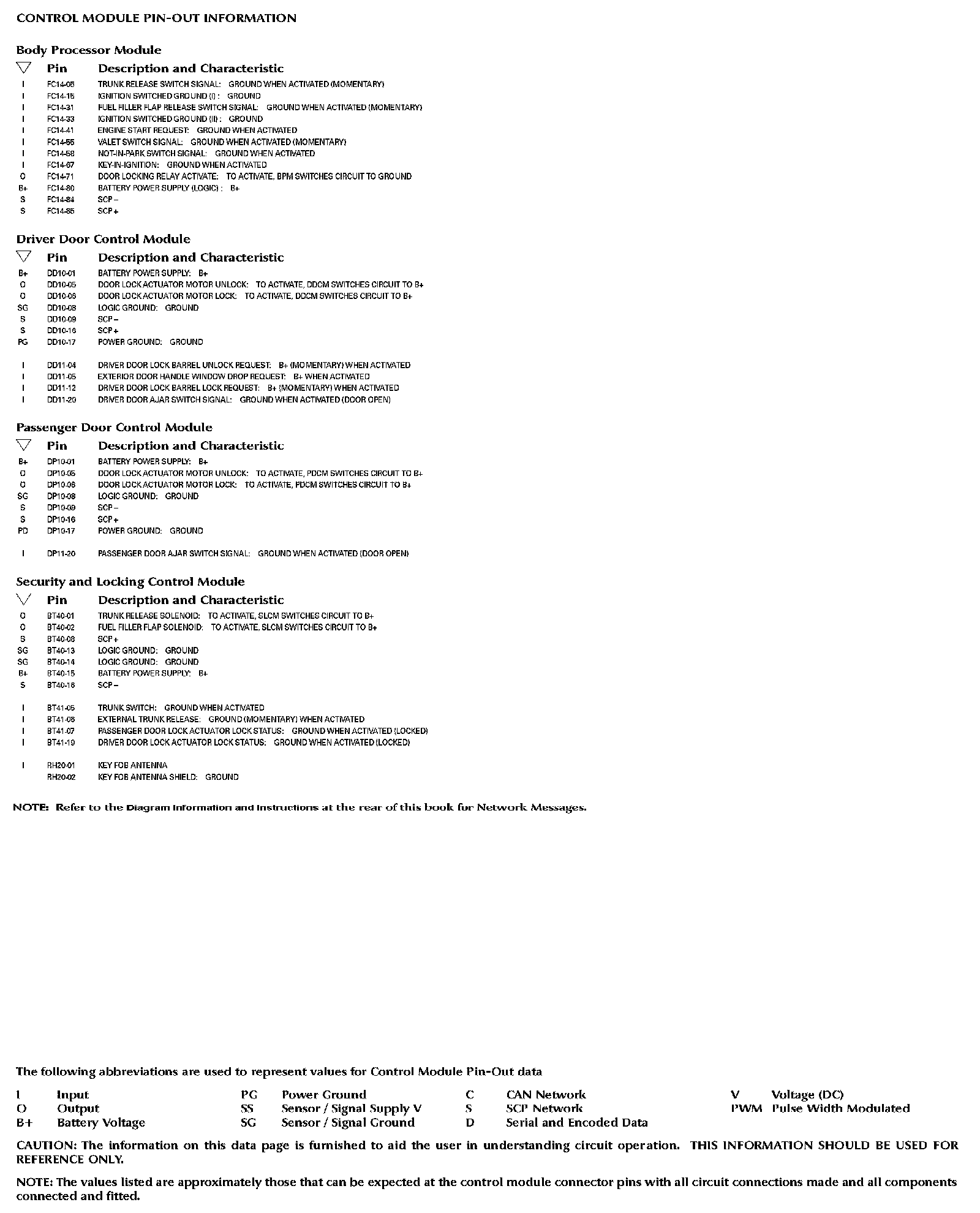

Diagram Data Sheet 13.1 (Part 1):

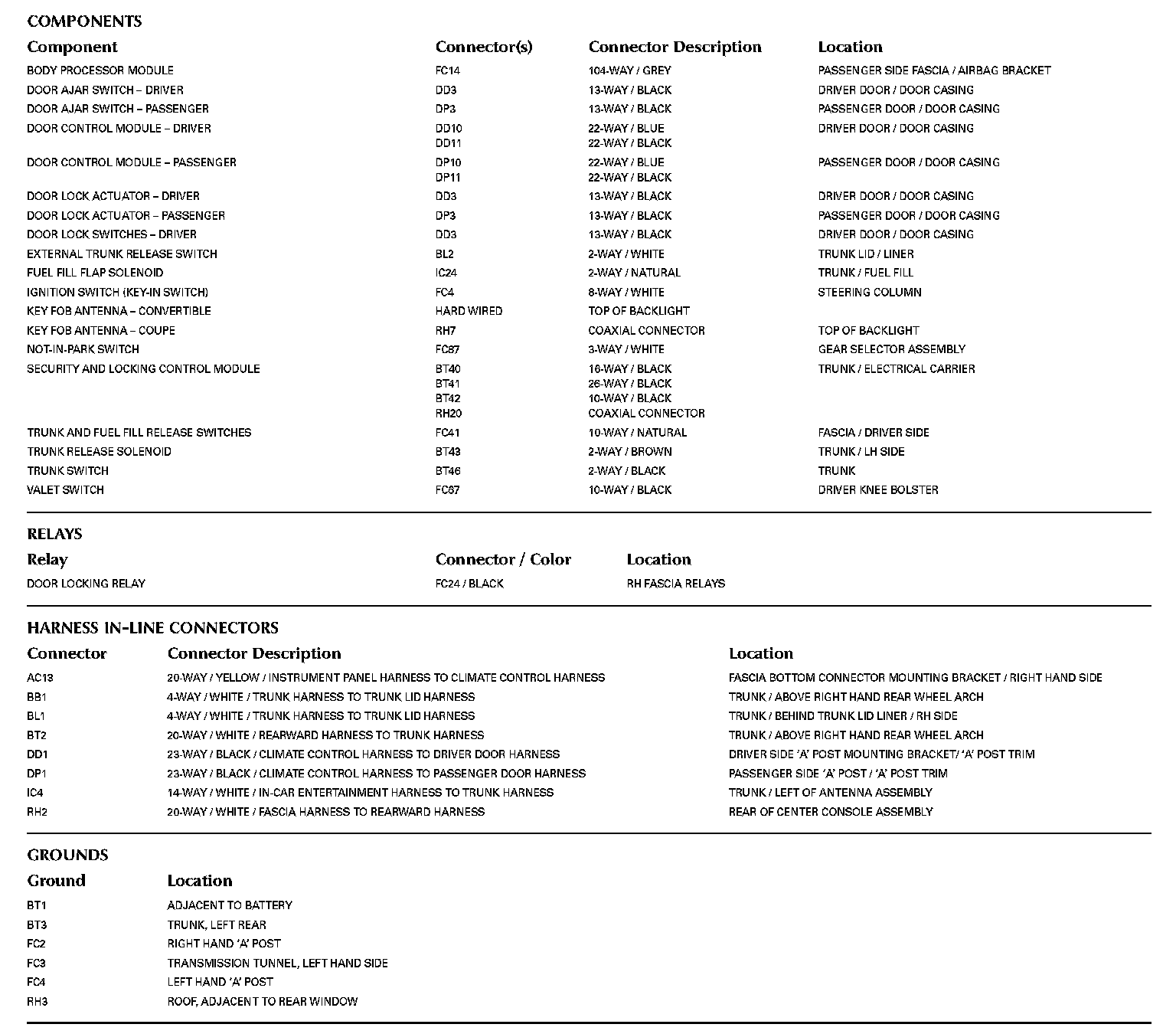

Diagram Data Sheet 13.1 (Part 2):
