Fig. 15.2(Convertible Top)



Convertible Top

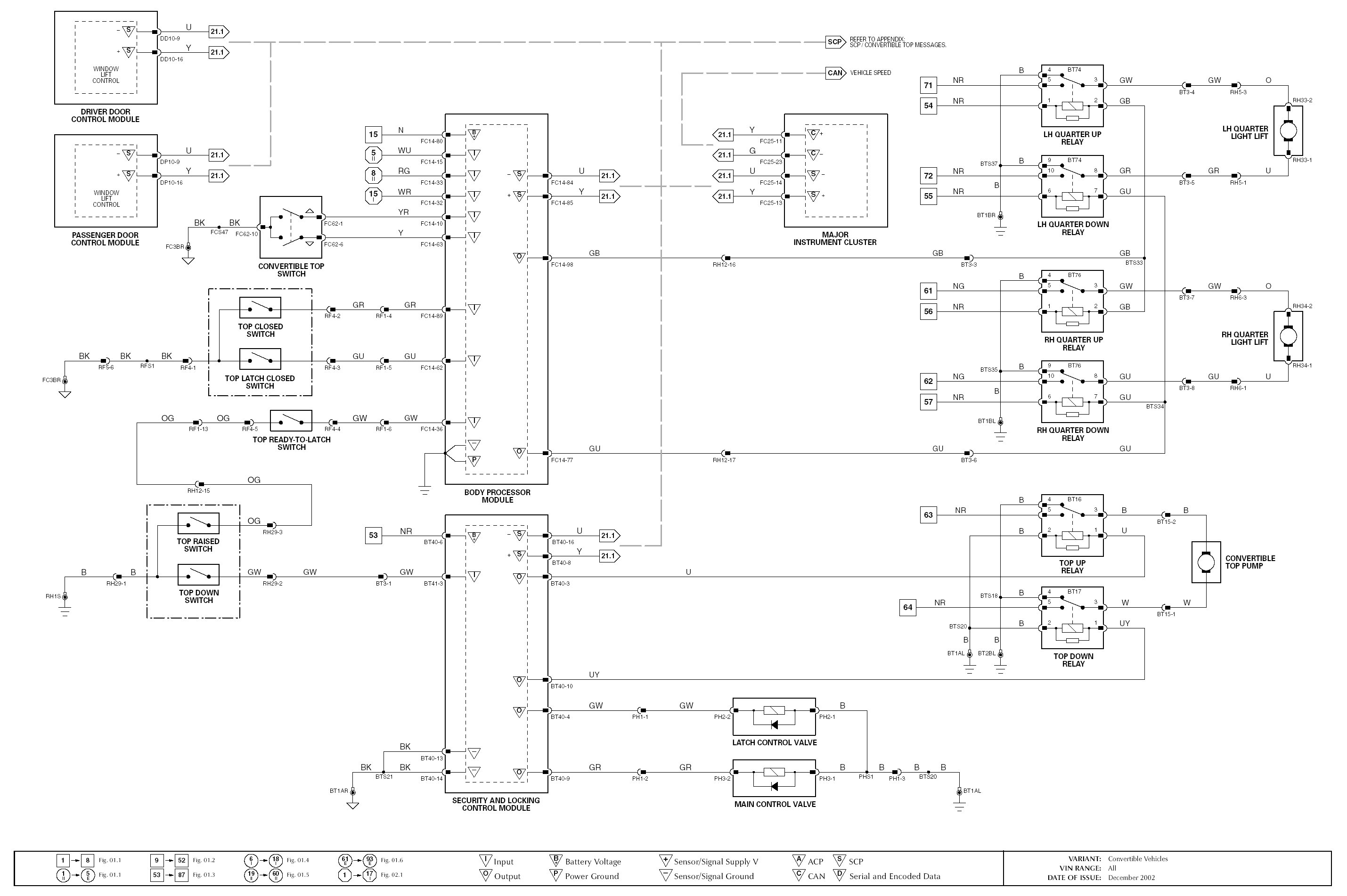

Diagram Figure 15.2:

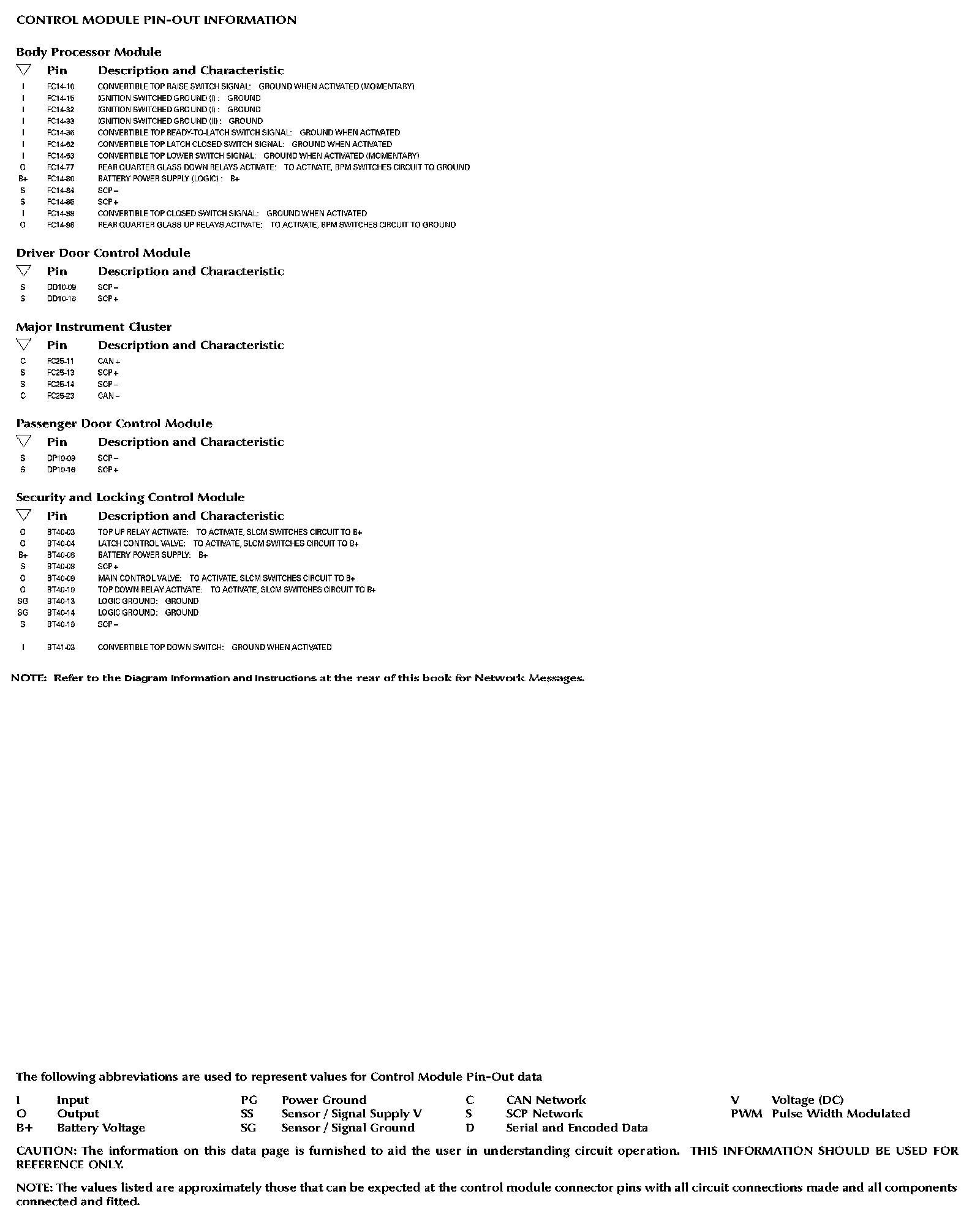

Diagram Data Sheet 15.2 (Part 1):

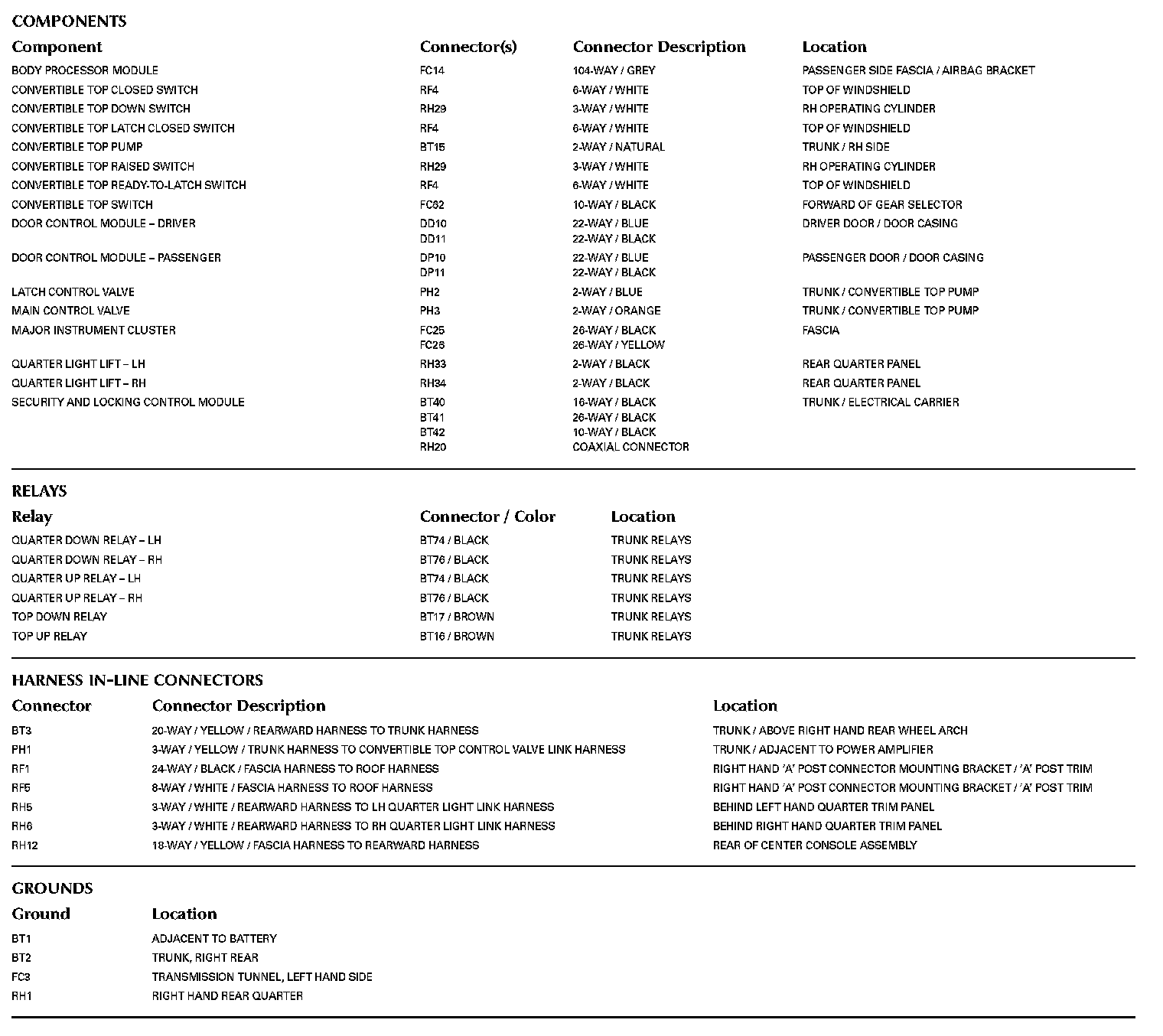

Diagram Data Sheet 15.2 (Part 2):
