Fig. 16.2(In-Car Entertainment: Premium)
Fig. 16.2(In-Car Entertainment: Premium)
In-Car Entertainment: Premium

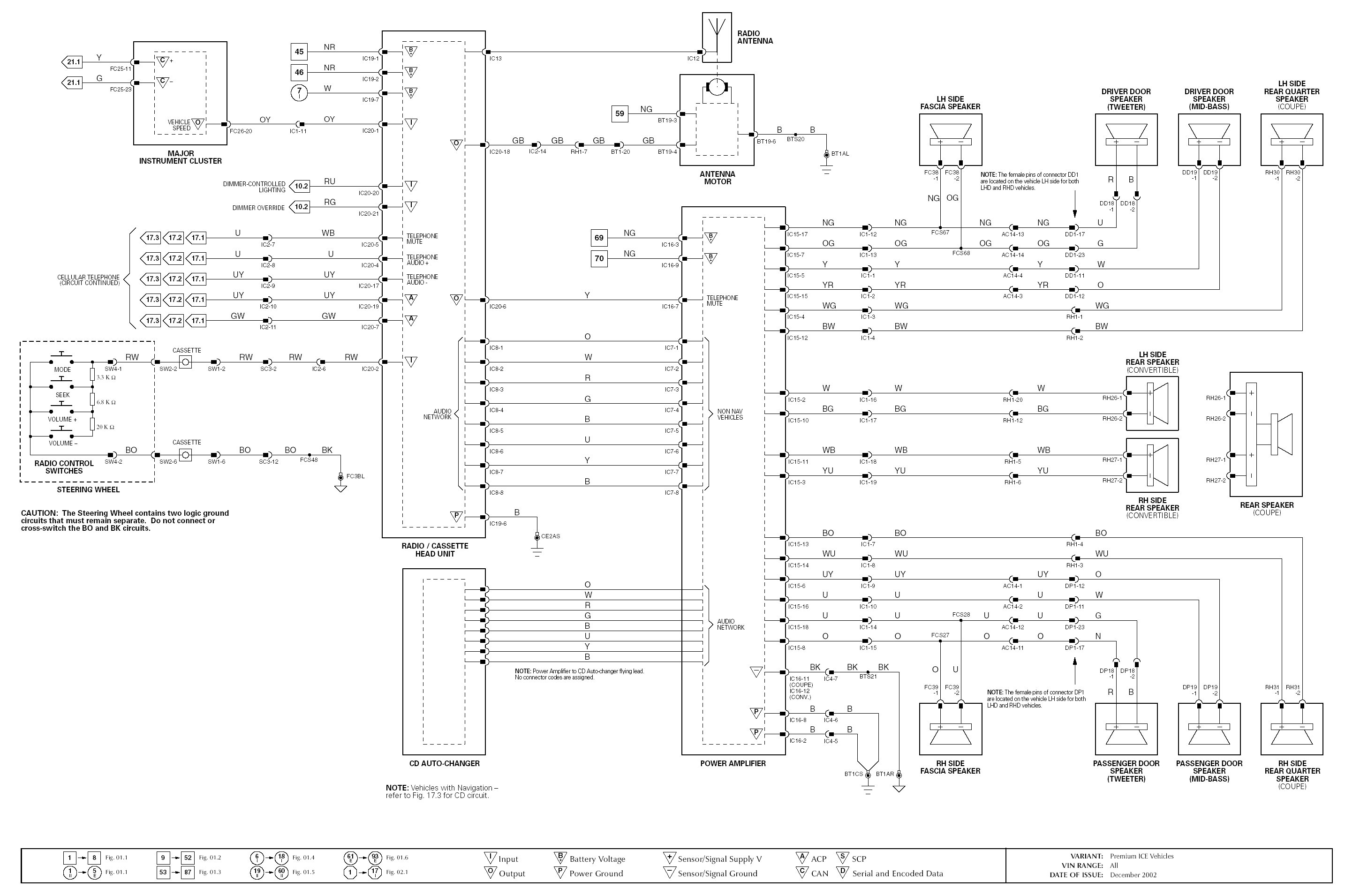

Diagram Figure 16.2:

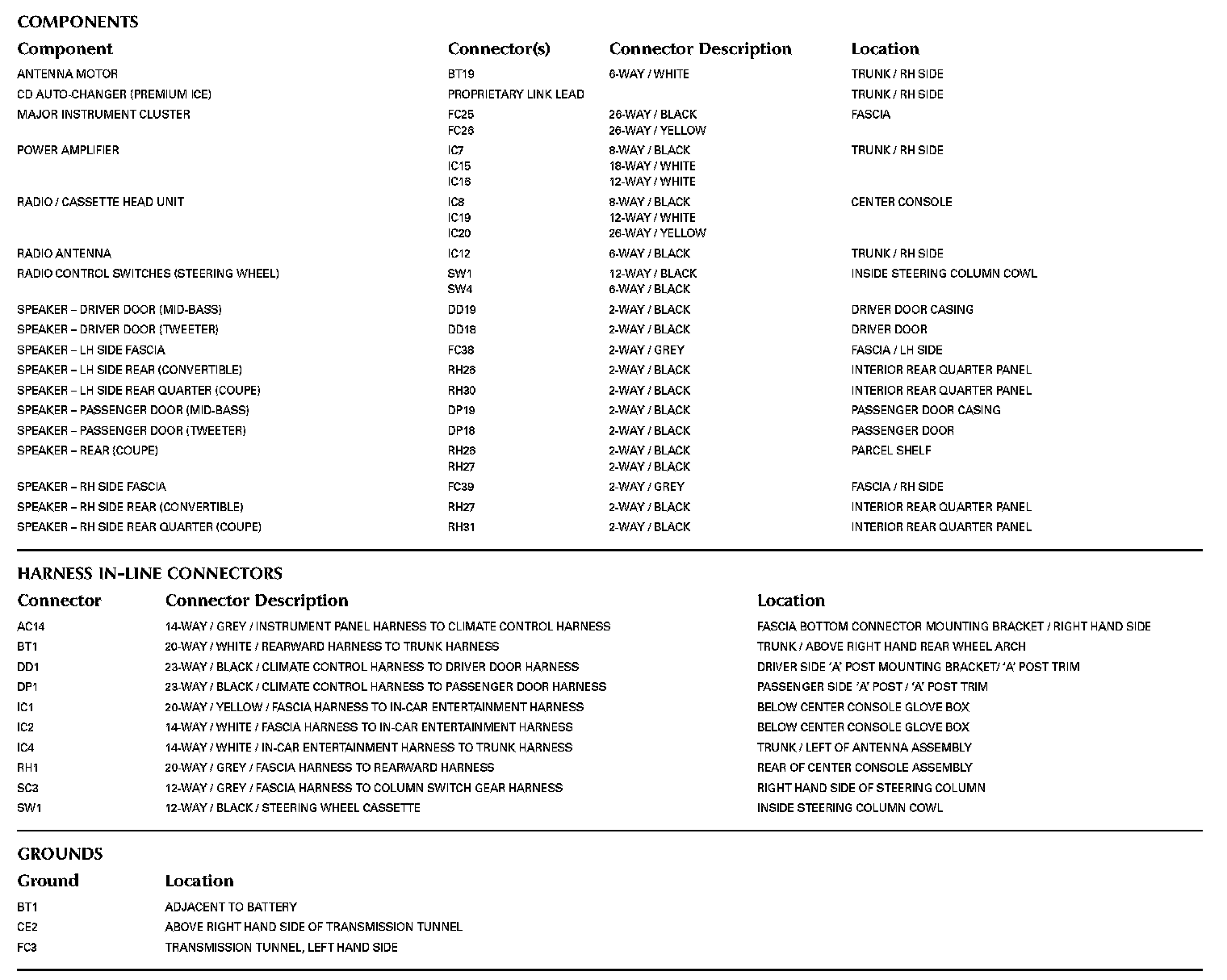

Diagram Data Sheet 16.2 (Part 1):

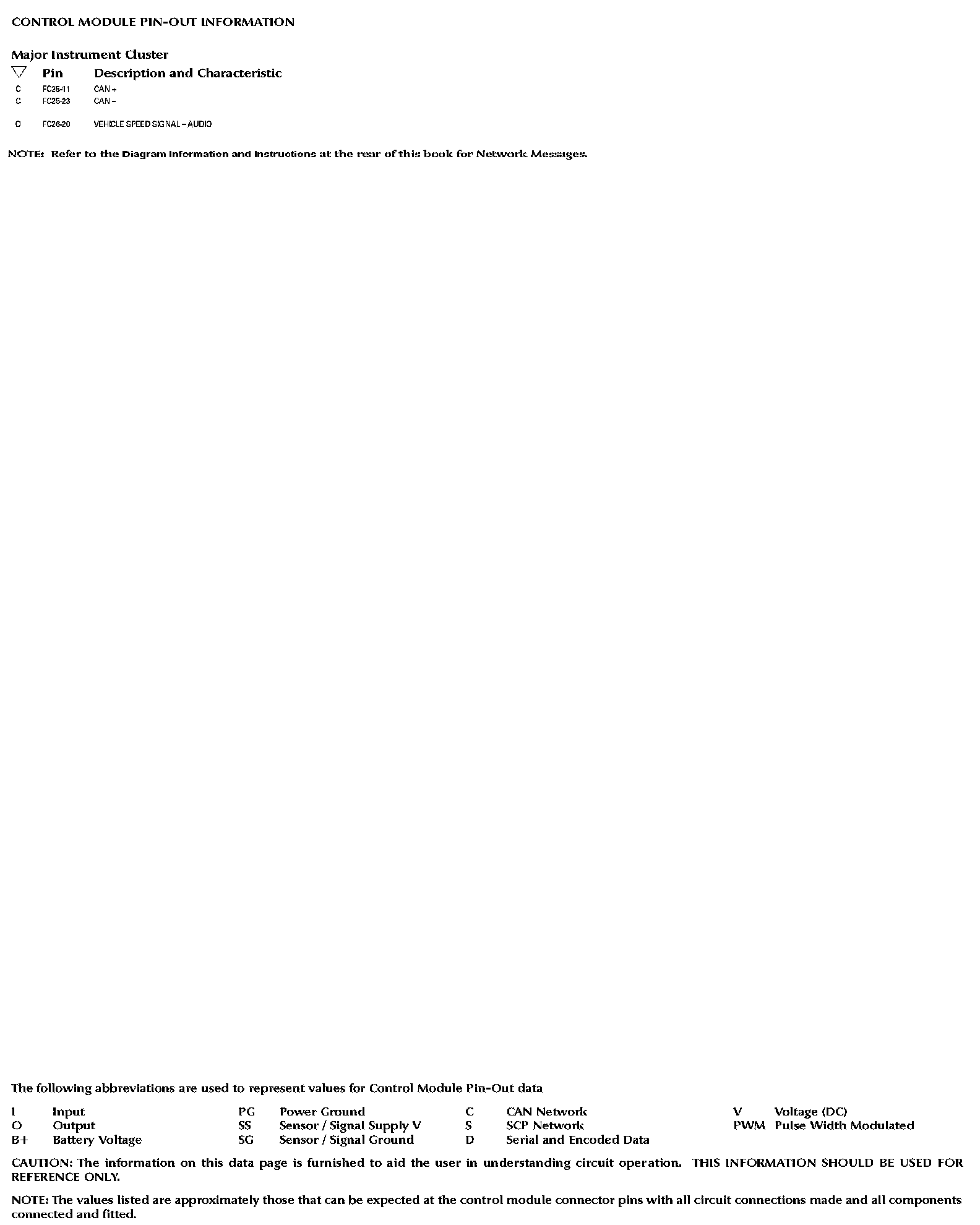

Diagram Data Sheet 16.2 (Part 2):
