Fig. 17.2(Telephone System: NAS (Early Production Vehicles))

Telephone System: NAS (Early Production Vehicles)

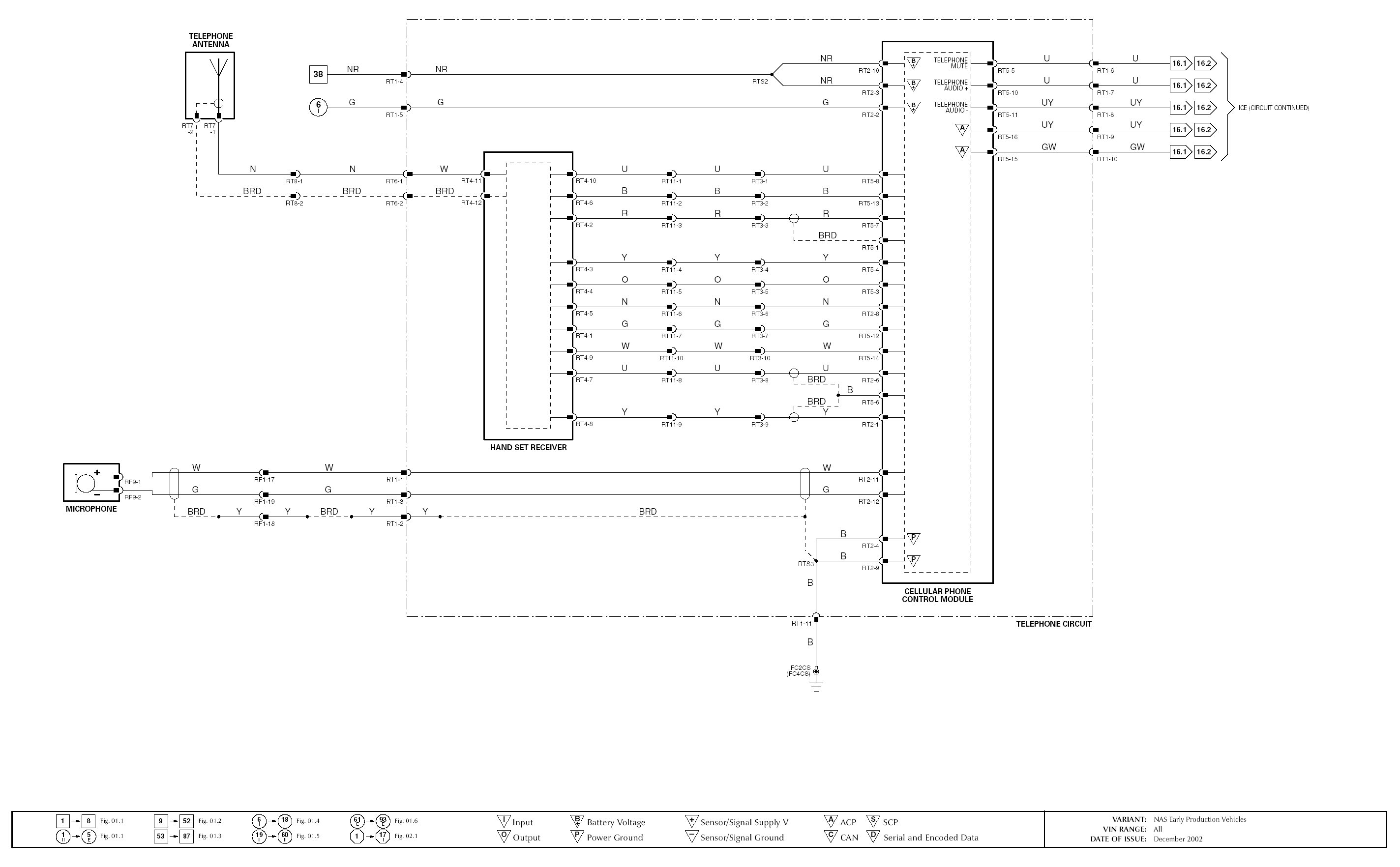

Diagram Figure 17.2:

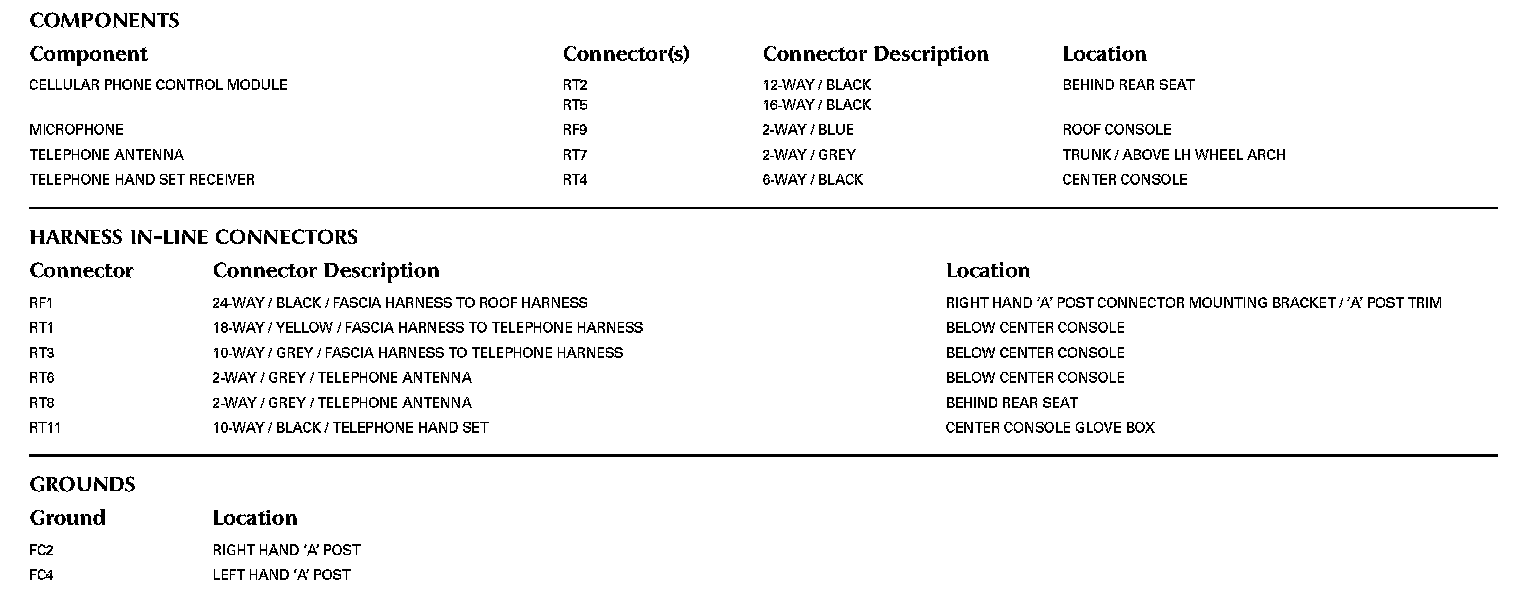

Diagram Data Sheet 17.2:
