Fig. 17.3(Telephone System: NAS (Later Production Vehicles))

Telephone System: NAS (Later Production Vehicles)

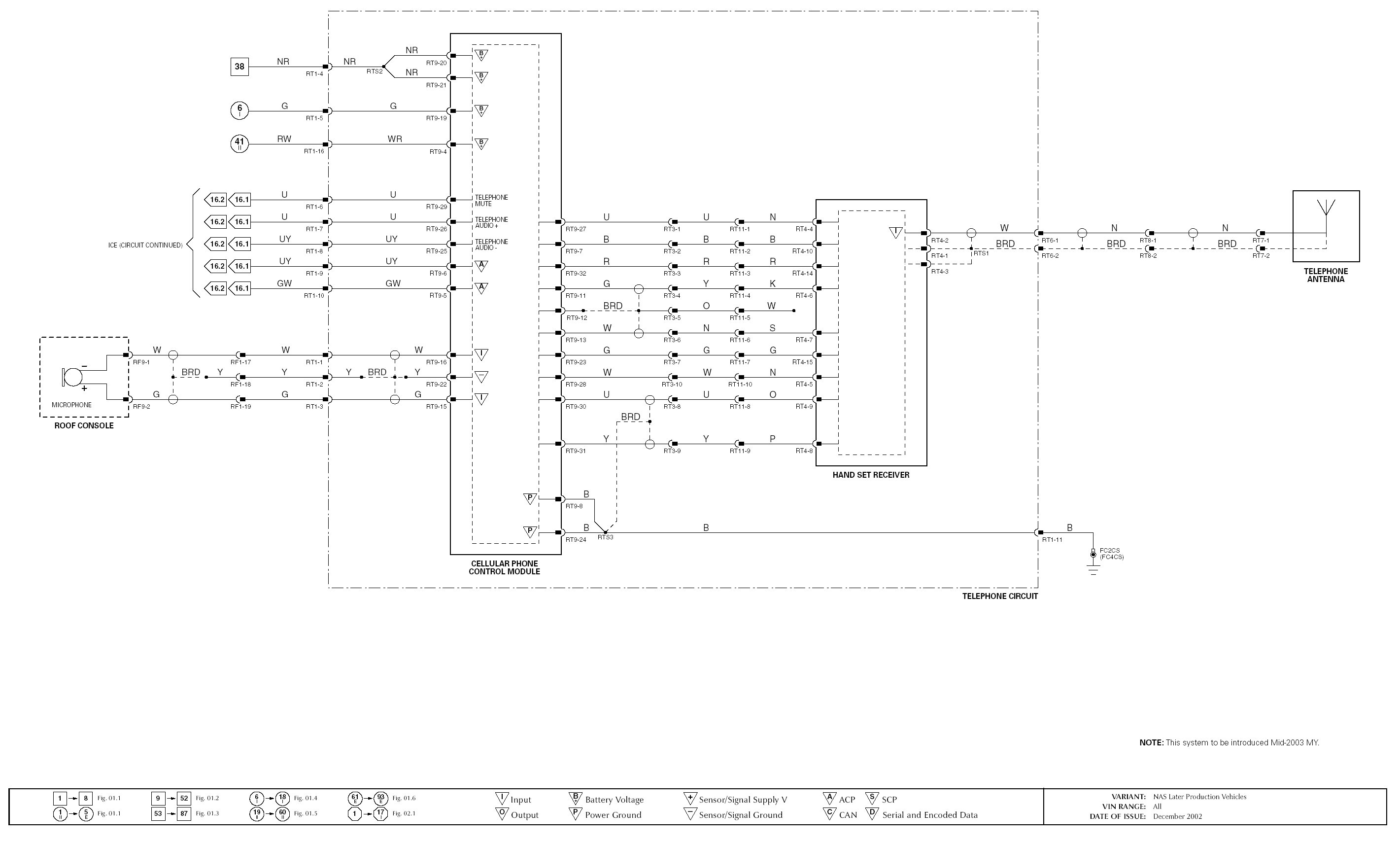

Diagram Figure 17.3:

Diagram Data Sheet 17.3:
