Fig. 17.4(Navigation System)
Fig. 17.4(Navigation System)
Navigation System

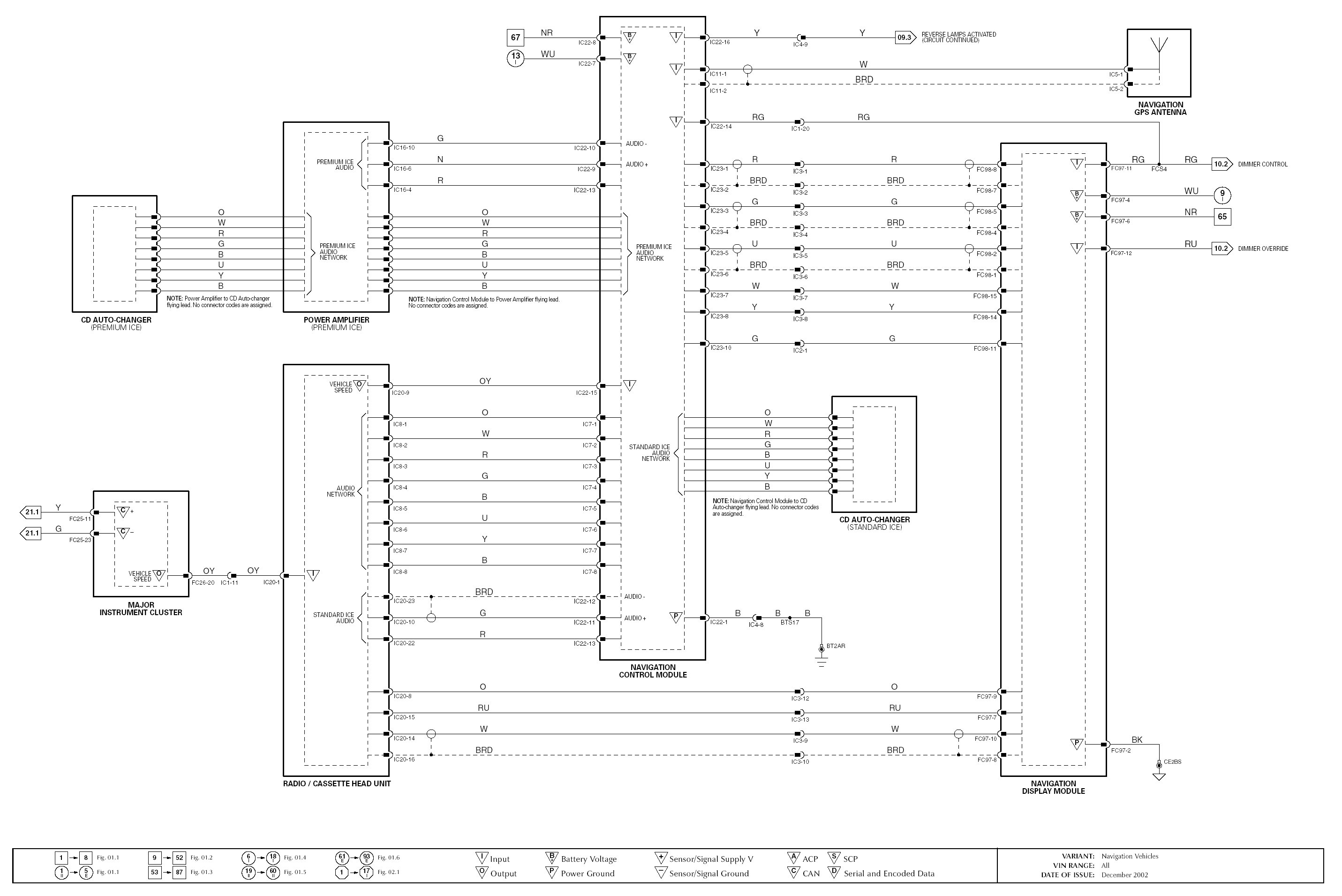

Diagram Figure 17.4:

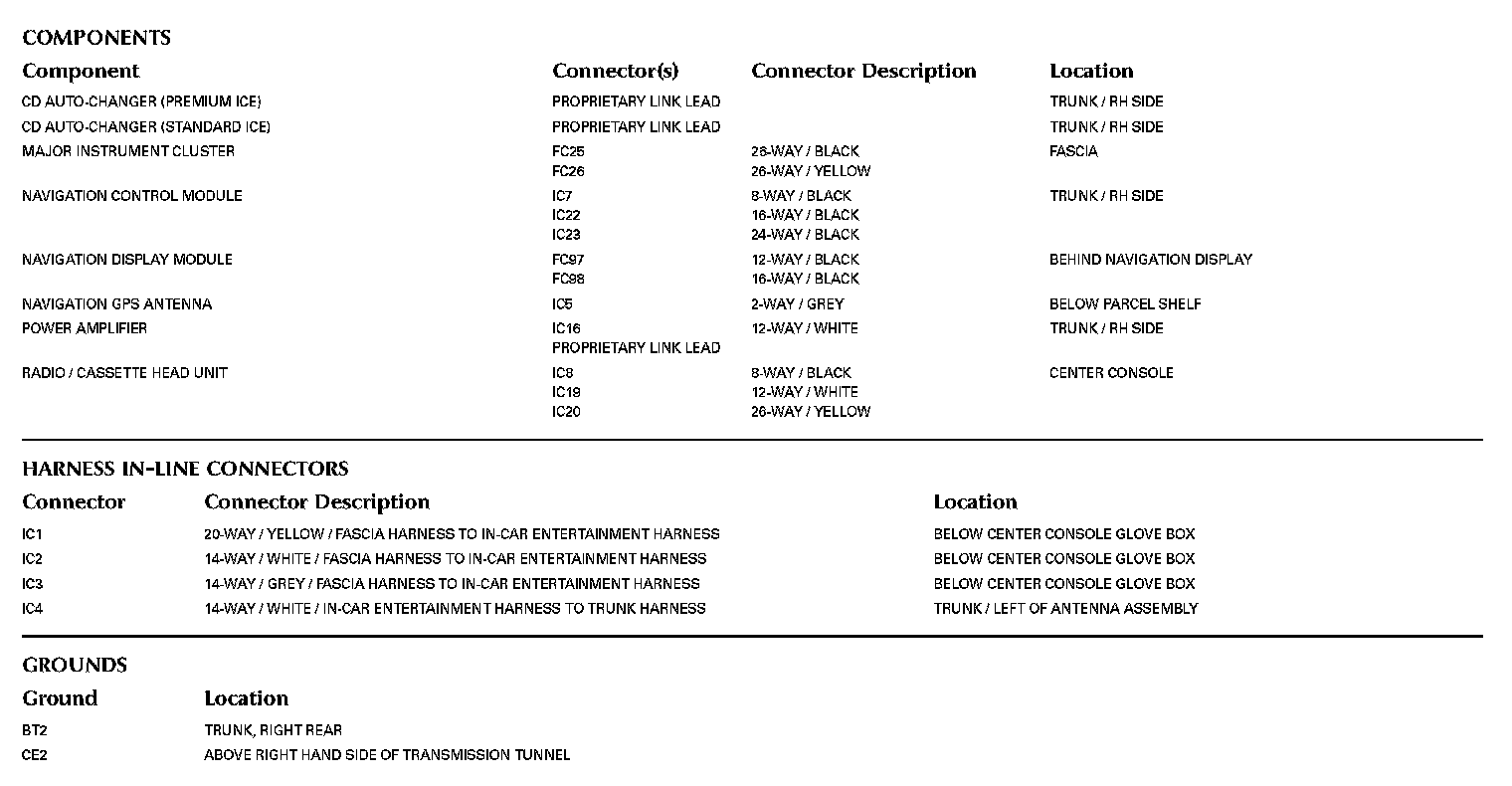

Diagram Data Sheet 17.4:
