Home >> Jaguar >> 2007 >> S-Type (X200) V8-4.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations

Computers and Control Systems: Locations

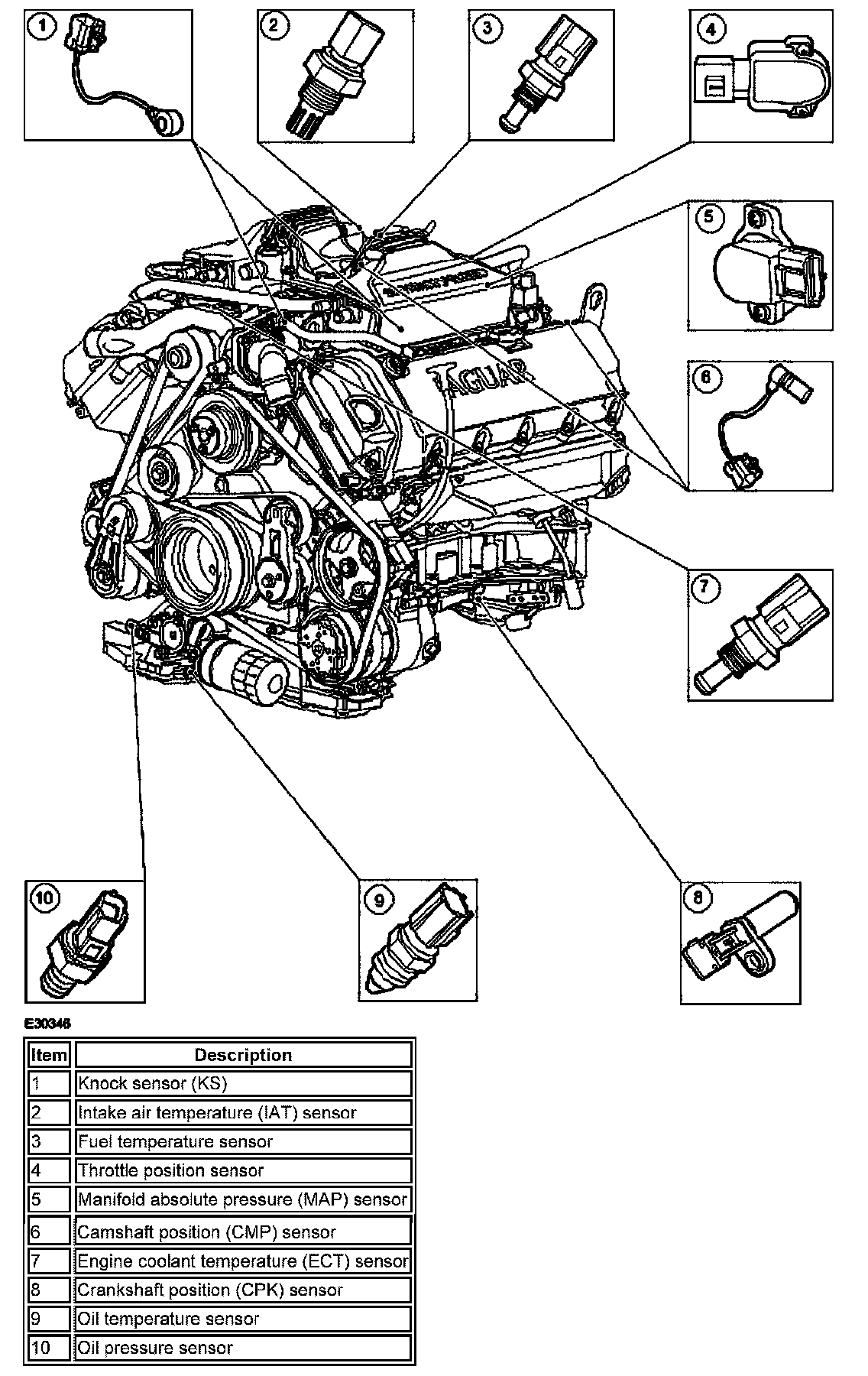

Electronic Engine Controls - Vehicle With Supercharger:

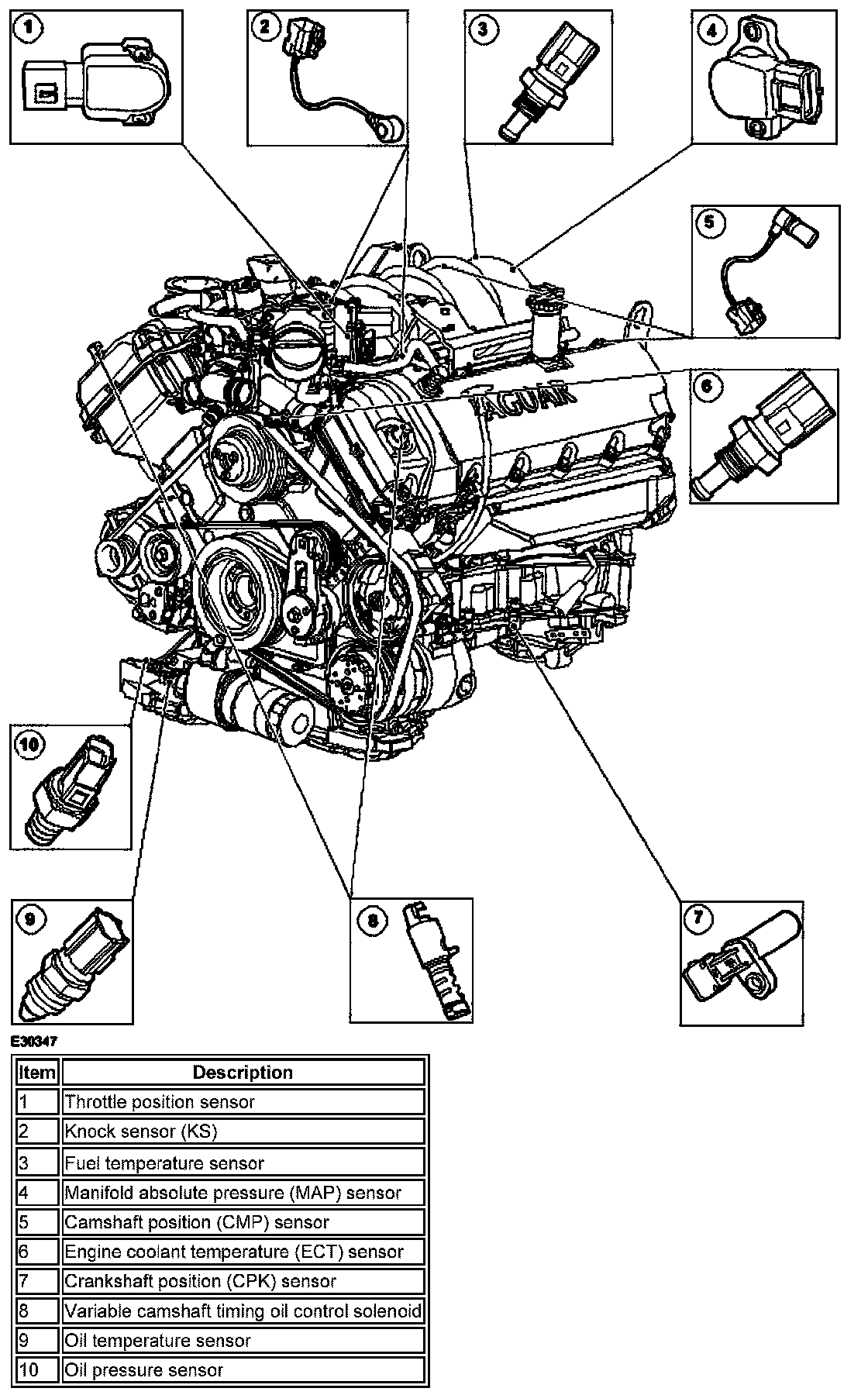

Electronic Engine Controls - Vehicle Without Supercharger Part 1:
