Parking Brake System: Description and Operation

Parking Brake

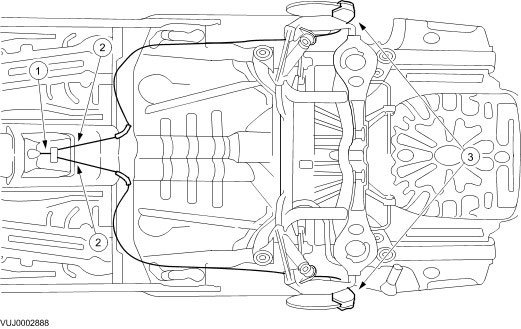

Parking Brake (Part 1):




Parking Brake (Part 2):





The parking brake control system is cable-operated and controlled by an independent hand-operated parking brake control lever. The parking brake control lever activates the rear brake calipers through a cable and rear caliper lever with a ball in ramp mechanism. The rear caliper self adjusts to compensate for pad wear through hydraulic operation.

To adjust the cable, operate the parking brake control lever several times.
