Control Module HVAC

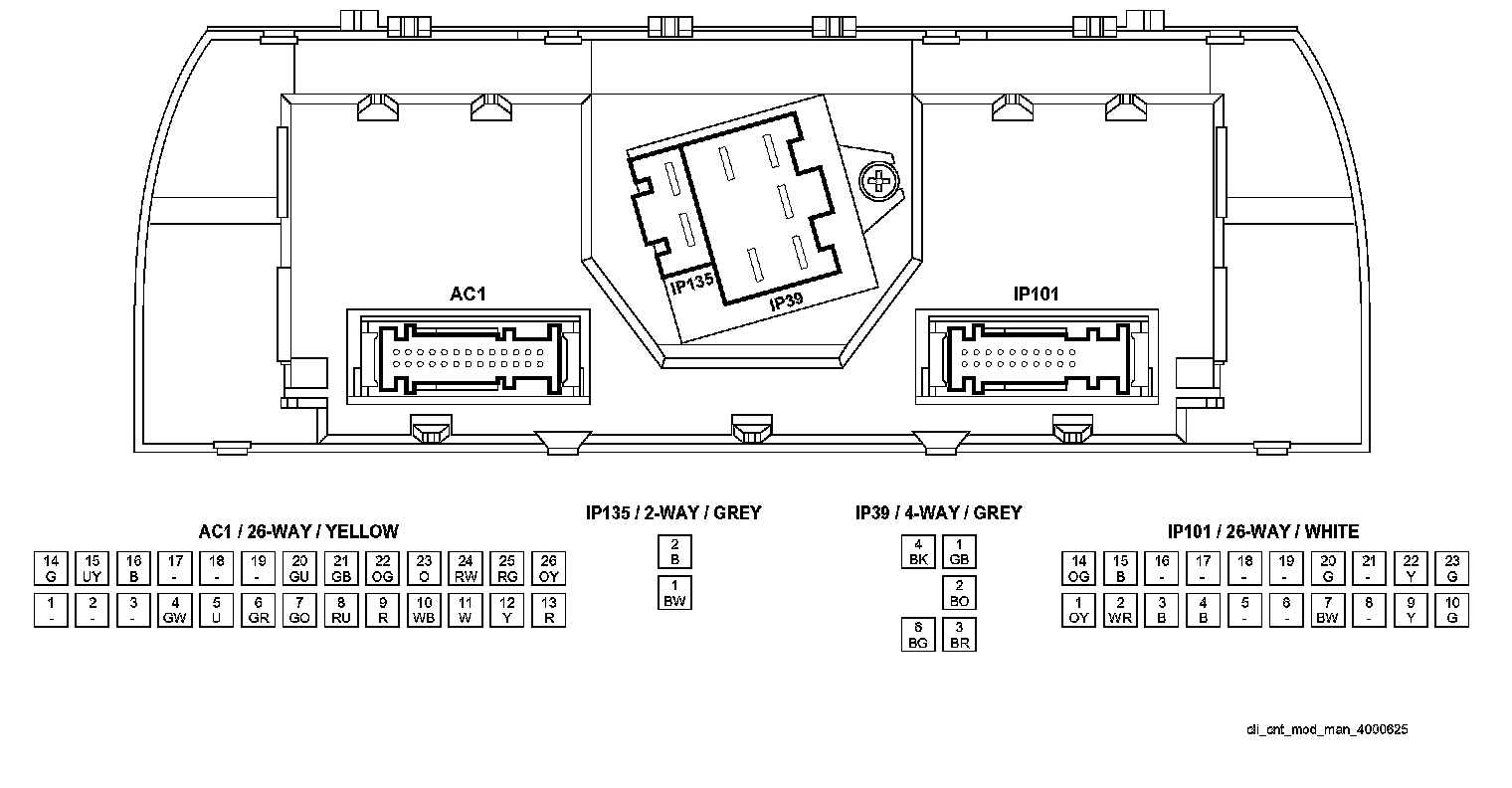

Climate Control Module - Automatic (Remote):

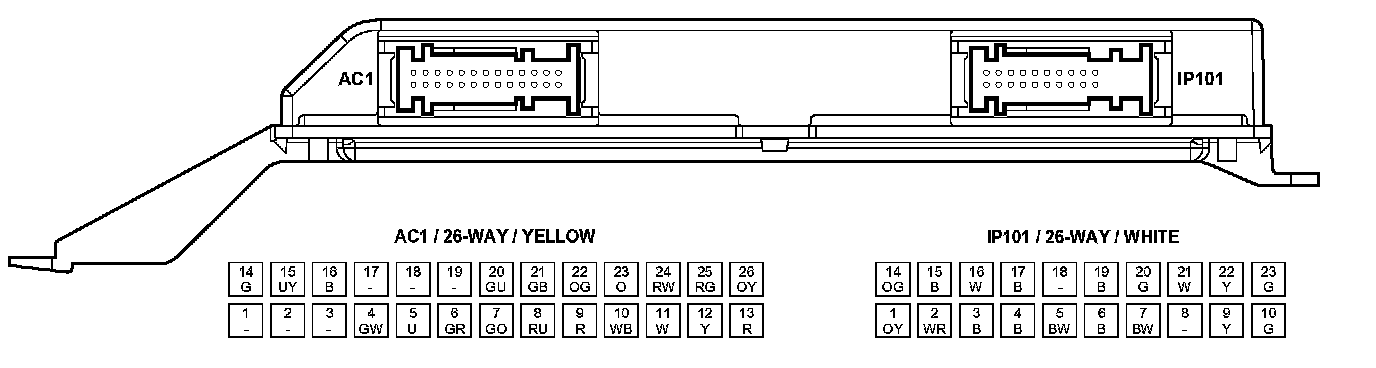

Climate Control Module - Automatic (Panel):

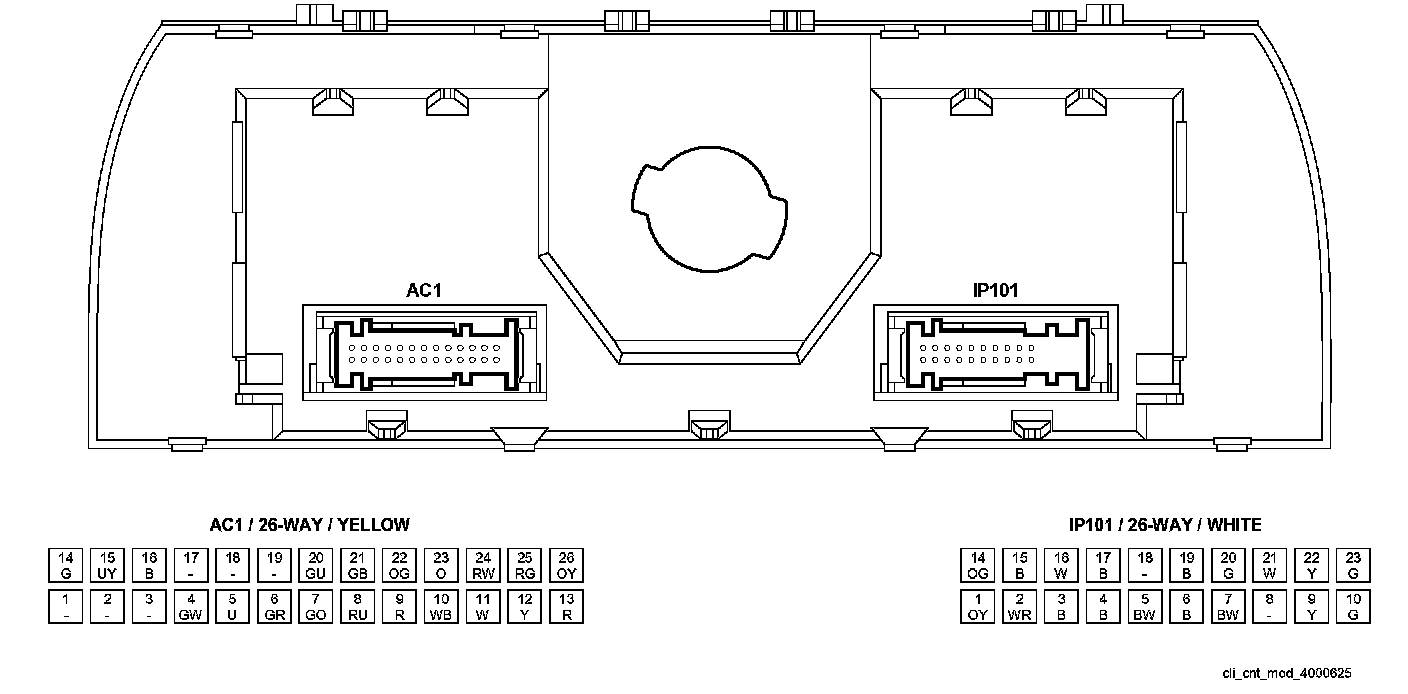

Climate Control Module - Manual (Panel):
