Blower Motor: Service and Repair

Blower Motor (82.25.66)

Removal

1. Remove the blower motor lower cover.

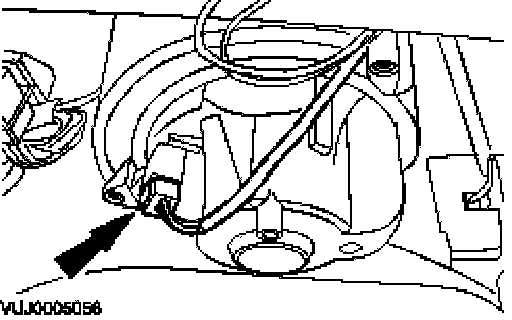

2. Disconnect the electrical connector.







3. Remove the blower motor.
- Remove the blower motor retaining screws.







Installation

1. To install, reverse the removal procedure.
