Solar Sensor: Service and Repair

Sunload Sensor (82.20.70)

Removal

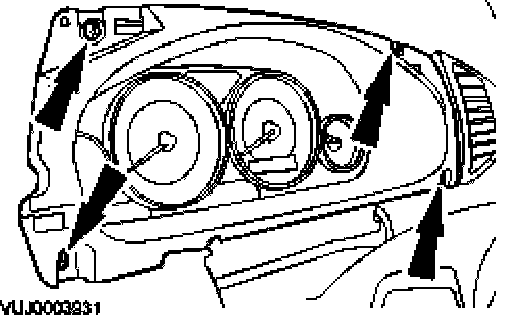

1. Remove the instrument cluster and vent finish panel.







2. Remove the instrument cluster finish panel.







3. Remove the side air vent.







4. Disconnect the sunload sensor electrical connector.

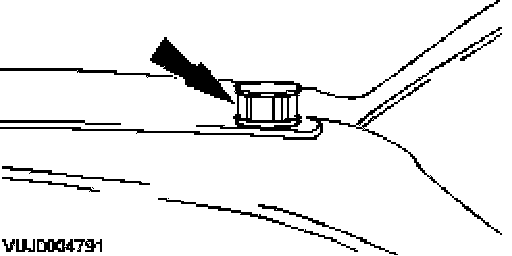

5. Remove the sunload sensor.







Installation

1. To install, reverse the removal procedure.
