Drive Belt: Diagrams
Accessory Drive
2.0L, 2.5L and 3.0L engine

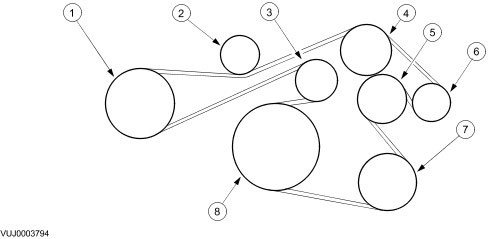

2.0L, 2.5L And 3.0L Engine (Part 1):

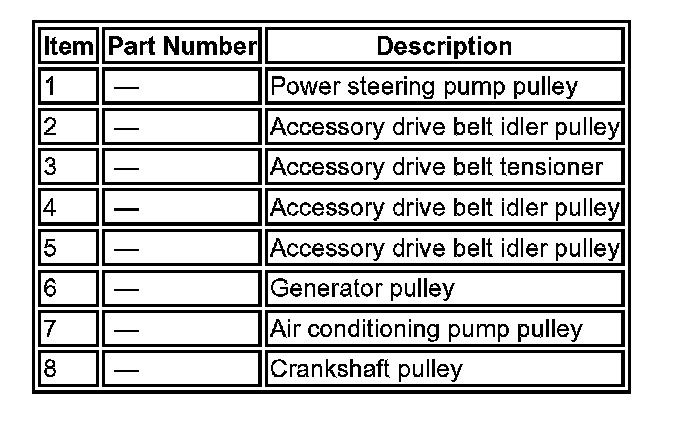

2.0L, 2.5L And 3.0L Engine (Part 2):
