Headlamp Washer Pump: Service and Repair

Headlamp Washer Pump (84.20.21)

Removal
1. Remove the wheel and tire.

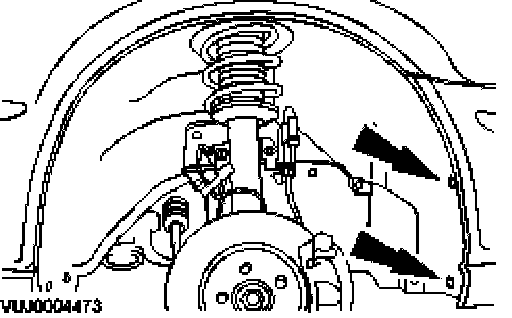

2. Detach the wheel arch liner.







3. Remove the undertray.

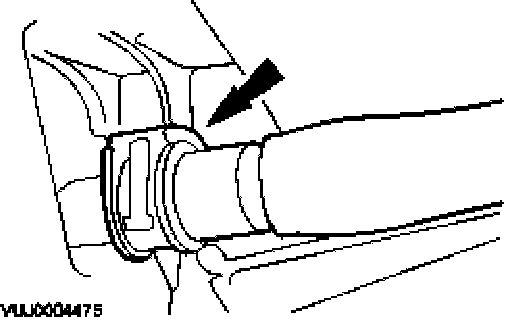

4. Disconnect the headlamp washer supply hose.







5. Remove the headlamp washer pump.
1. Disconnect the headlamp washer pump electrical connector.
2. Remove the headlamp washer pump.







Installation
1. To install, reverse the removal procedure.
