Wiper Motor Linkage: Service and Repair

Wiper Mounting Arm and Pivot Shaft (84.15.24)

Removal
1. Remove the plenum cover.

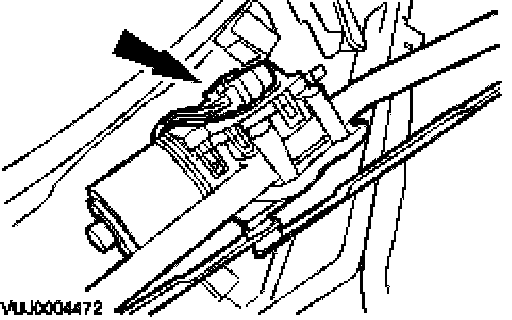

2. Detach the mounting arm and pivot shaft assembly.

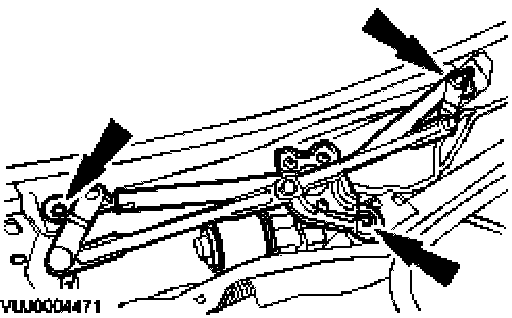

3. Remove the mounting arm and pivot shaft assembly







Installation
1. To install, reverse the removal procedure.
- Tighten to 8 Nm.
