Wiper Pivot: Service and Repair

Wiper Pivot Arm (84.15.03)

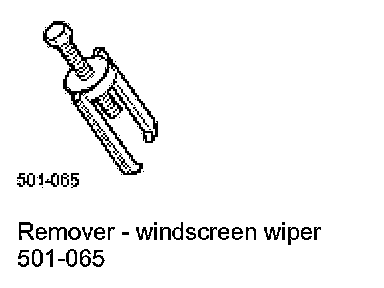

Special Service Tools







Removal

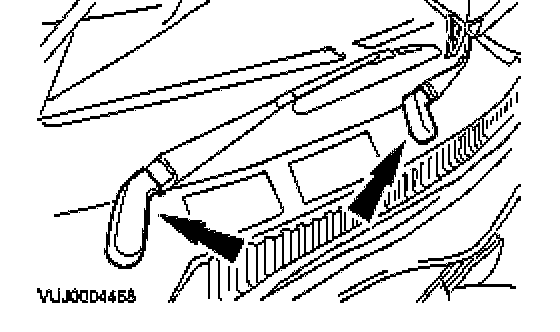

1. Remove the wiper arm nut covers

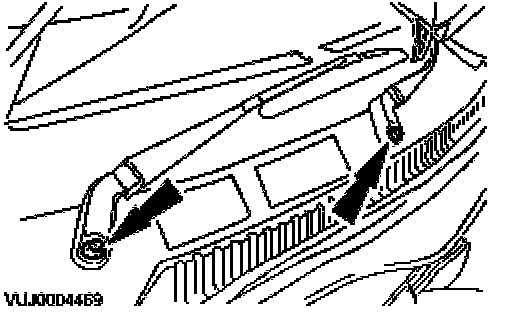

2. Remove the wiper arm nuts.

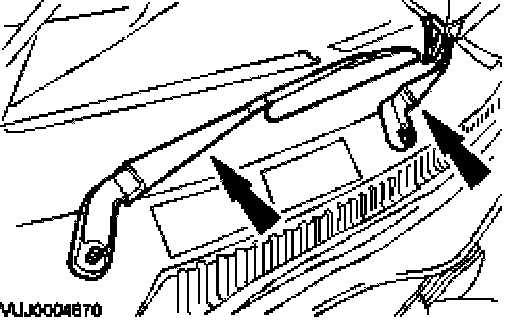

3. Using the special tool, detach the wiper arms.







4. Remove the wiper arms







Installation
1. To install, reverse the removal procedure.
- Tighten to 17 Nm.
