Fig. 15.1 (In-Car Entertainment: Premium)
Fig. 15.1 (In-Car Entertainment: Premium)
H��ADiagram Figure 15.1:

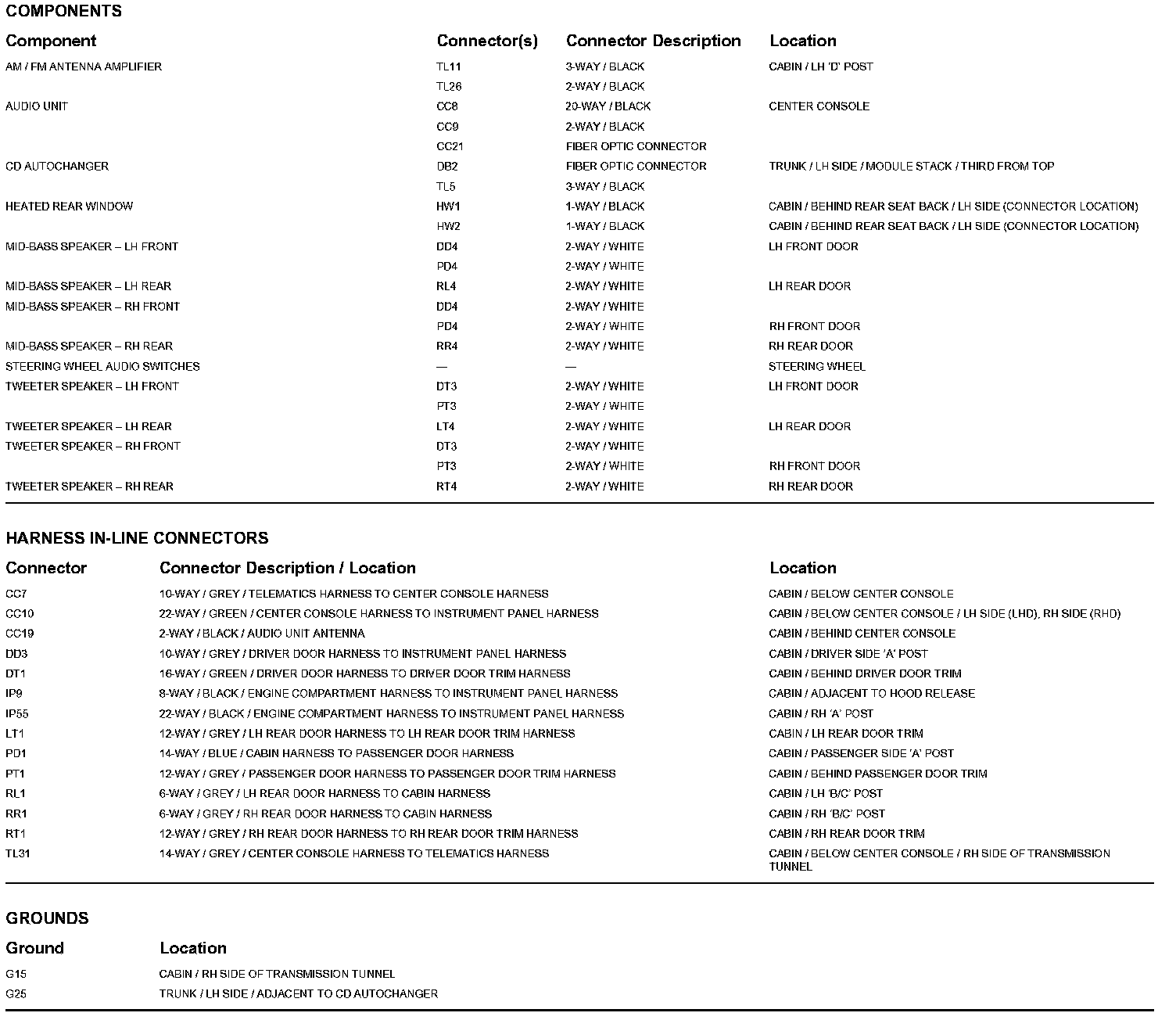

Diagram Data Sheet 15.1 (Part-1):
Diagram Data Sheet 15.1 (Part-2):
