Home >> Jaguar >> 2007 >> XJ (X350) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Figure Number >> Fig. 15.2 (In-Car Entertainment: Audiophile)

Fig. 15.2 (In-Car Entertainment: Audiophile)

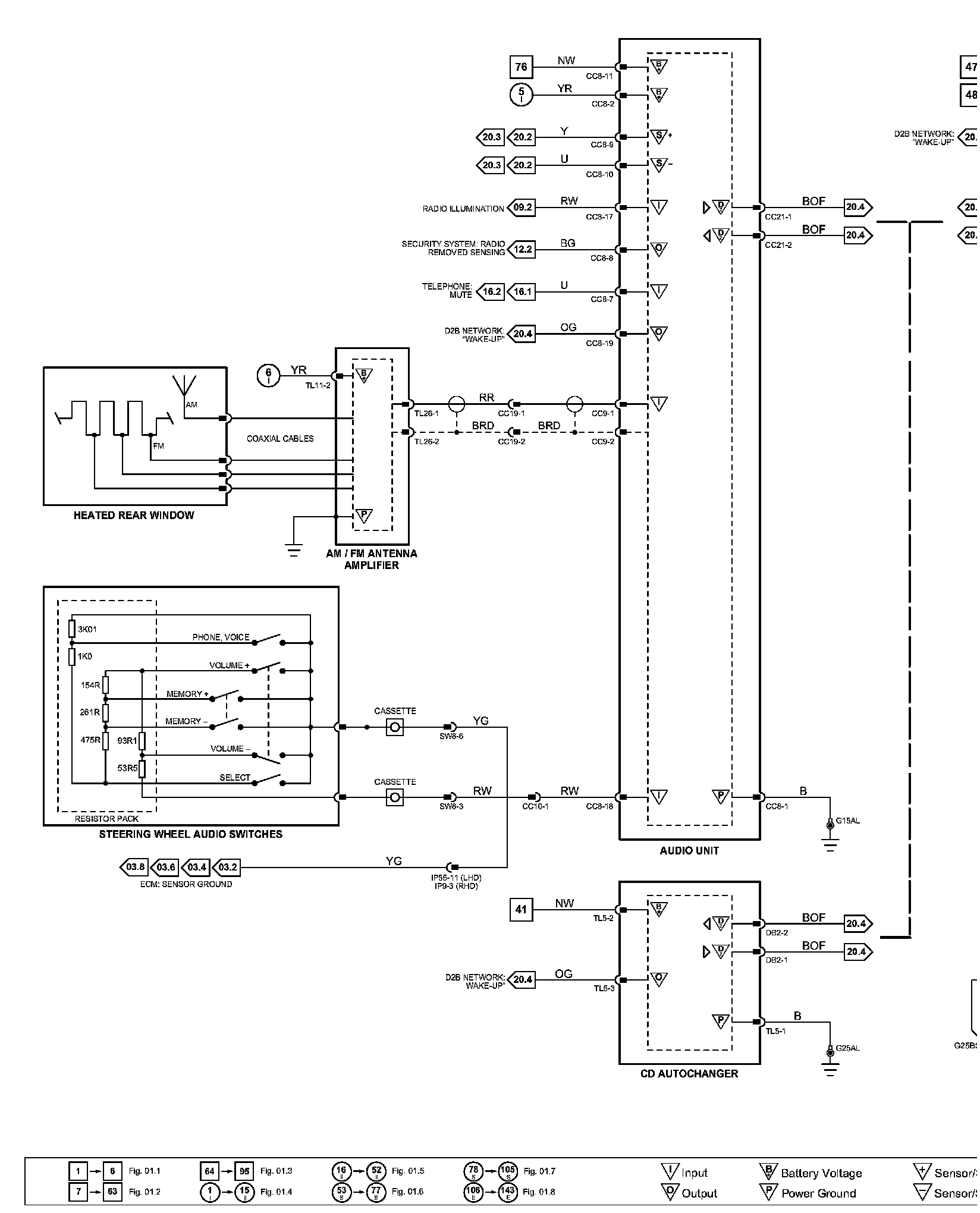

�ADiagram Figure 15.2:

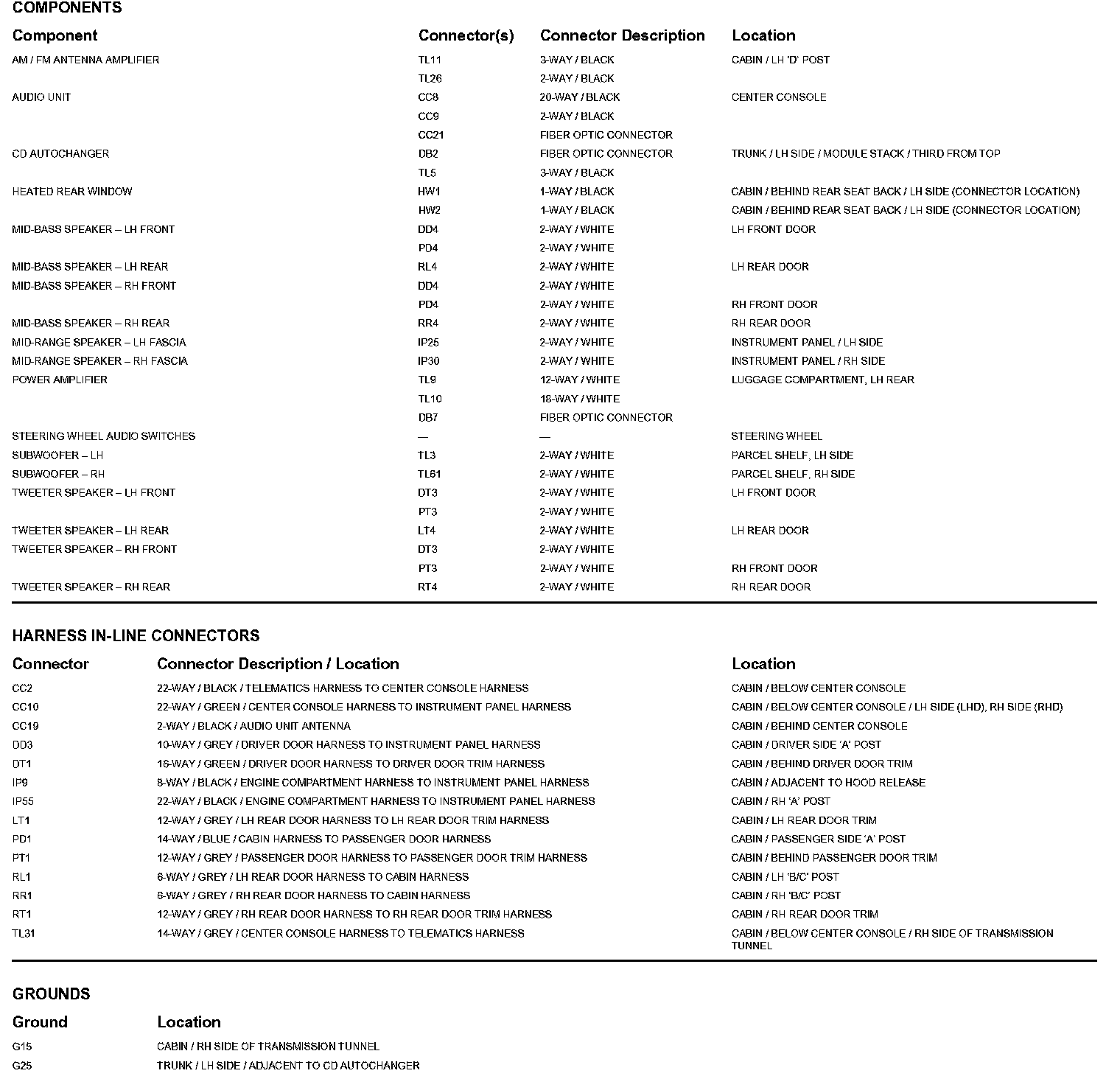

Diagram Data Sheet 15.2 (Part-1):

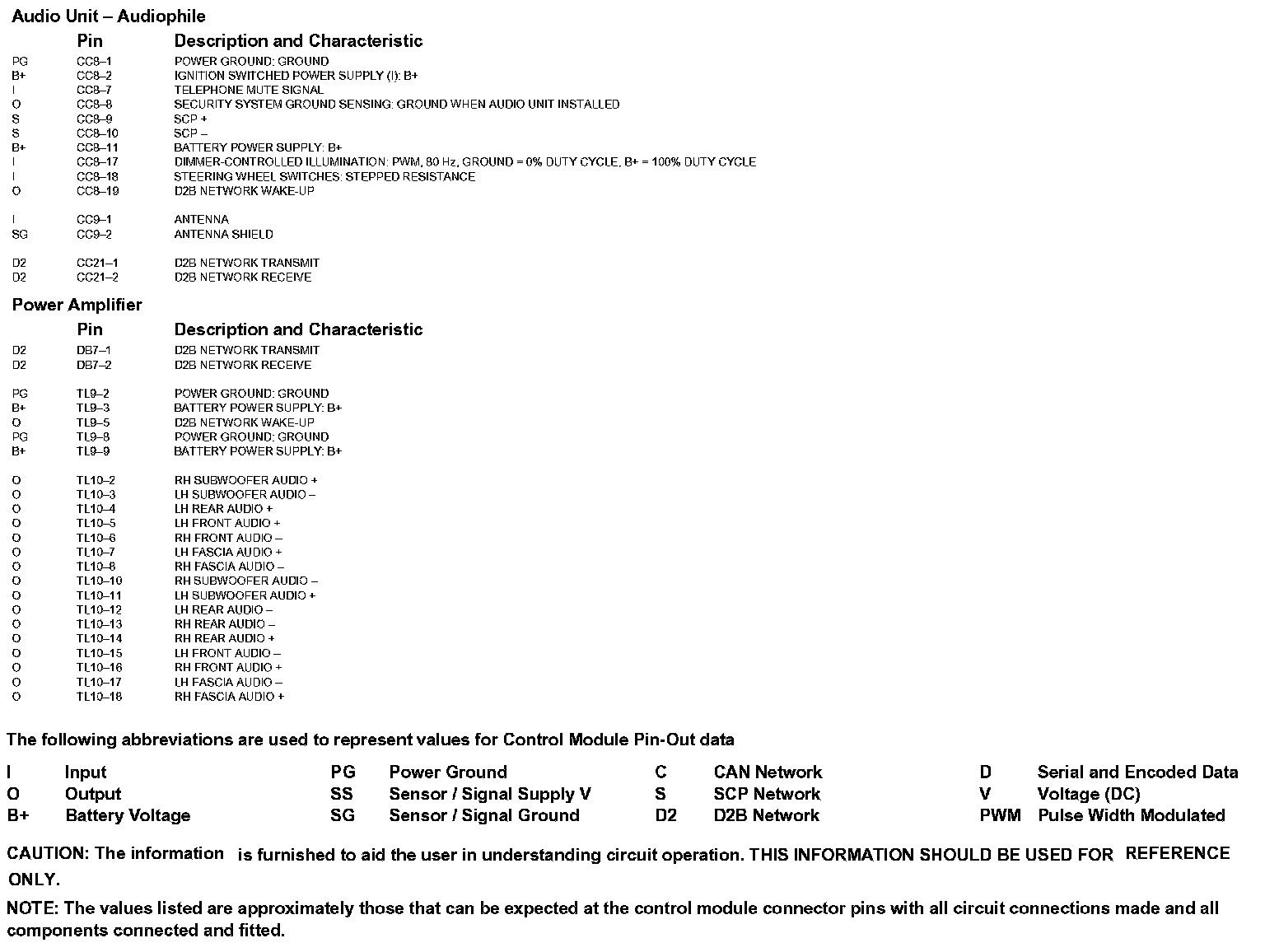

Diagram Data Sheet 15.2 (Part-2):
