Fig. 03.3 (Engine Management - Part 1)

T��&Diagram Figure 03.3:



Diagram Data Sheet 03.3 (Part-1):

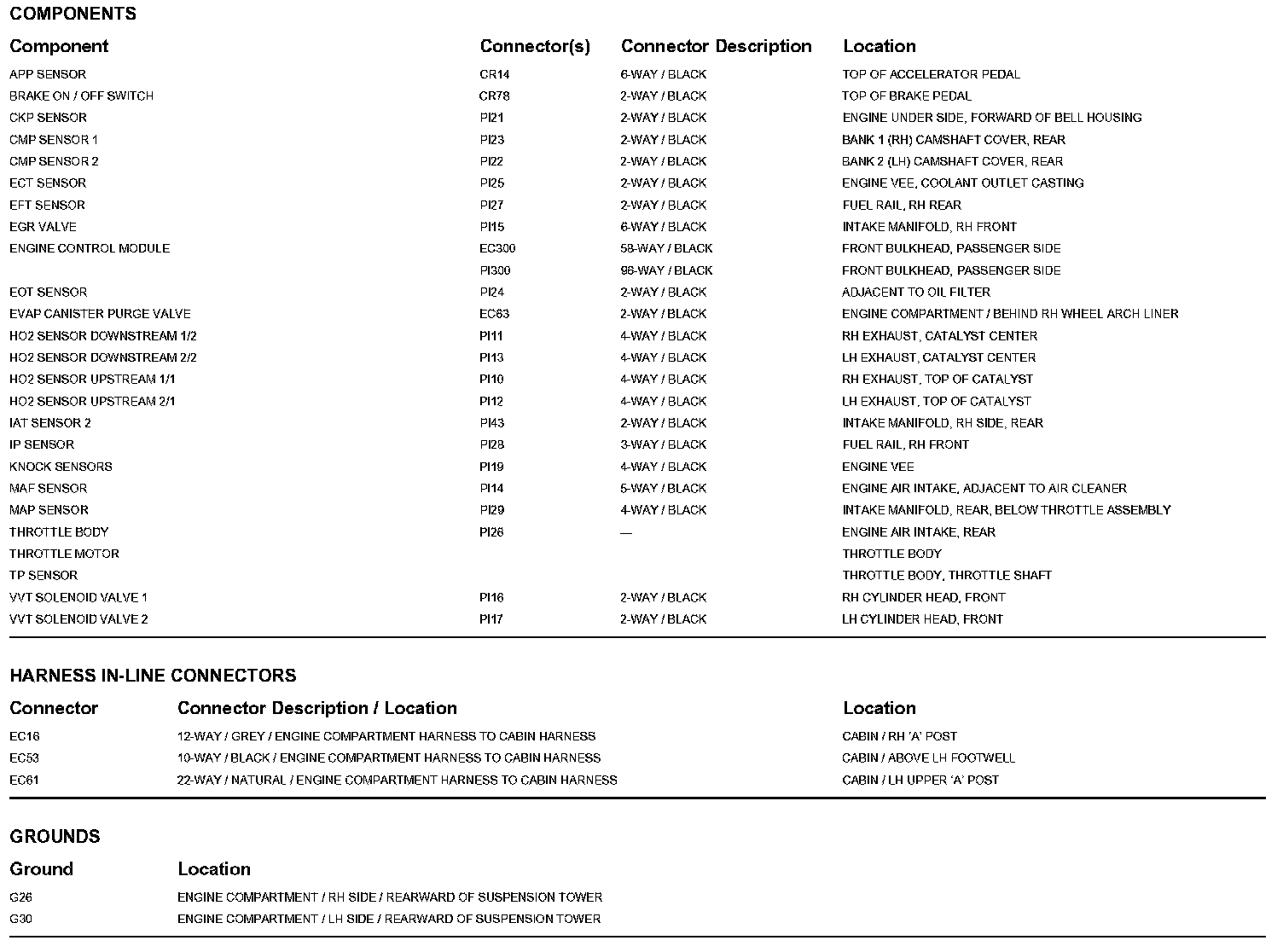

Diagram Data Sheet 03.3 (Part-2):
