Fig. 03.4 (Engine Management - Part 2)

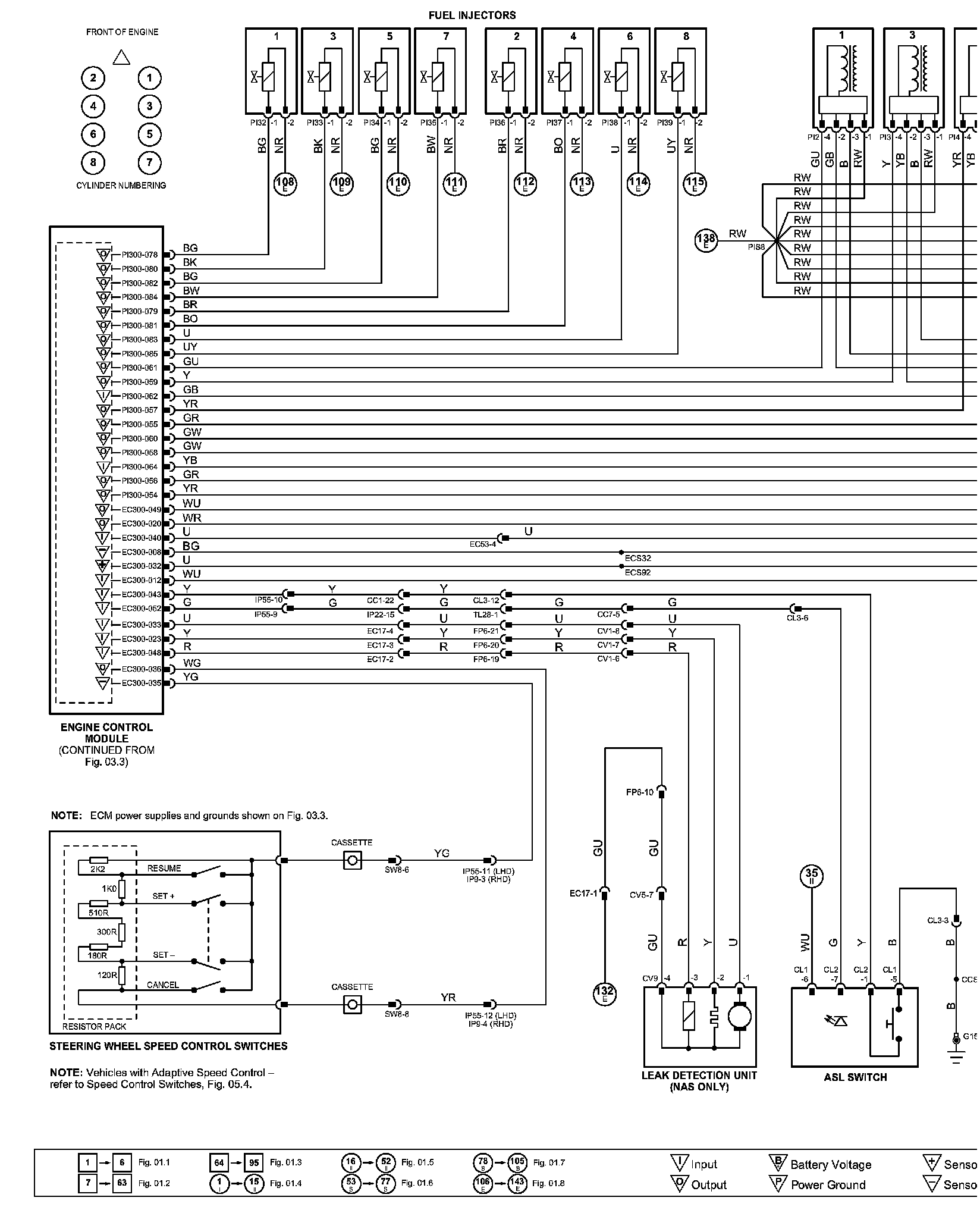

U��&Diagram Figure 03.4:

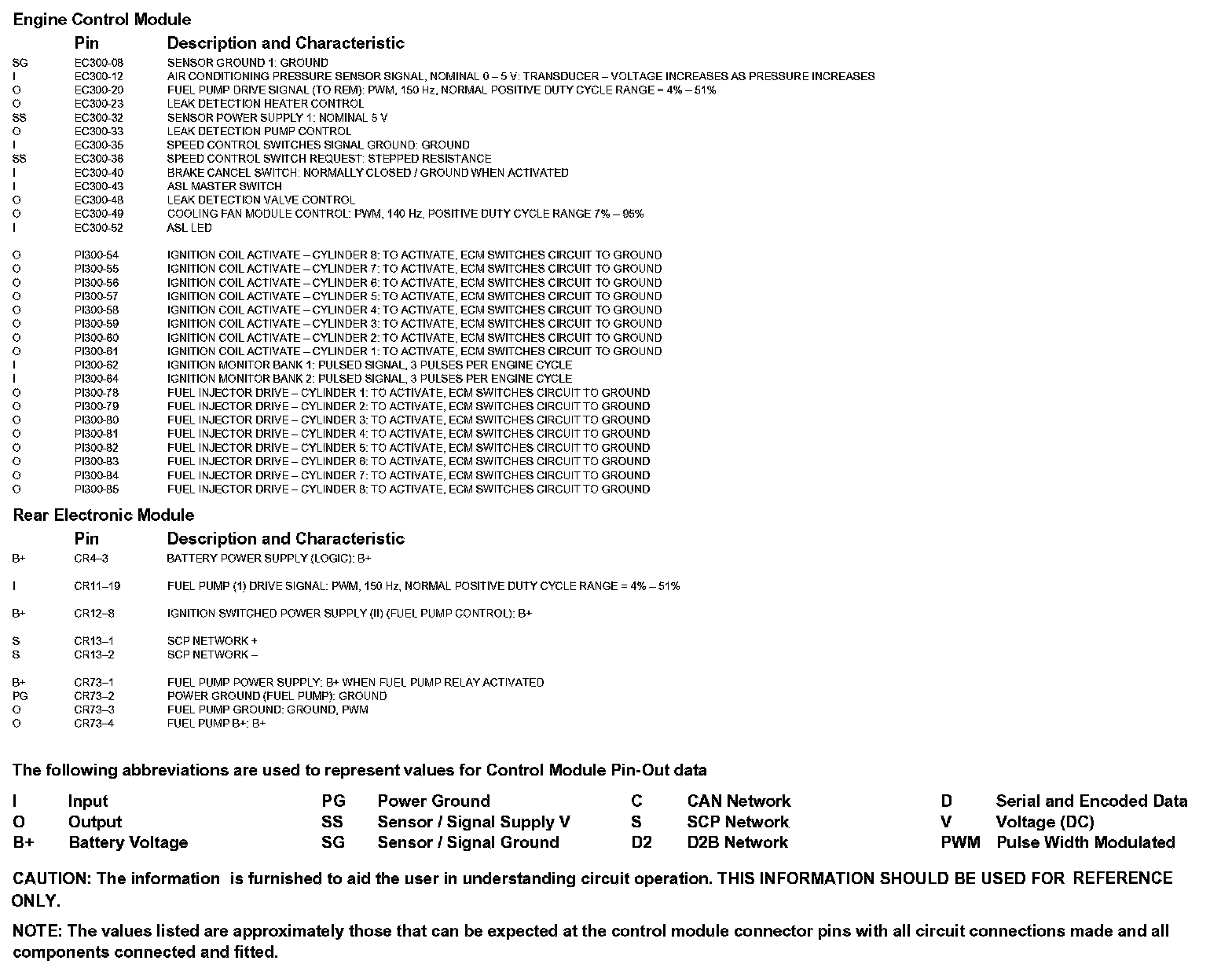

Diagram Data Sheet 03.4 (Part-1):



Diagram Data Sheet 03.4 (Part-2):
