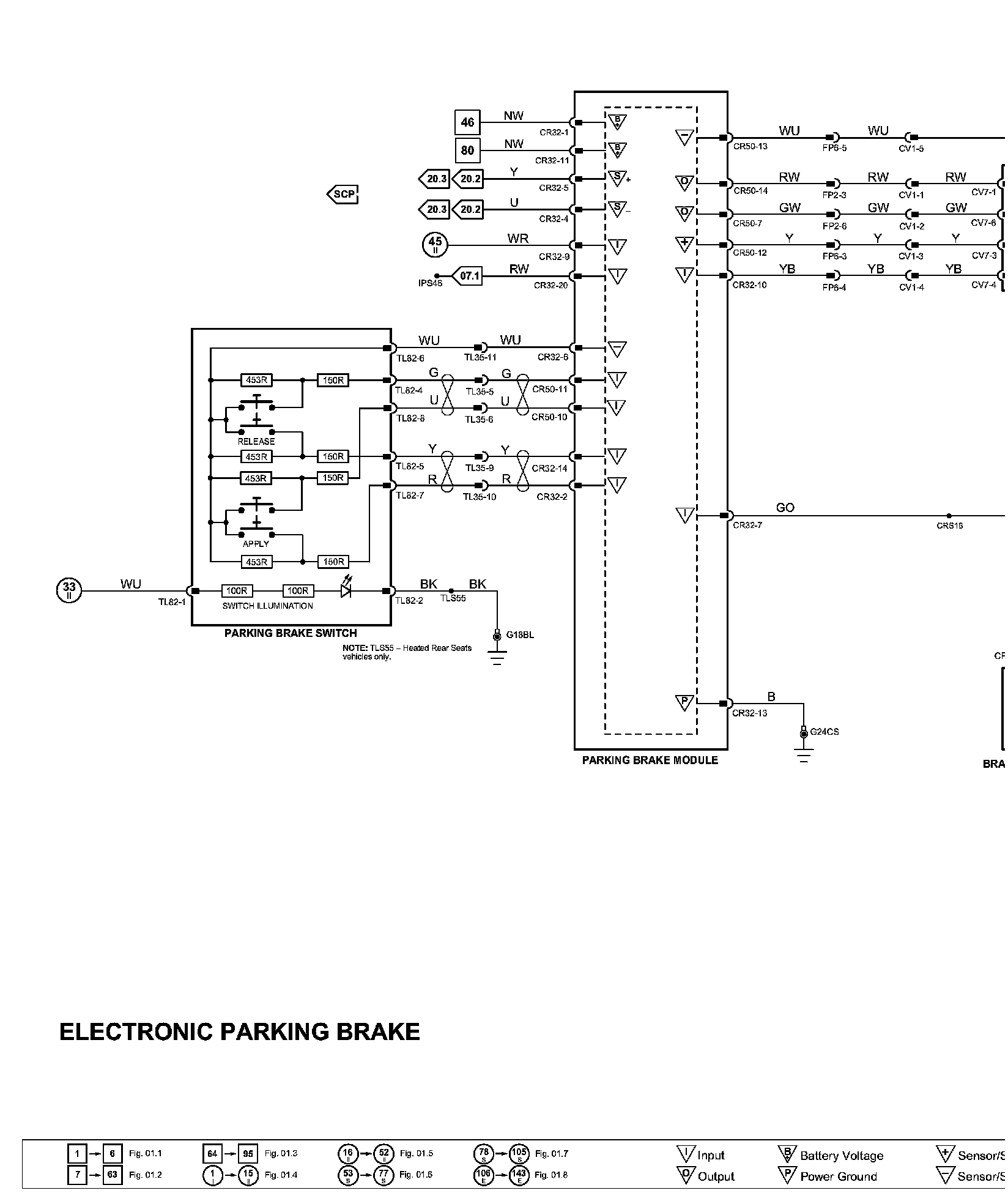

Fig. 05.2 (Electronic Parking Brake; Variable Assist Power Steering)

2�>/Diagram Figure 05.2:

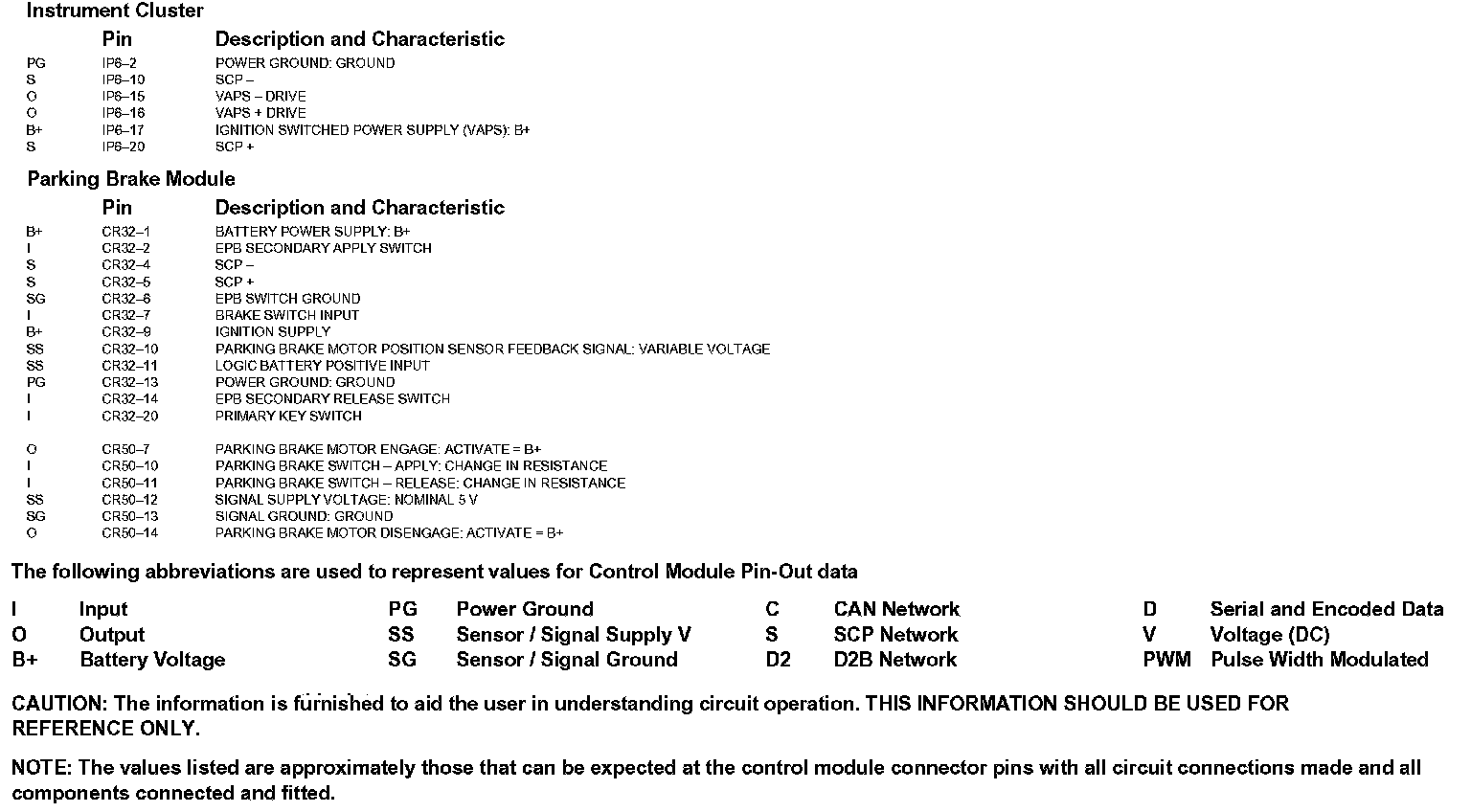

Diagram Data Sheet 05.2 (Part-1):

Diagram Data Sheet 05.2 (Part-2):
