Home >> Jaguar >> 2007 >> XJ (X350) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Figure Number >> Fig. 06.3 (Rear Climate Control)

Fig. 06.3 (Rear Climate Control)

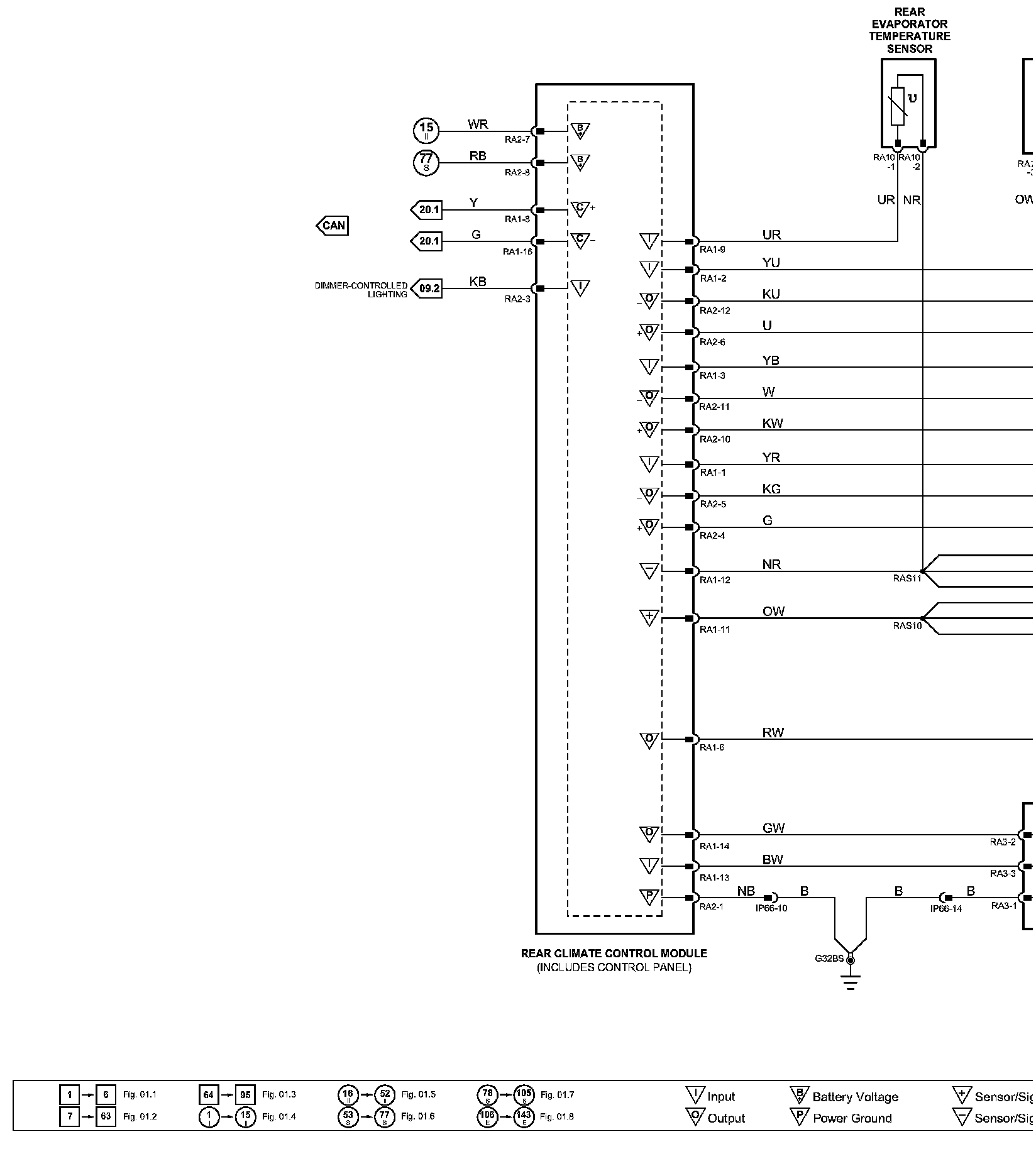

O��9Diagram Figure 06.3:

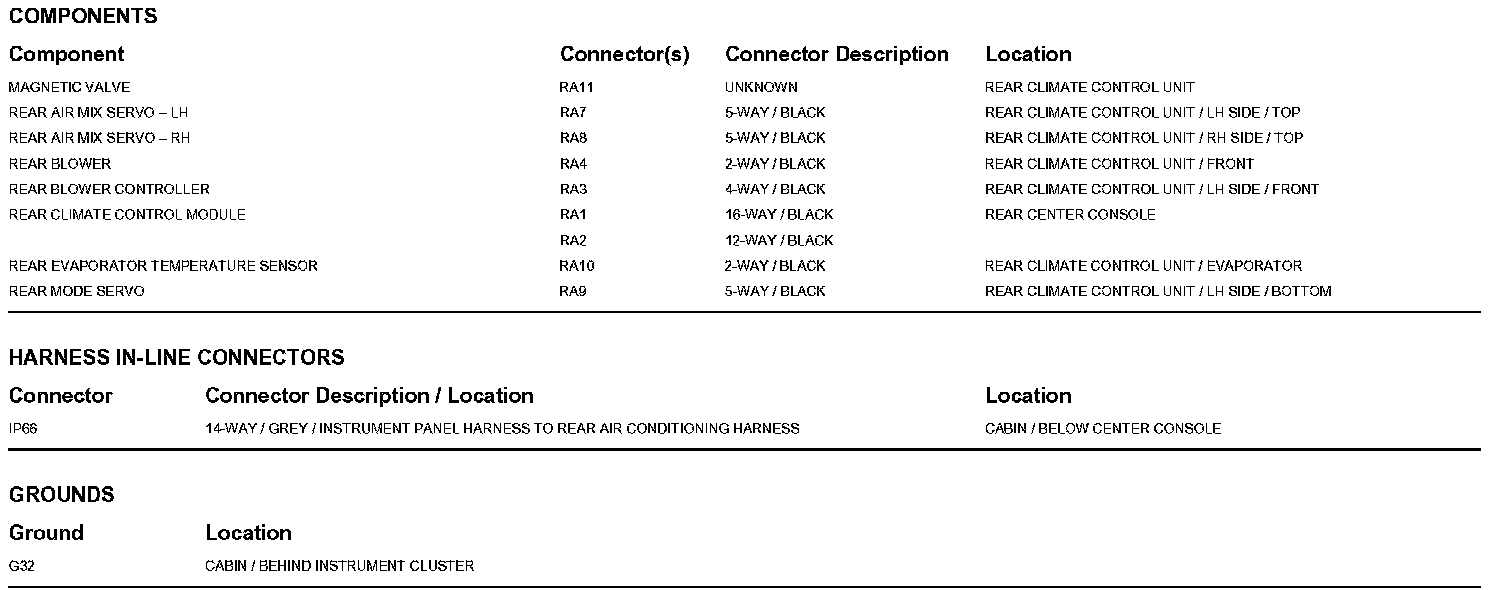

Diagram Data Sheet 06.3 (Part-1):

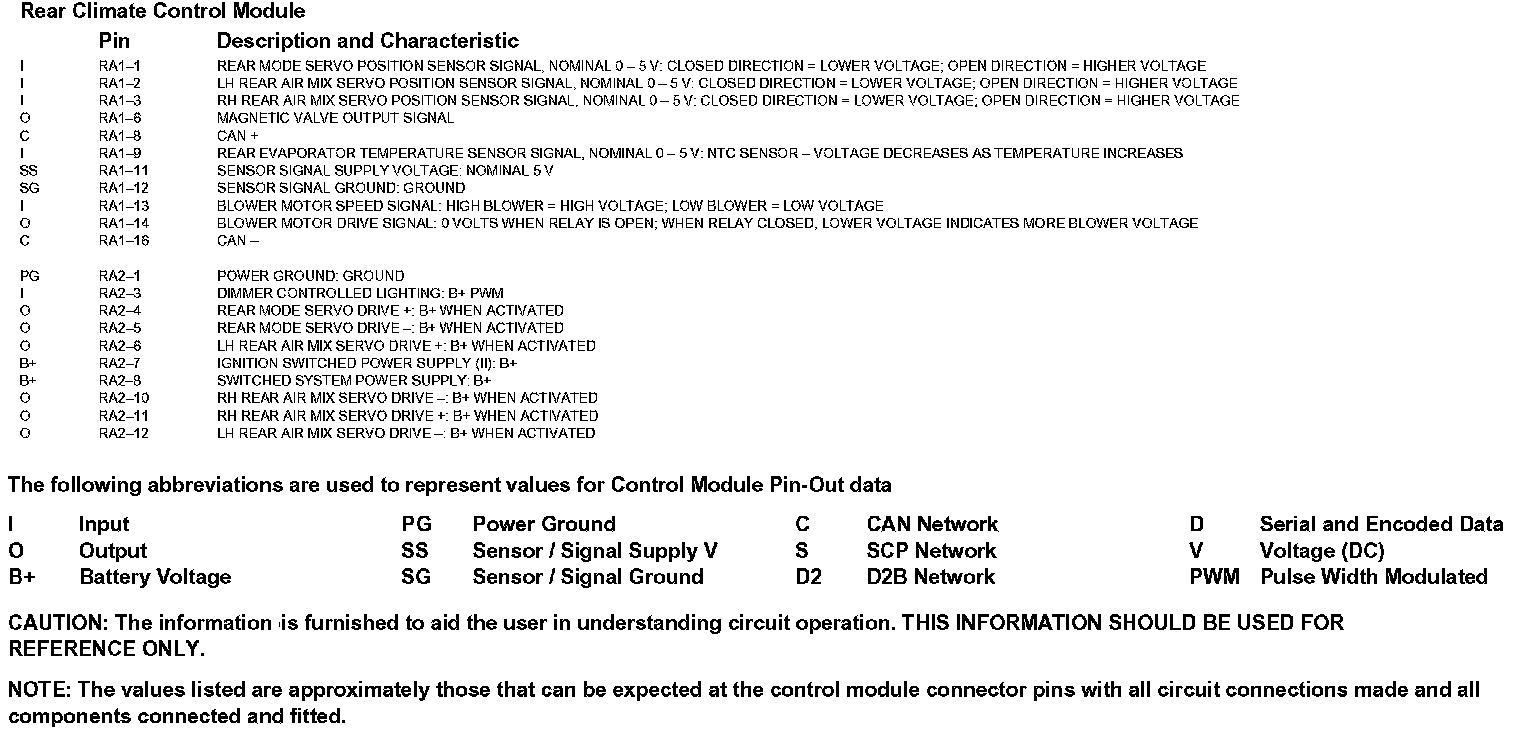

Diagram Data Sheet 06.3 (Part-2):
