Fig. 11.10 (Rear Seat Heaters)

��LDiagram Figure 11.10:

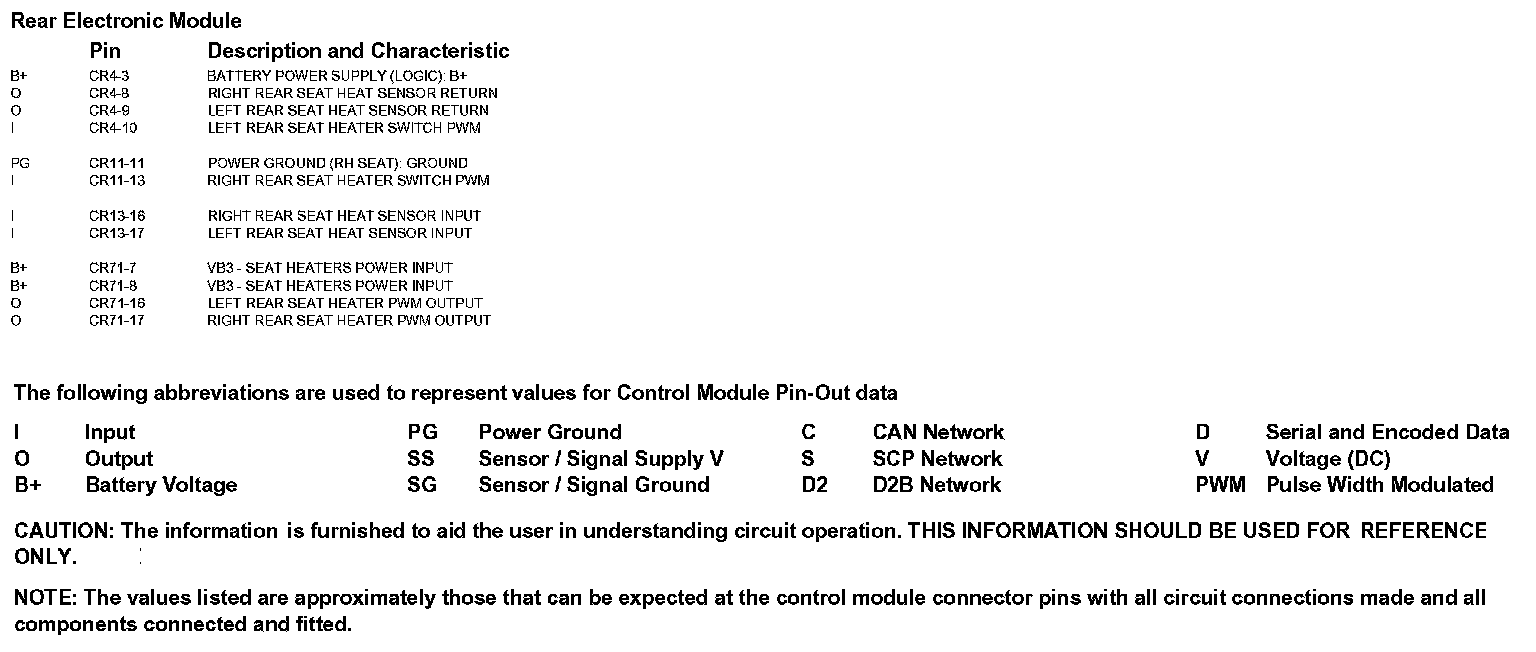

Diagram Data Sheet 11.10 (Part-1):

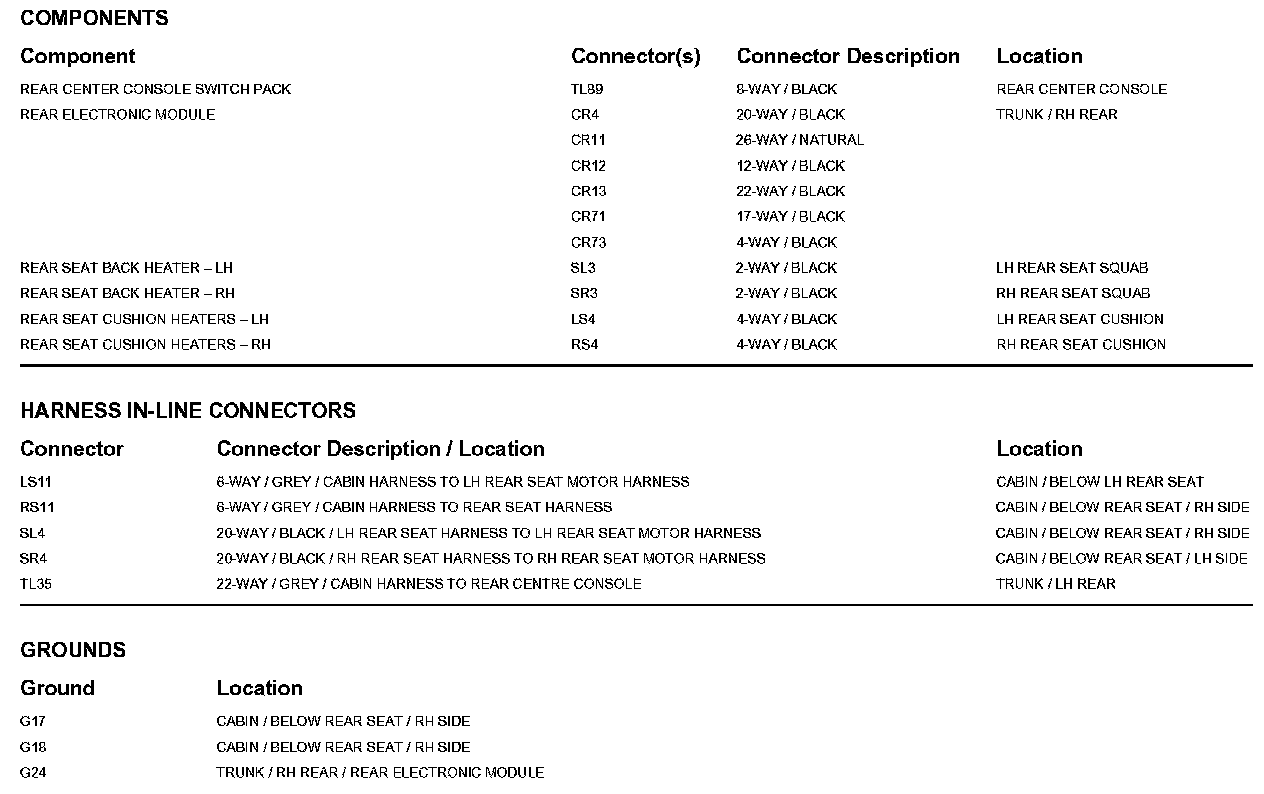

Diagram Data Sheet 11.10 (Part-2):
