Fig. 18.1 (Parking Aid System)

�C�>Diagram Figure 18.1:

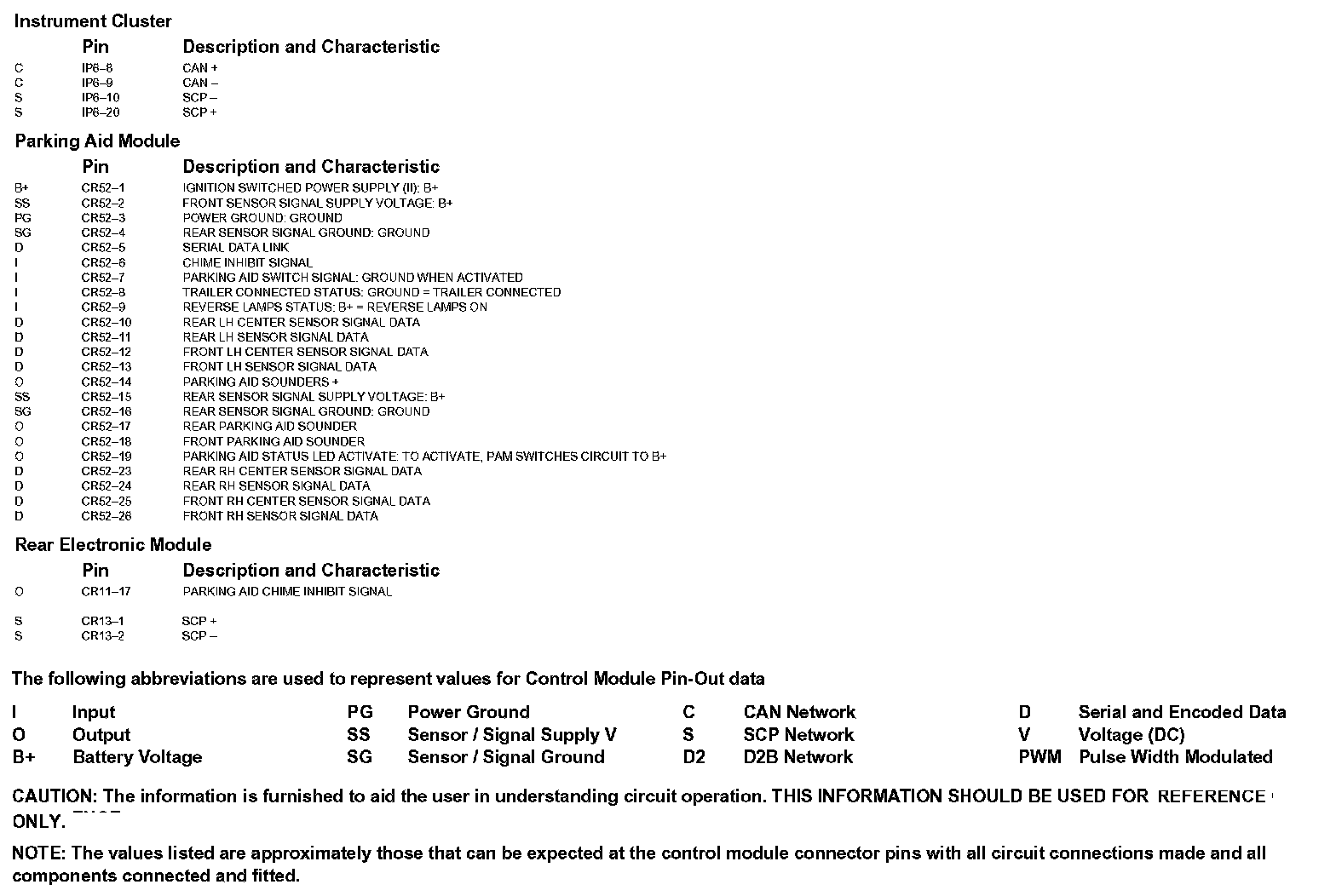

Diagram Data Sheet 18.1 (Part-1):



Diagram Data Sheet 18.1 (Part-2):
