Central Control Module: Service and Repair

Information and Entertainment Module (86.53.48)

Removal
1. Disconnect the battery ground cable.

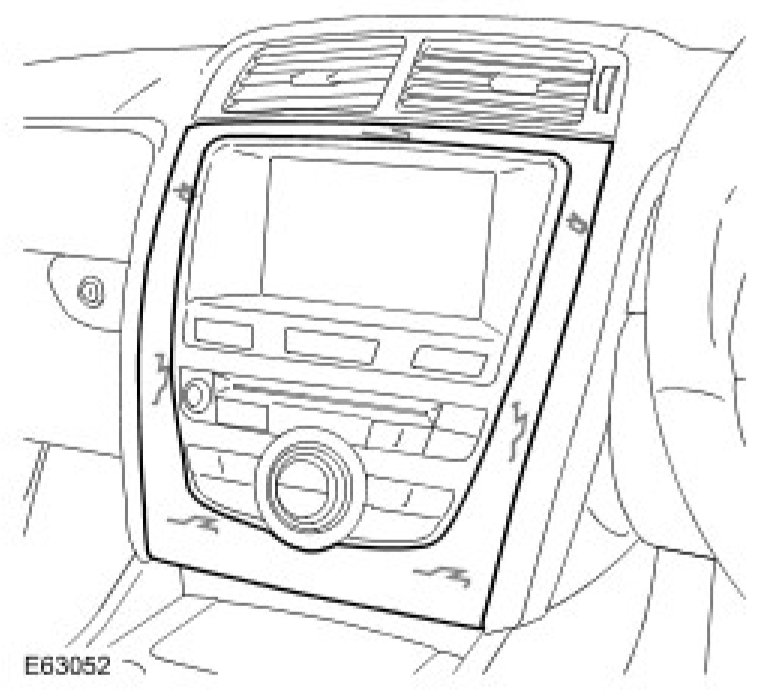

2. Remove the instrument panel center reinforcement trim panel.
- Release from the 5 clips.

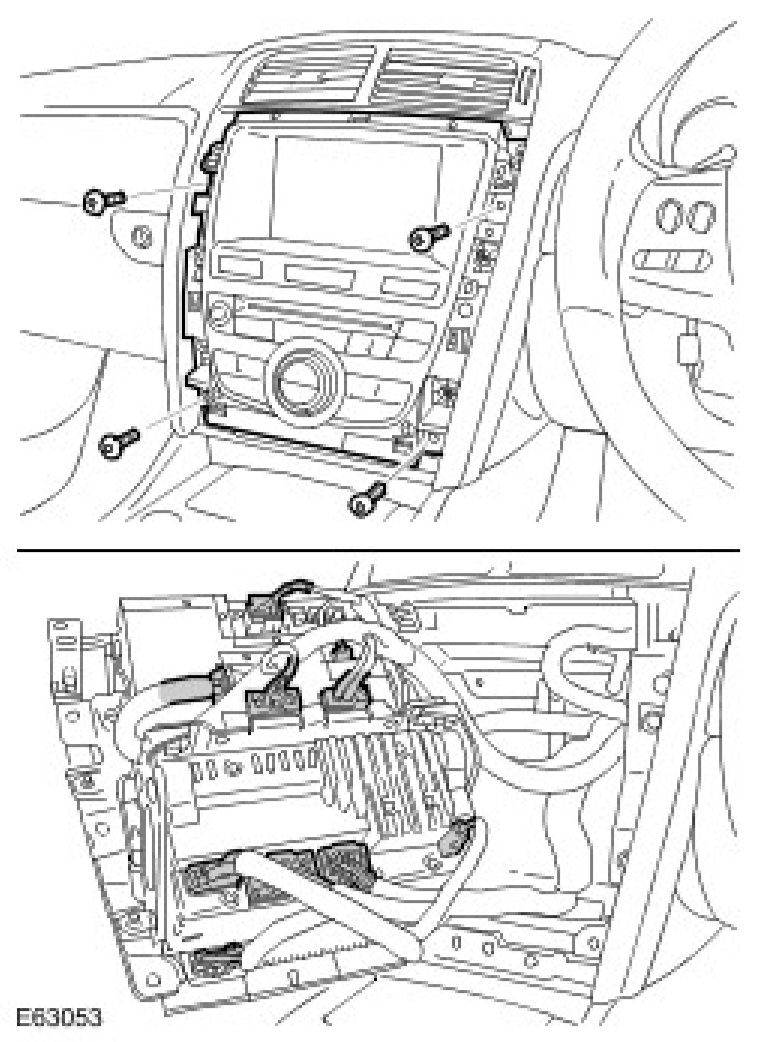

3. Release the navigation system module bracket.
- Remove the 4 Torx screws.
- Release the assembly.

CAUTION: Protect the surrounding trim from damage when changing the component.

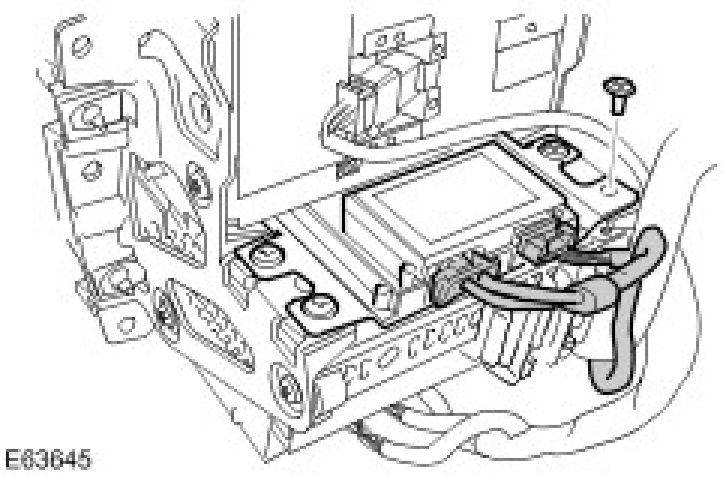

4. Remove the information and entertainment module.
- Remove the 4 Torx bolts.
- Disconnect the 2 electrical connectors.







Installation
1. Install the information and entertainment module.
- Tighten the Torx bolts to 6 Nm (4 lb.ft).
- Connect the electrical connectors.
2. Install the navigation system module bracket.
- Tighten the Torx screws.
3. Install the instrument panel center reinforcement trim panel.
- Align the pegs and secure with the clips.
4. Connect the battery ground cable.
5. Connect WDS to the vehicle and configure a new module.
