Home >> Jaguar >> 2007 >> XK (X150) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> DS001 - DS040 >> DS007

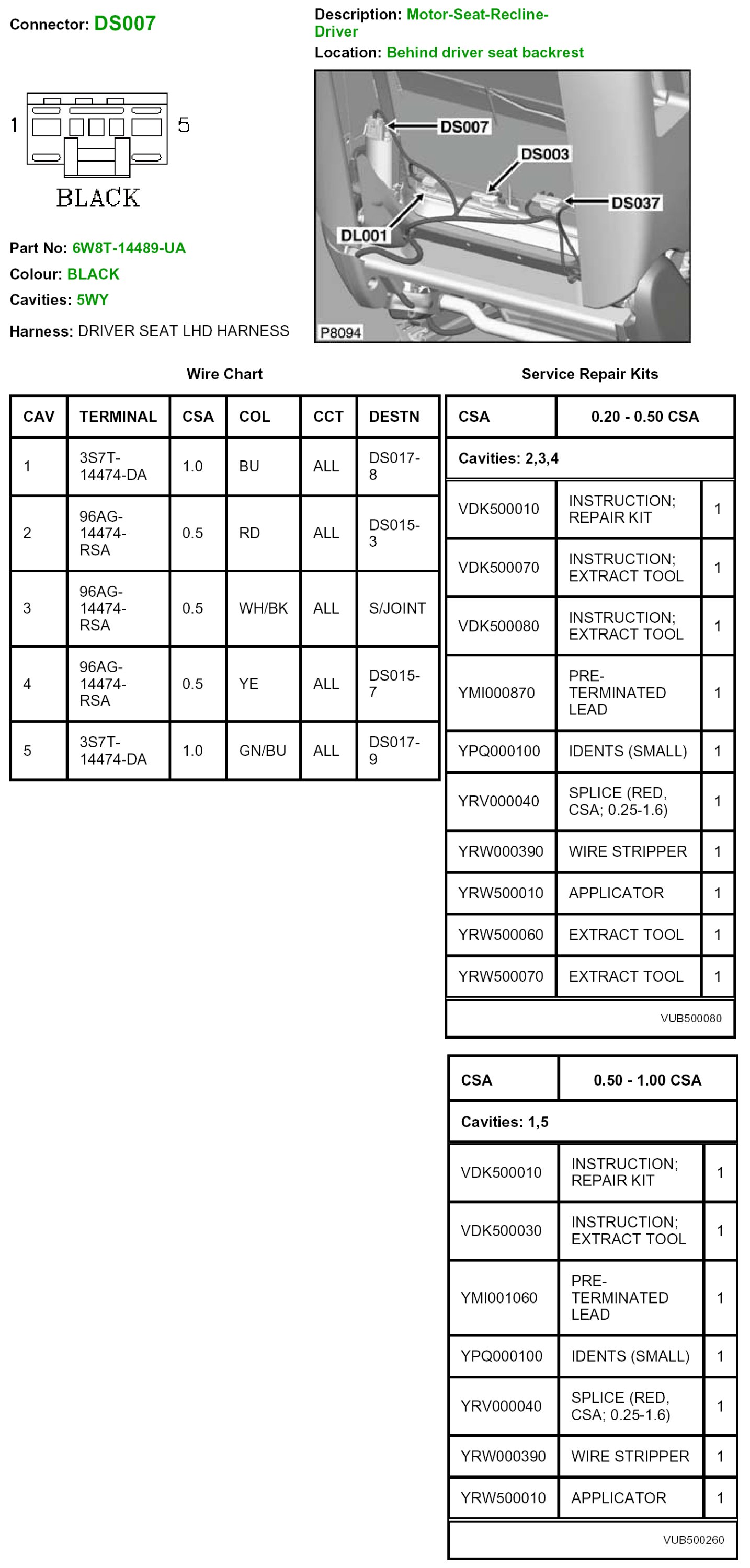

DS007

DS007:
