Home >> Jaguar >> 2007 >> XK (X150) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> FL002 - FL081 >> FL081

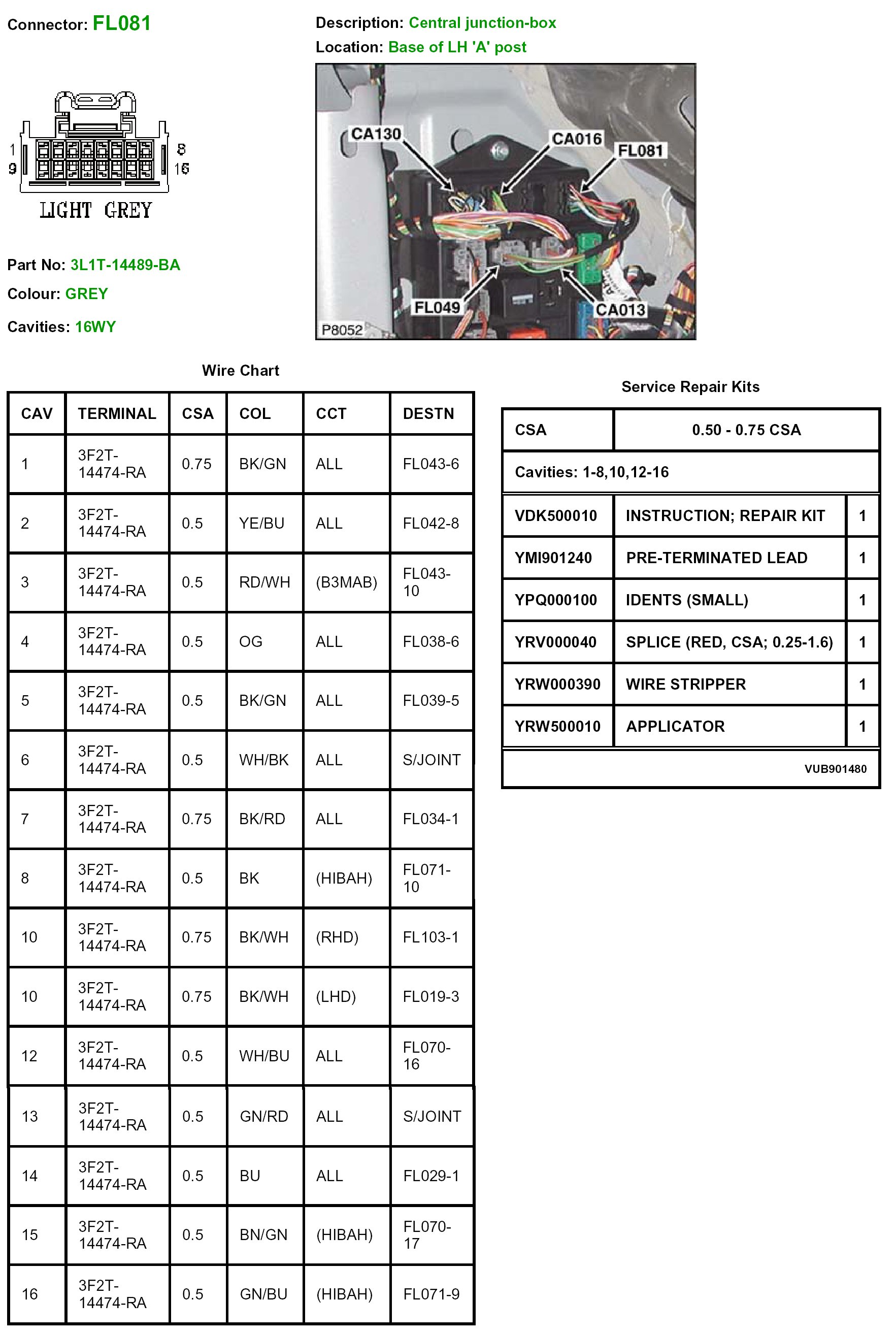

FL081

FL081:
