Home >> Jaguar >> 2007 >> XK (X150) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> FR001 - FR081 >> FR068

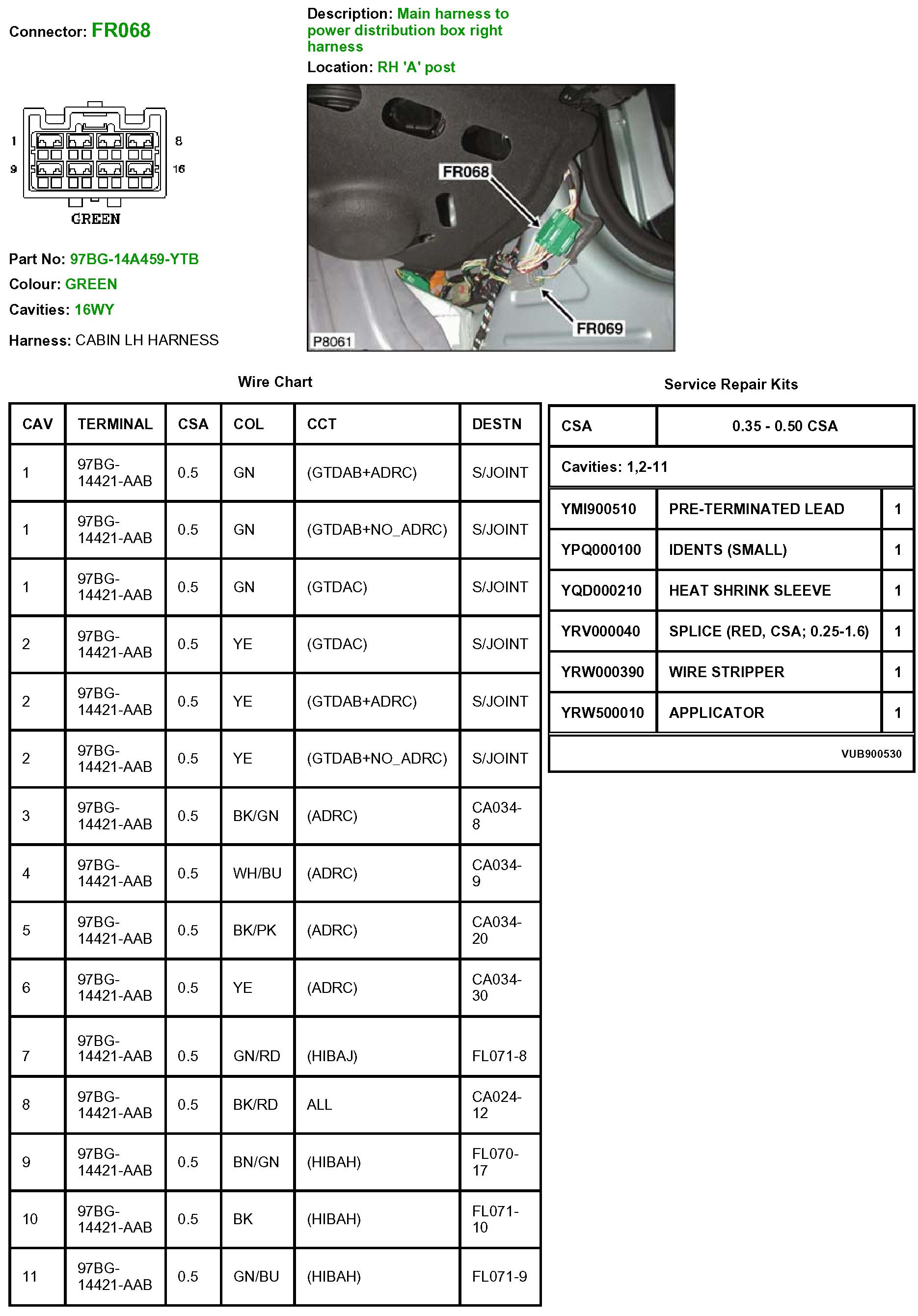

FR068

FR068:



FR068:
