Home >> Jaguar >> 2007 >> XK (X150) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> G10AL - G19BR >> G12AL

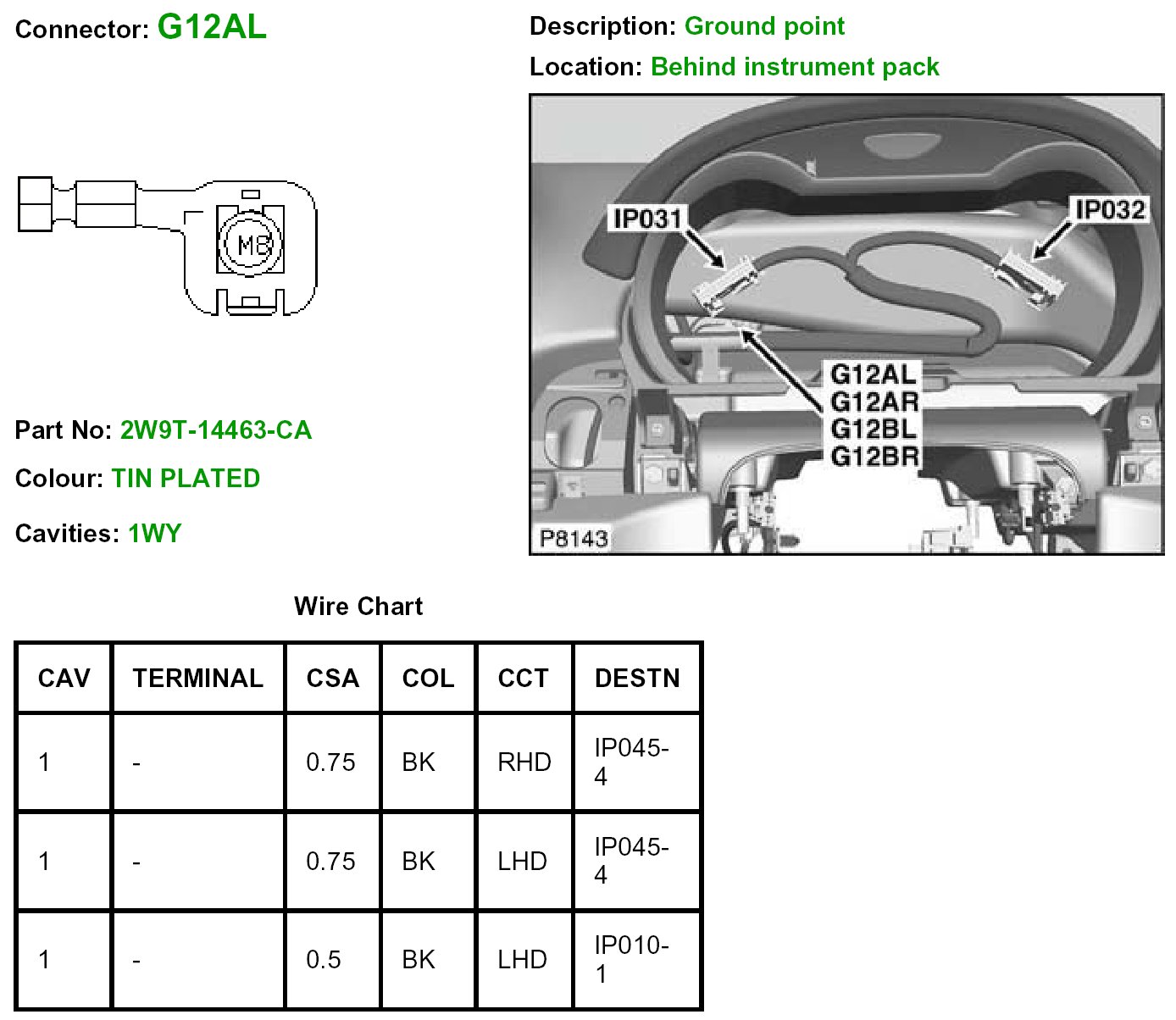

G12AL

G12AL:
