Home >> Jaguar >> 2007 >> XK (X150) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> TL001 - TLU01 >> TL012

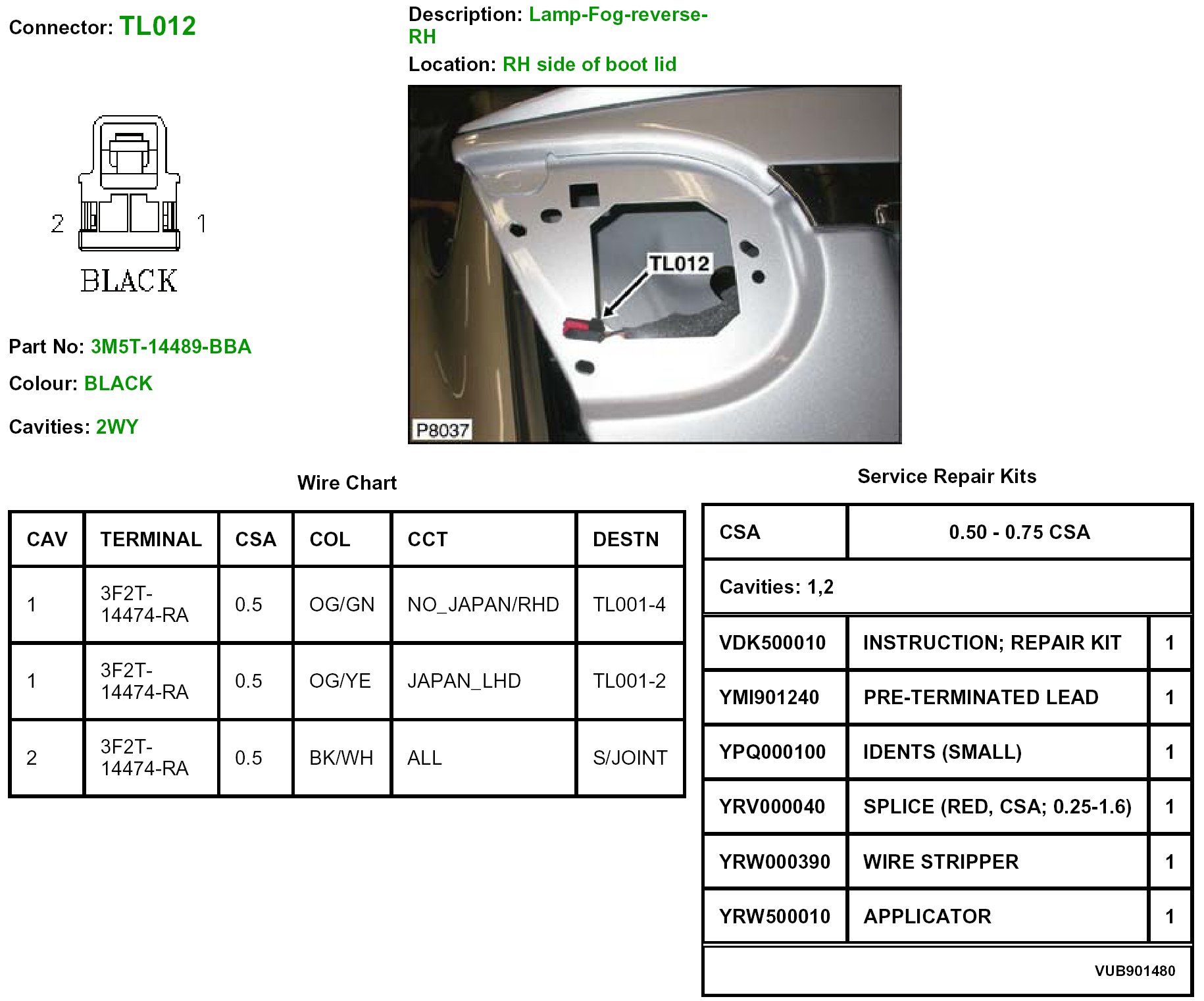

TL012

TL012:
