Operation CHARM: Car repair manuals for everyone.
Home >> Jaguar >> 2007 >> XK (X150) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Connectors >> CA101 - CA165 >> CA117

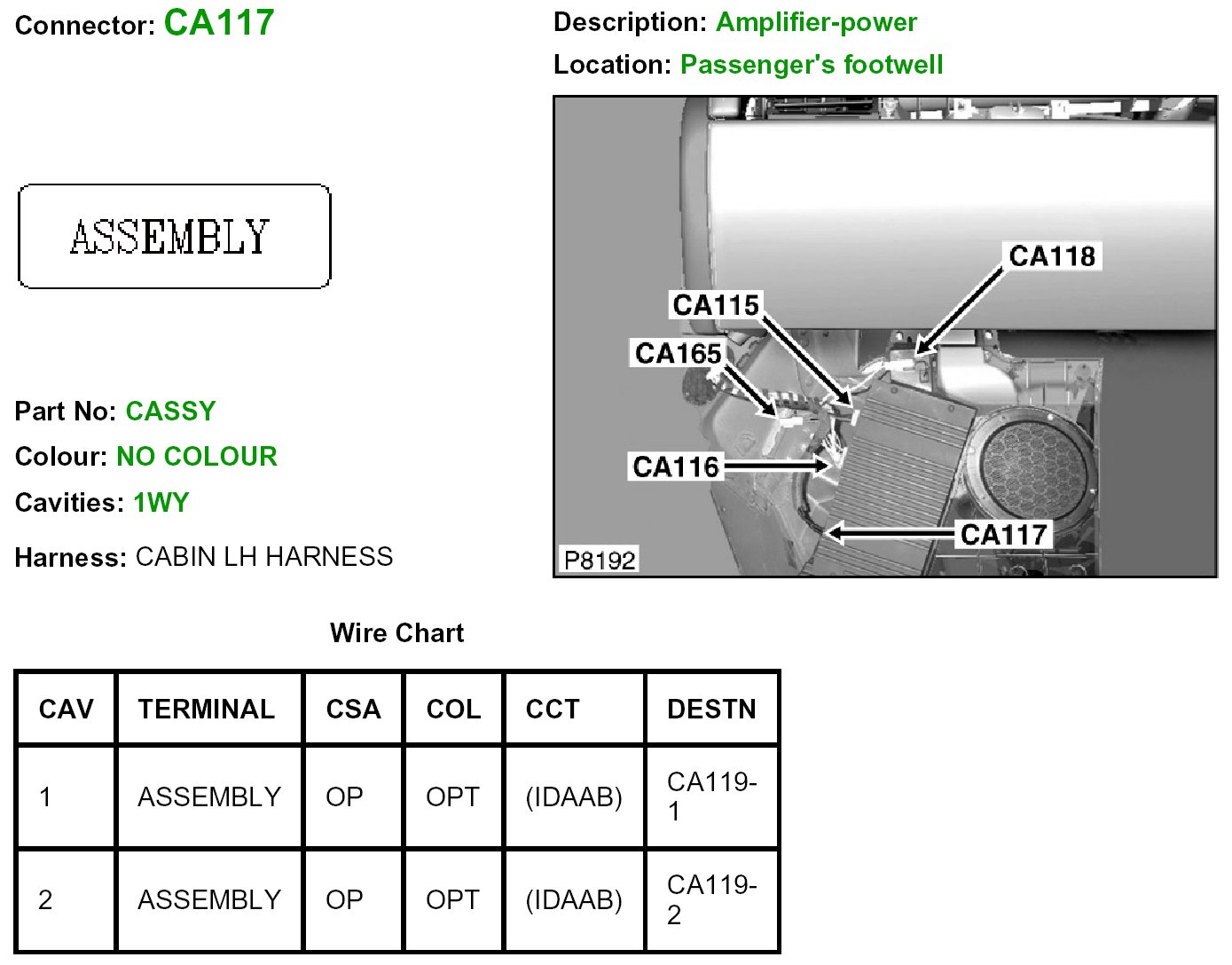

CA117

CA117:
