Home >> Jaguar >> 2007 >> XK (X150) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Connectors >> DD001 - DD016 >> DD005

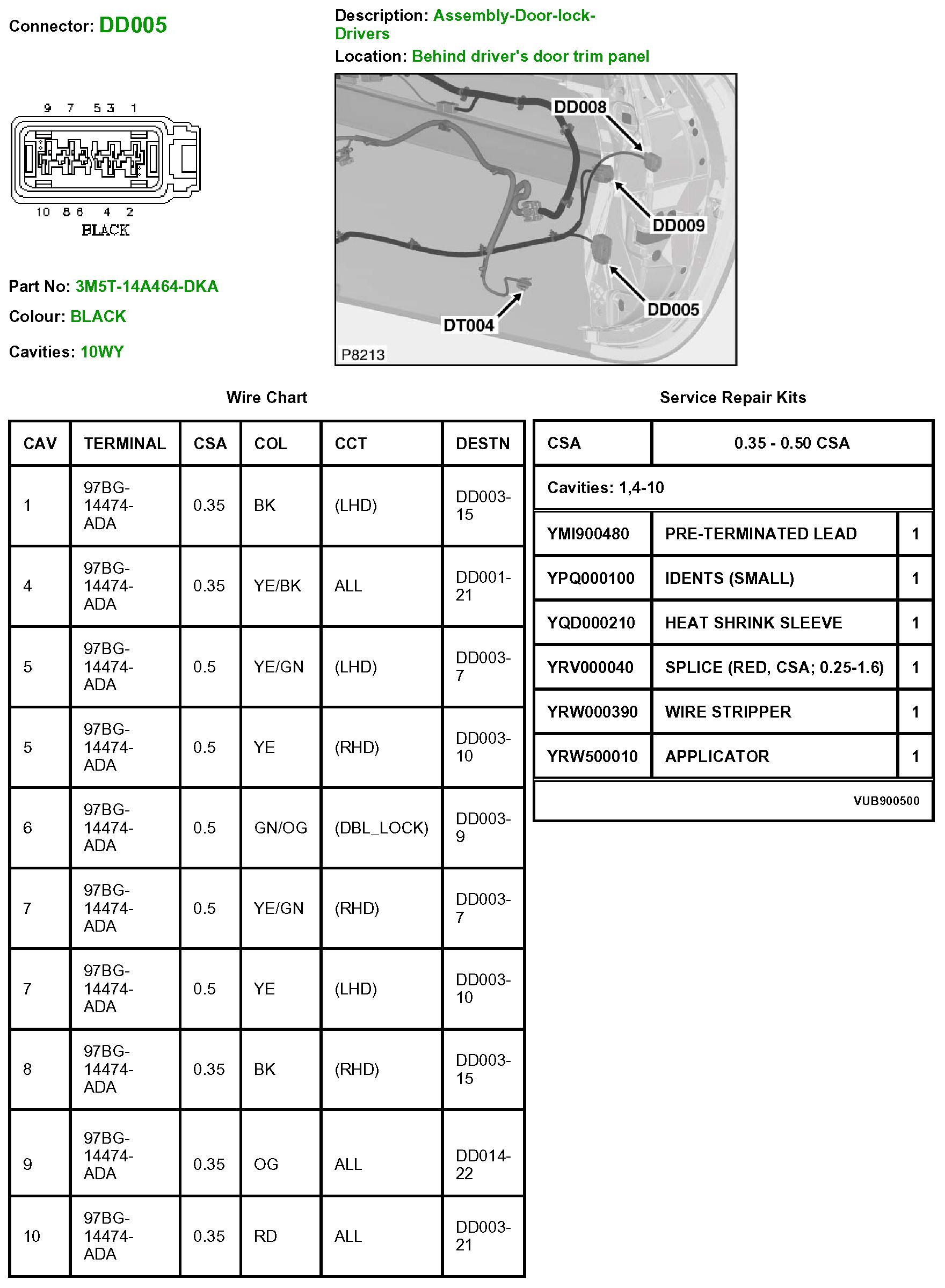

DD005

DD005:
