Home >> Jaguar >> 2007 >> XK (X150) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Connectors >> FB001 - FB013 >> FB008

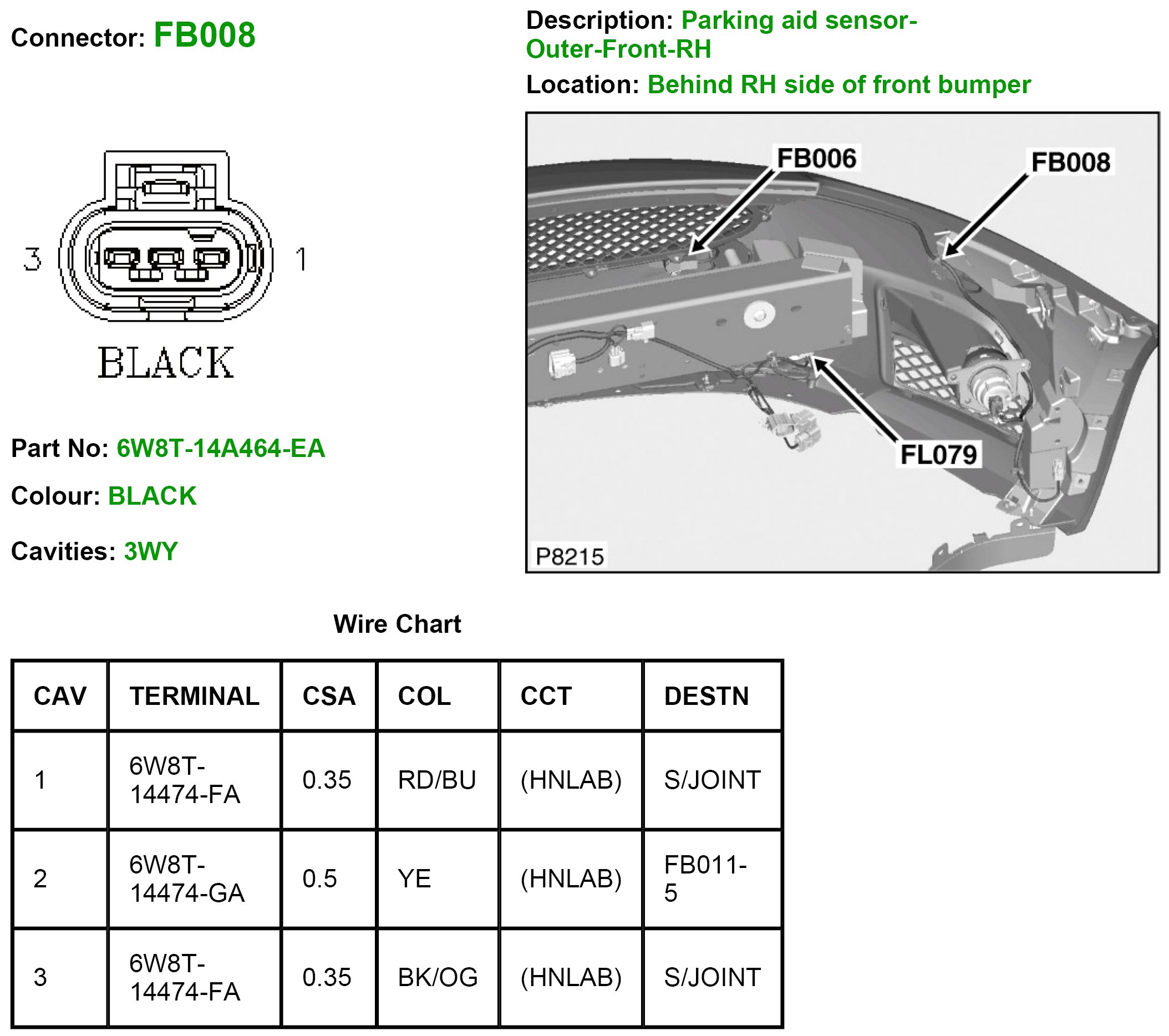

FB008

FB008:
