Home >> Jaguar >> 2007 >> XK (X150) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Connectors >> G01AL - G09BR >> G05AS

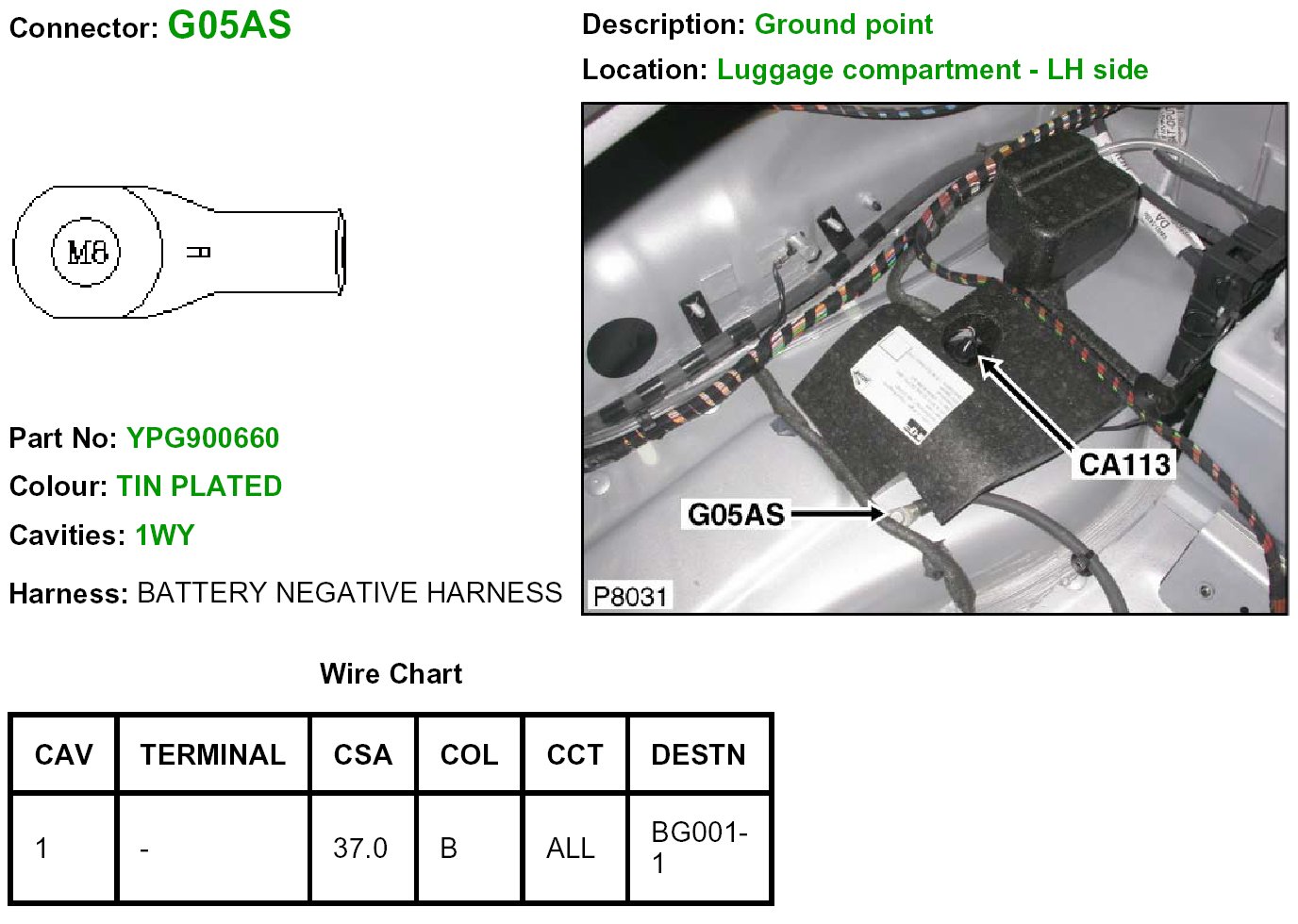

G05AS

G05AS:
