Operation CHARM: Car repair manuals for everyone.
Home >> Jaguar >> 2007 >> XK (X150) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Connectors >> G01AL - G09BR >> G09BR

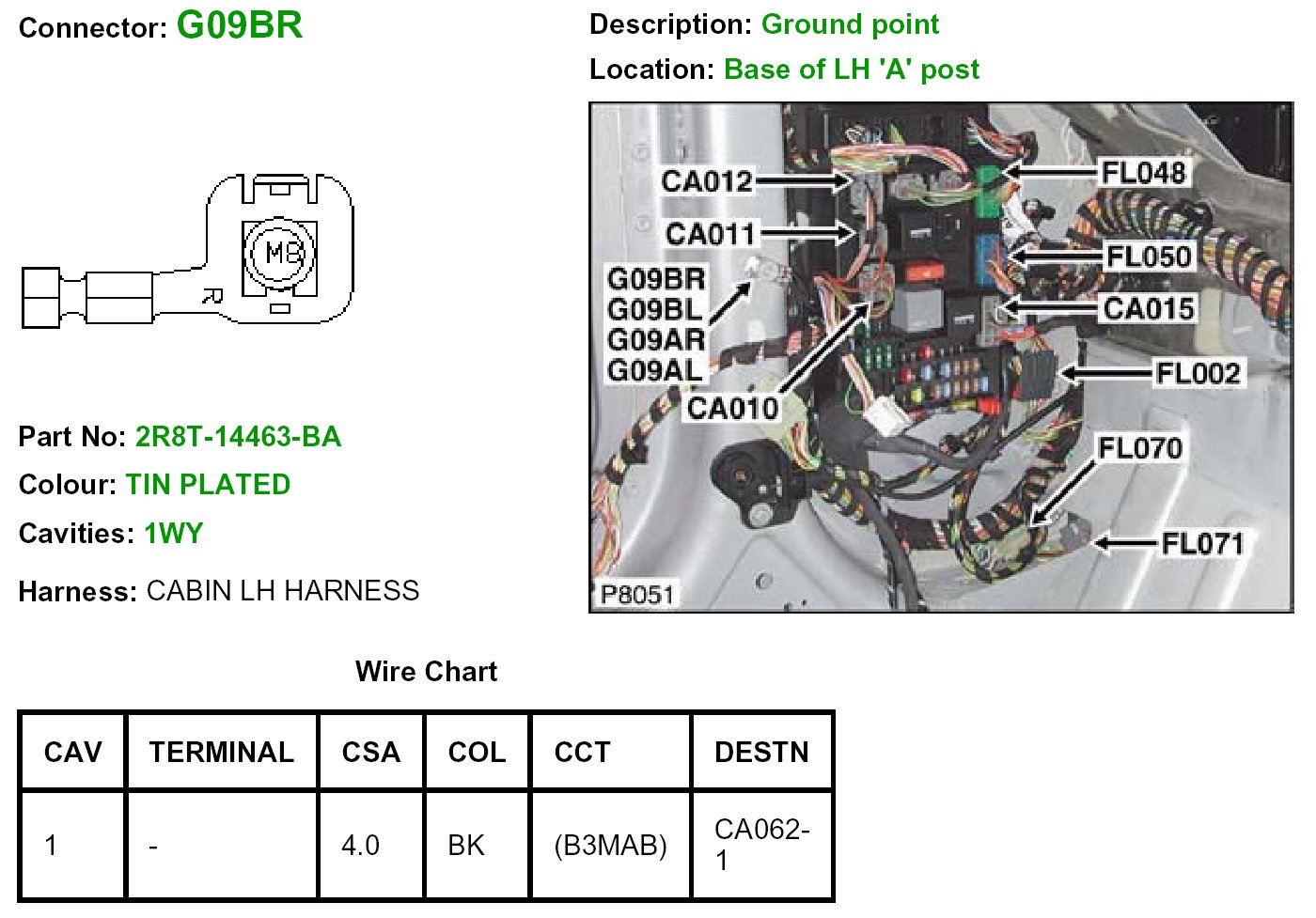

G09BR

G09BR:
