Home >> Jaguar >> 2007 >> XK (X150) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Connectors >> G20AL - G28BR >> G24BL

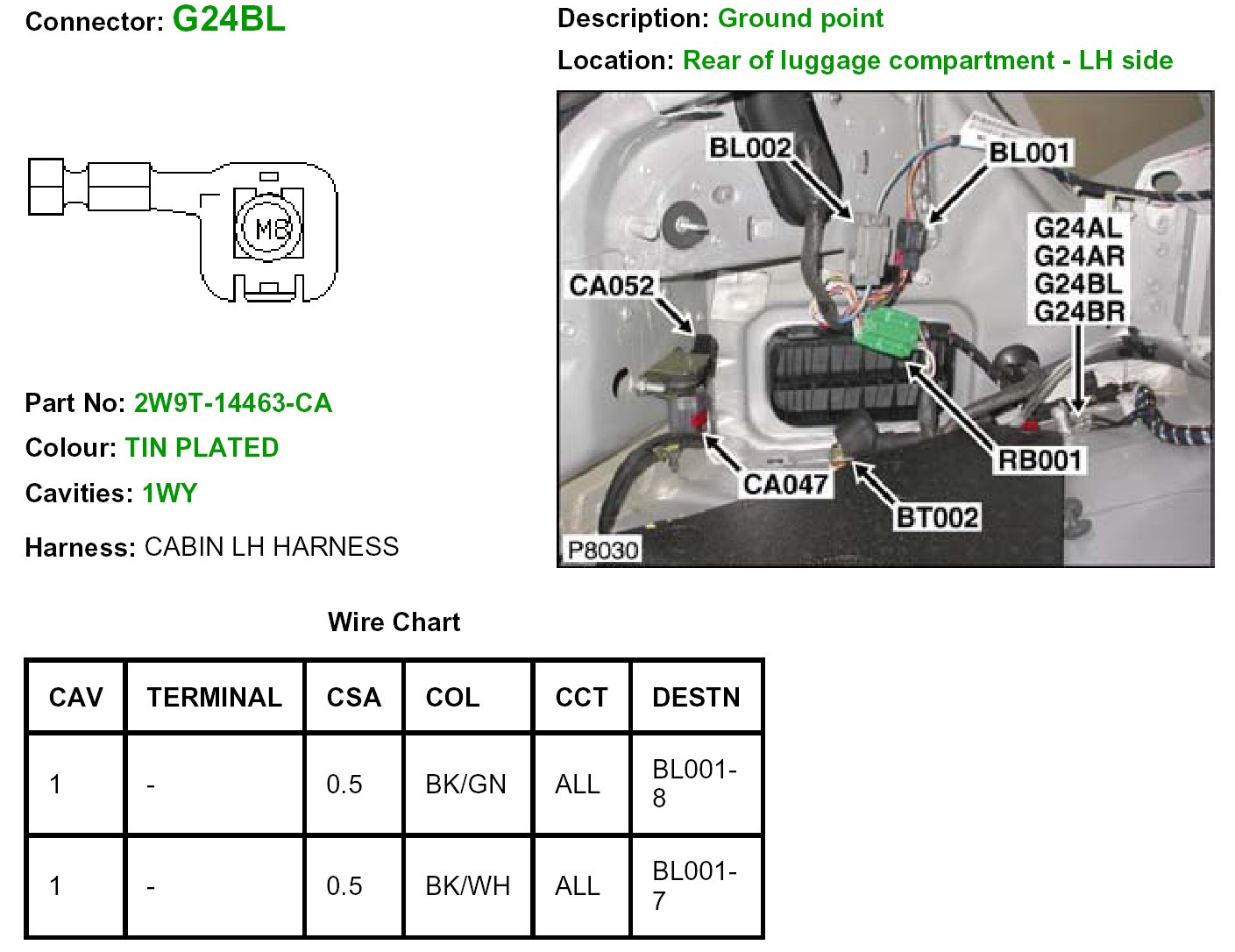

G24BL

G24BL:
