Home >> Jaguar >> 2007 >> XK (X150) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Connectors >> PI002 - PI059 >> PI040AL

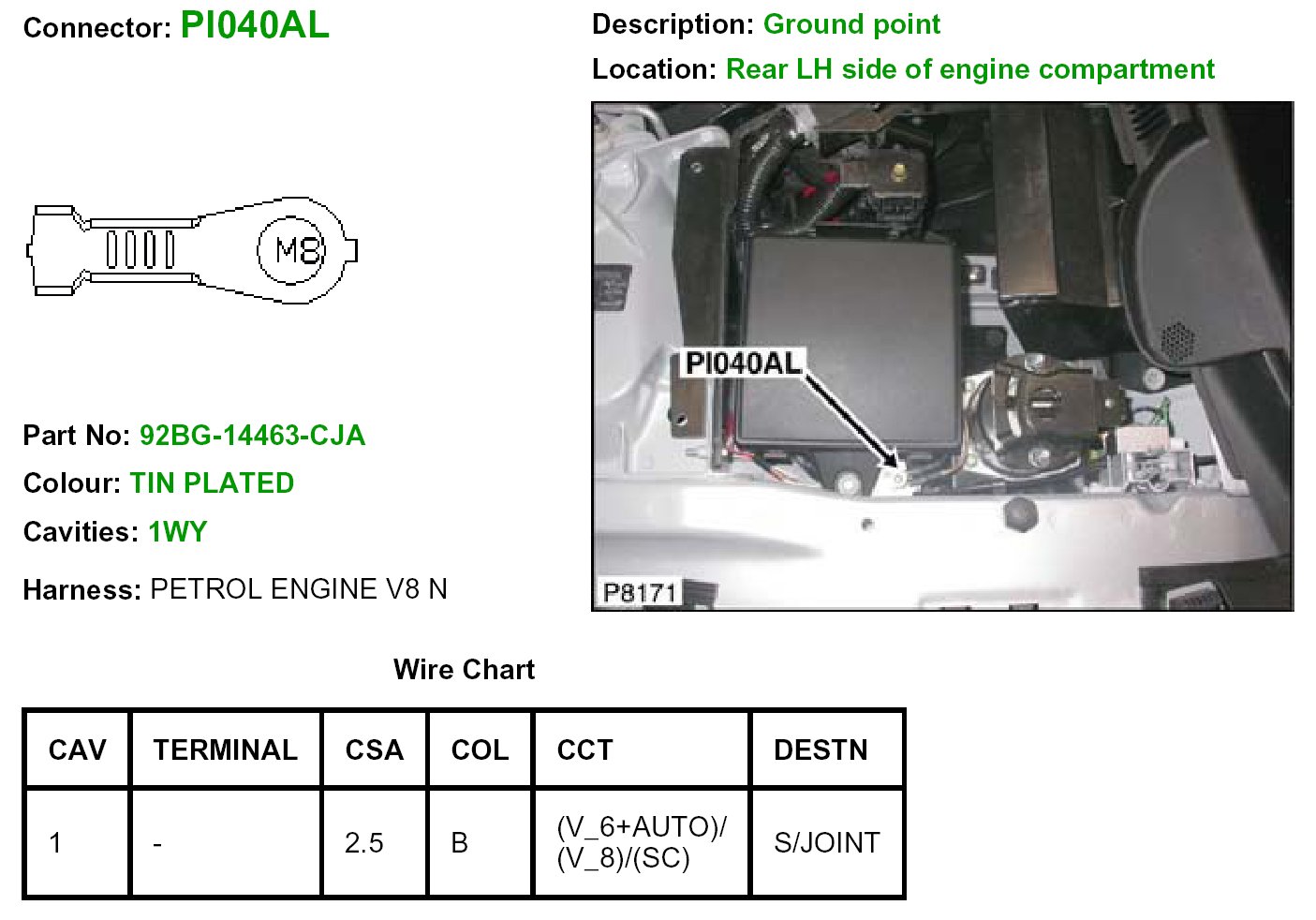

PI040AL

PI040AL:
